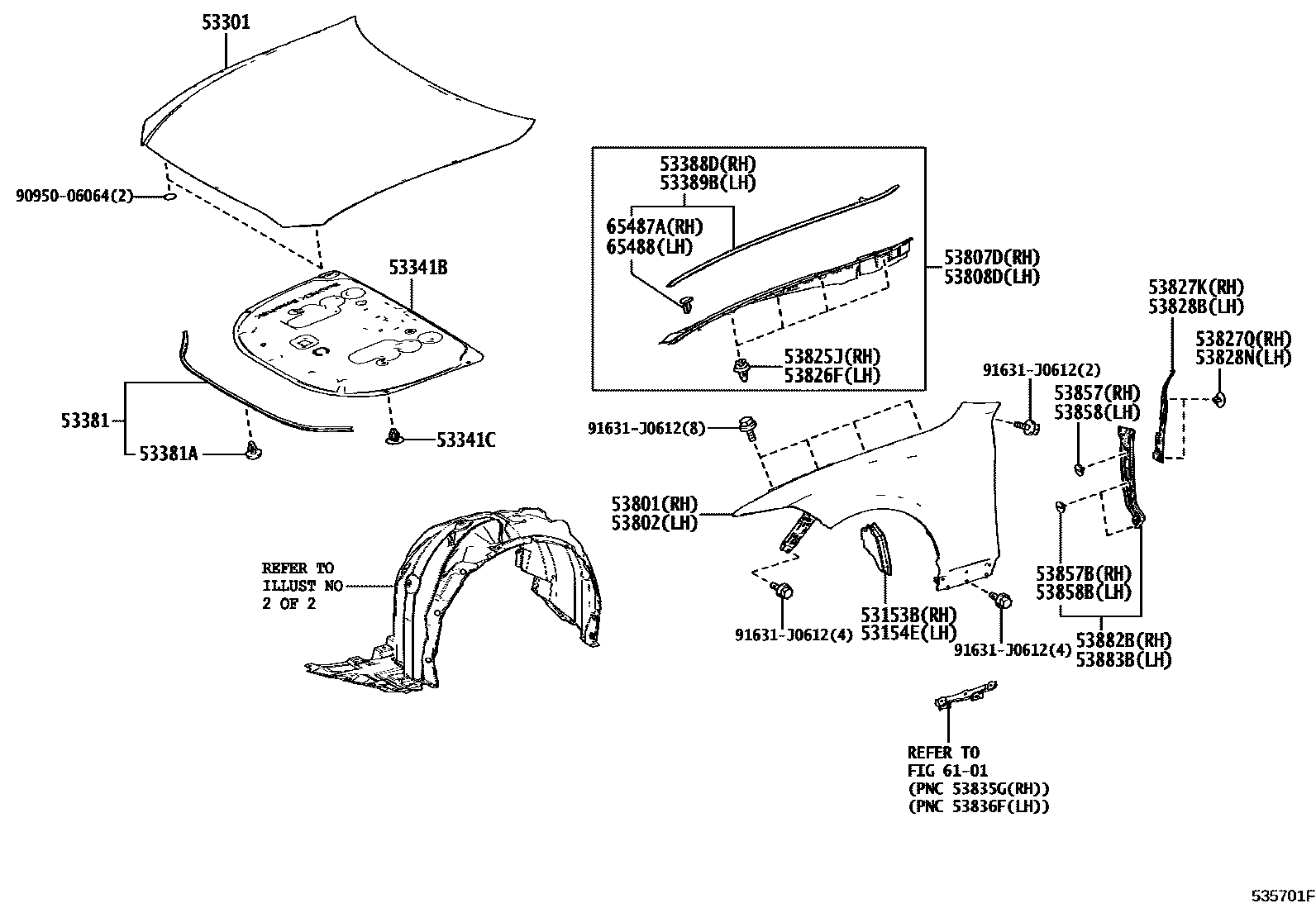

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-30330iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-30320iARS220,AZSH2#,GWS224201806-202204

53301HOOD SUB-ASSY

main53301-30530iARS220,AZSH2#,GWS224201806-202204

53341BINSULATOR, HOOD

main53341-30350iAZSH2#,GWS224201806-202204

main53341-30370iARS220..RSADV201806-202204

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iARS220,AZSH2#,GWS224201806-202204

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30270iARS220,AZSH2#,GWS224201806-202204

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iARS220,AZSH2#,GWS224201806-202204

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-30110iARS220,AZSH21..RS,RSB201806-202204

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-30100iARS220,AZSH2#,GWS224201806-202204

53801FENDER SUB-ASSY, FRONT RH

main53801-30A80iARS220,AZSH2#,GWS224201806-202204

53802FENDER SUB-ASSY, FRONT LH

main53802-30A70iARS220,AZSH2#,GWS224201806-202204

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-30151iARS220,AZSH2#,GWS224201806-202204

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-30151iARS220,AZSH2#,GWS224201806-202204

53825JCLIP, FRONT FENDER PROTECTOR

main90467-10162iARS220,AZSH2#,GWS224201806-202204

53826FCLIP, FRONT FENDER PROTECTOR

main90467-10162iARS220,AZSH2#,GWS224201806-202204

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30080iARS220,AZSH2#,GWS224201806-202205

sub53827-30130

main53827-30130iARS220,AZSH21..RS,RSB202206

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iARS220,AZSH2#,GWS224201806-202204

BLACK

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30090iARS220,AZSH2#,GWS224201806-202205

sub53828-30140

main53828-30140iARS220,AZSH21..RS,RSB202206

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iARS220,AZSH2#,GWS224201806-202204

BLACK

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iARS220,AZSH2#,GWS224201806-202204

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-28030iARS220,AZSH21..RS,RSB201806-202204

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-28030iARS220,AZSH21..RS,RSB201806-202204

53882BSEAL, FRONT FENDER, RH

main53882-30090iARS220,AZSH21..RS,RSB201806-202204

53883BSEAL, FRONT FENDER, LH

main53883-30060iARS220,AZSH2#,GWS224201806-202204

6101

65487ACLIP, CORNER PROTECTOR

main65487-60010iARS220,AZSH2#,GWS224201806-202204

65488CLIP, CORNER PROTECTOR

main65487-60010iARS220,AZSH2#,GWS224201806-202204

9095006064

main90950-06064

91631J0612

main91631-J0612

30 parts on this diagram · 2 diagrams in section
