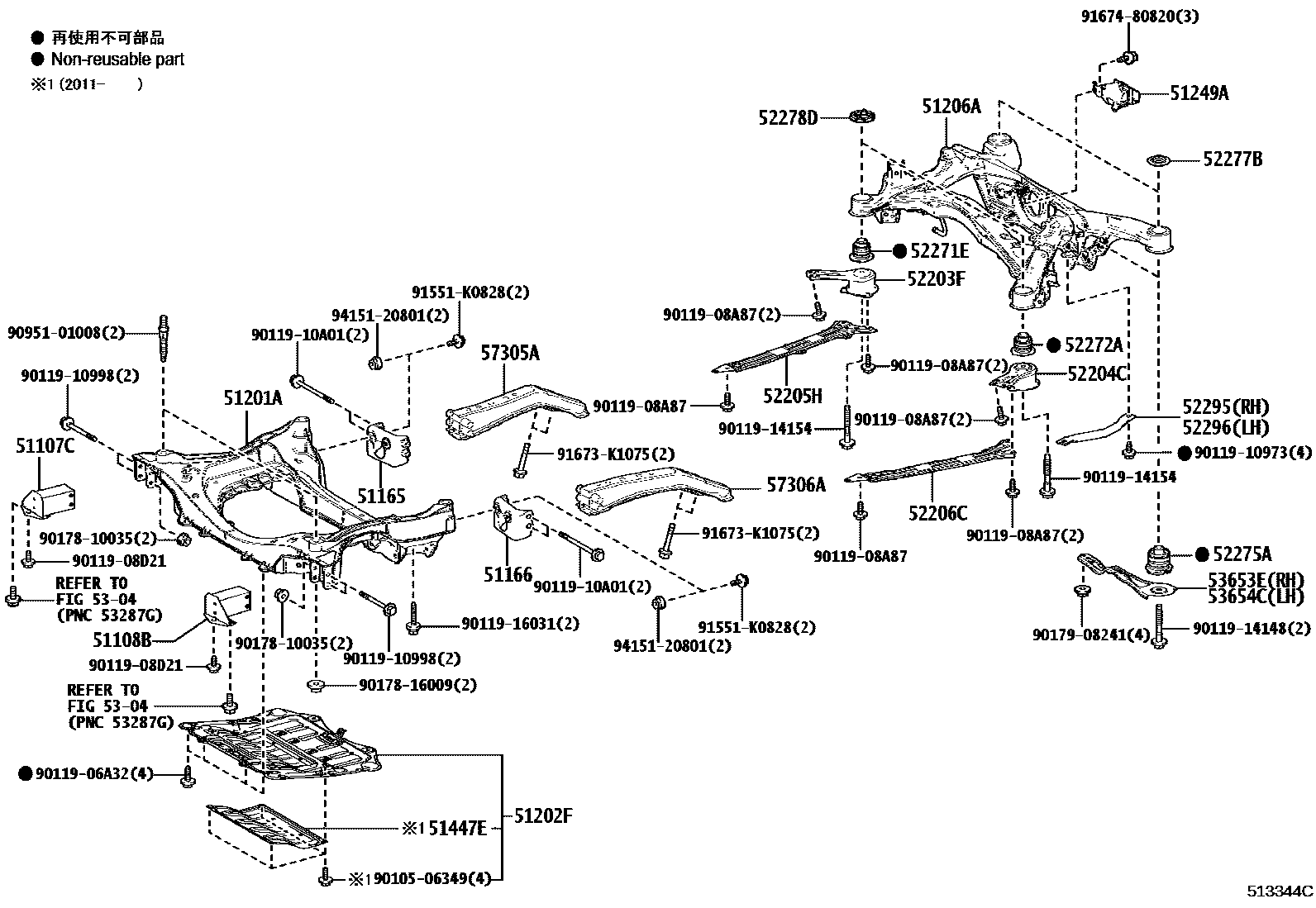

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0003 1��������������� 0005 1��������������� 0006 1��������������� 0007 1�������� 0008 1��������

51107CRAIL SUB-ASSY, REAR FRAME, RH

main51107-30040iARS220,AZSH21..RS,RSB202011

51108BRAIL SUB-ASSY, REAR FRAME, LH

main51108-30030iARS220,AZSH2#,GWS224201806-202010

51165REINFORCEMENT, SIDE RAIL, NO.2 RH

main51165-30010iARS220,AZSH20,GWS224201806-202010

51166REINFORCEMENT, SIDE RAIL, NO.2 LH

main51166-30010iARS220..RS202011

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-30150iARS220,AZSH20,GWS224201806-202010

51202FSUPPORT SUB-ASSY, STRUT BAR BRACKET

main51202-11020iARS220,AZSH20,GWS224201806-202010

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30142iARS220,AZSH2#,GWS224201806-202010

51249ADAMPER, REAR SUSPENSION MEMBER

main51249-30040iARS220,AZSH2#201806-202010

51447EREINFORCEMENT, ENGINE UNDER COVER

main51447-11020iARS220,AZSH20,GWS224202011

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-30080iARS220,AZSH2#,GWS224201806-202010

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-30060iARS220,AZSH2#,GWS224201806-202010

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

main52205-30270iARS220,AZSH2#,GWS224201806-202010

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

main52206-30090iARS220,AZSH2#,GWS224201806-202010

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-30170iARS220,AZSH2#,GWS224201806-202010

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-30030iARS220,AZSH2#,GWS224201806-202010

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30180×2iARS220,AZSH2#,GWS224201806-202010

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30100×2iARS220,AZSH2#,GWS224201806-202010

52278DSTOPPER, REAR SUSPENSION MEMBER, FRONT UPPER

main52278-30110×2iARS220,AZSH2#,GWS224201806-202010

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30041iARS220,AZSH2#,GWS224201806-202010

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30041iARS220,AZSH2#,GWS224201806-202010

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53653EBRACE, REAR SUSPENSION, LOWER RH

main53653-30010iARS220..RS,RSB201806-202004

53654CBRACE, REAR SUSPENSION, LOWER LH

main53654-30010iARS220..RS,RSB201806-202004

57305AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR RH

main57305-30060iARS220,AZSH20,GWS224201806-202010

57306AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR LH

main57306-30080iARS220,AZSH20,GWS224201806-202010

9010506349

main90105-06349

9011906A32

main90119-06A32

9011908A87

main90119-08A87

9011908D21

main90119-08D21

9011910973

main90119-10973

9011910998

main90119-10998

9011910A01

main90119-10A01

9011914148

main90119-14148

9011914154

main90119-14154

9011916031

main90119-16031

9017810035

main90178-10035

9017816009

main90178-16009

9017908241

main90179-08241

9095101008

main90951-01008

91551K0828

main91551-K0828

91673K1075

main91673-K1075

9167480820

main91674-80820

9415120801

main94151-20801

43 parts on this diagram · 6 diagrams in section
