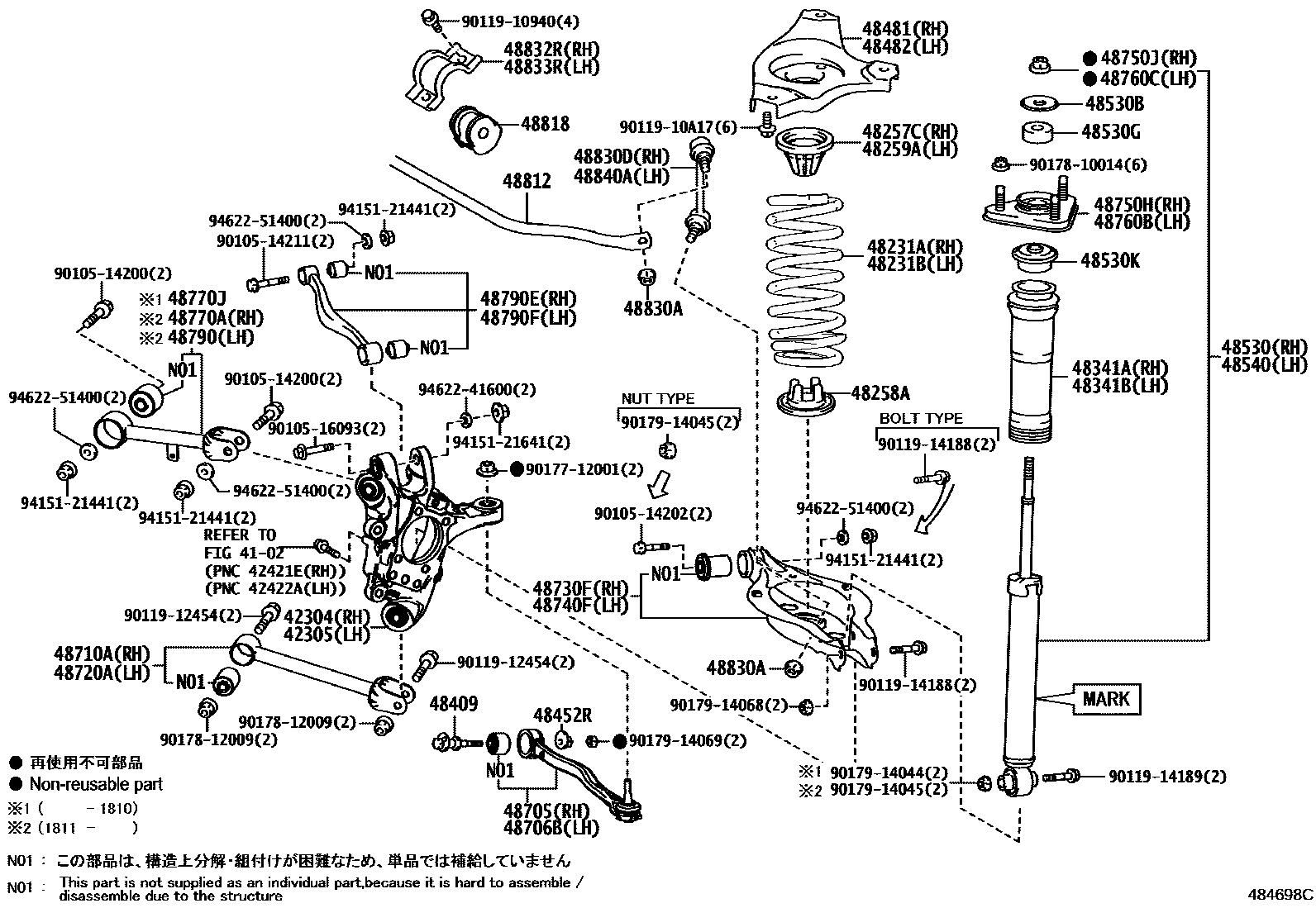

REAR SPRING & SHOCK ABSORBER

4102

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-53020iARS220,AZSH2#,GWS224201806-202204

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-53020iARS220,AZSH2#,GWS224201806-202204

48231ASPRING, COIL, REAR RH

main48231-30F50iAZSH20,GWS224201806-202204

main48231-30F60iARS220..RS201806-202204

main48231-30F90iARS220..S201806-202010

main48231-30G10iAZSH21..RSB201806-202204

48231BSPRING, COIL, REAR LH

main48231-30F50iAZSH20,GWS224201806-202204

main48231-30F60iARS220..RSADV201806-202204

main48231-30F90iARS220..S201806-202010

main48231-30G10iAZSH21..B,GEXEF,GF,RSADF,RSF,SF201806-202204

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-30080iARS220,AZSH2#,GWS224201806-202204

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-30050iARS220,AZSH2#,GWS224201806-202204

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-30080iARS220,AZSH2#,GWS224201806-202204

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30160iAZSH20..B,RS,RSB,S201806-202204

main48341-30170iAZSH21..RSB201806-202204

main48341-30180iARS220,AZSH20..RS,RSB201806-202204

main48341-30190iAZSH21..RSF201806-202204

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30160iAZSH20..B,RS,RSB,S201806-202204

main48341-30170iAZSH21..RSF201806-202204

main48341-30180iARS220,AZSH20,GWS224..G,GEXEC,RSADV201806-202204

main48341-30190iAZSH21..GEXEF,GF,RSADF201806-202204

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-30031iARS220,AZSH2#,GWS224201806-202204

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-30051iARS220,AZSH2#,GWS224201806-202204

48481SEAT, REAR SPRING, UPPER

main48481-30010iARS220,AZSH2#,GWS224201806-202204

48482SEAT, REAR SPRING, UPPER LH

main48482-30030iARS220,AZSH2#,GWS224201806-202204

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80866iAZSH20..RS201806-202204

main48530-80867iARS220..B,G,S201806-202010

main48530-80868iGWS224..GEXEC,S201806-202010

main48530-80869iAZSH2#,GWS224..RSADF,RSADV201806-202204

main48530-80870iARS220..RSADV201806-202204

main48530-80872iAZSH21..RSF201806-202204

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iARS220,AZSH2#,GWS224201806-202204

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01104iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-01105iARS220,AZSH2#,GWS224201806-202204

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80866iAZSH20..RS201806-202204

main48530-80867iARS220..RS,RSB201806-202010

main48530-80868iGWS224..GEXEC,S201806-202010

main48530-80872iAZSH21..RSB201806-202204

main48540-80586iAZSH2#,GWS224..RSADF,RSADV201806-202204

main48540-80587iARS220..RS,RSB201806-202204

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30120iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-30050iARS220,AZSH2#,GWS224201806-202204

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30240iARS220,AZSH2#,GWS224201806-202204

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30240iARS220,AZSH2#,GWS224201806-202204

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30140iARS220,AZSH2#,GWS224201806-202204

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-30140iARS220,AZSH2#,GWS224201806-202204

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-30200iARS220,AZSH2#,GWS224201806-202204

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-12127iARS220,AZSH2#,GWS224201806-202204

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-30200iARS220,AZSH2#,GWS224201806-202204

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-12127iARS220,AZSH2#,GWS224201806-202204

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-30160iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201811-202204

48770JARM ASSY, UPPER CONTROL, REAR NO.1

main48770-30151iARS220,AZSH2#,GWS224201806-201810

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-30151iARS220,AZSH2#,GWS224201811-202204

48790EARM ASSY, UPPER CONTROL, REAR RH NO.2

main48790-30130iARS220,AZSH2#,GWS224201806-202204

48790FARM ASSY, UPPER CONTROL, REAR LH NO.2

main48790-30140iARS220,AZSH2#,GWS224201806-202204

48812BAR, STABILIZER, REAR

main48812-24152iARS220..RSADV201806-202204

main48812-30571iAZSH20,GWS224201806-202204

main48812-53122iAZSH21..B,GEXEF,GF,RSADF,RSF,SF201806-202204

48818BUSH, STABILIZER, REAR

main48818-24040iARS220..RS201806-202204

main48818-24050iAZSH21..B,GEXEF,GF,RSADF,RSF,SF201806-202204

main48818-30260iAZSH20,GWS224201806-202204

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

48830DLINK ASSY, REAR STABILIZER, RH

main48830-30100iARS220,AZSH21..RS,RSB201806-202204

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-30070iARS220,AZSH2#,GWS224201806-202204

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-30070iARS220,AZSH2#,GWS224201806-202204

48840ALINK ASSY, REAR STABILIZER, LH

main48840-30030iARS220,AZSH2#,GWS224201806-202204

9010514200

main90105-14200

9010514202

main90105-14202

9010514211

main90105-14211

9010516093

main90105-16093

9011910940

main90119-10940

9011910A17

main90119-10A17

9011912454

main90119-12454

9011914188

main90119-14188

9011914189

main90119-14189

9017712001

main90177-12001

9017810014

main90178-10014

9017812009

main90178-12009

9017914044

main90179-14044

9017914045

main90179-14045

9017914068

main90179-14068

9017914069

main90179-14069

9415121441

main94151-21441

9415121641

main94151-21641

9462241600

main94622-41600

9462251400

main94622-51400

61 parts on this diagram · 1 diagram in section
