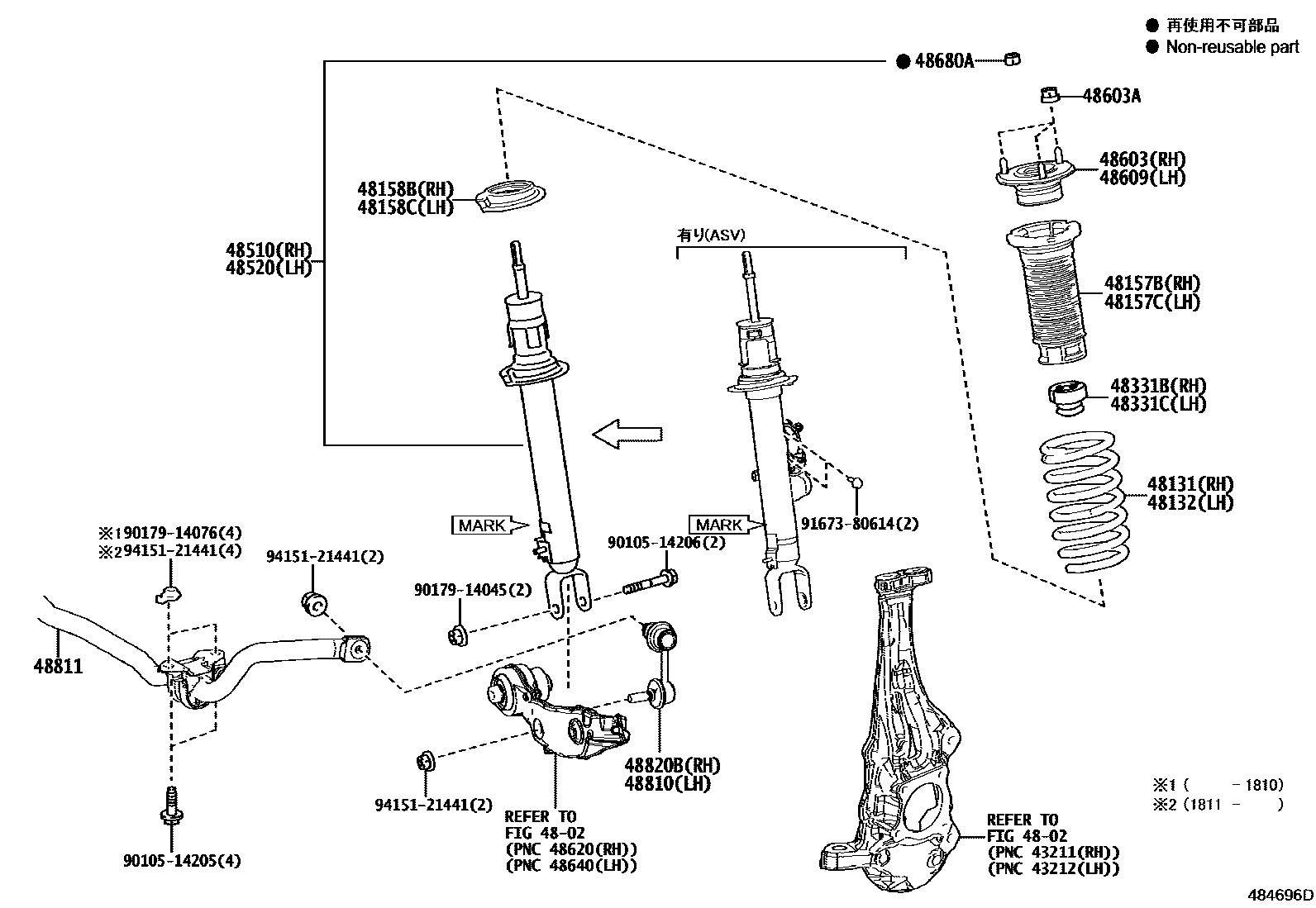

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-30E60iAZSH20201806-202010

main48131-30F20iARS220..B; ARS220..S201806-202010

main48131-30F30iAZSH21201806-202004

main48131-30F31iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

main48131-30F40iARS220..RS202011

main48131-30F50iGWS224202011-202204

main48131-30E50iAZSH20..S201806-202010

48132SPRING, FRONT COIL, LH

main48131-30E60iAZSH20202011-202204

main48131-30F20iARS220..B; ARS220..S201806-202010

main48131-30F30iAZSH21201806-202004

main48131-30F31iAZSH21..RSB202011

main48131-30F40iARS220..RS202011

main48131-30F50iGWS224201806-202010

main48131-30E50iAZSH20..S201806-202010

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-30100iARS220,AZSH20,GWS224201806-202010

main48157-30110iAZSH21..RSB202011

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-30070iARS220,AZSH20,GWS224201806-202010

main48157-30120iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iARS220,AZSH21..RS,RSB202011

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iARS220,AZSH2#,GWS224201806-202010

48331BBUMPER, FRONT SPRING, RH

main48331-30270iARS220,AZSH20,GWS224201806-202010

main48331-50160iAZSH21201806-202010

48331CBUMPER, FRONT SPRING, LH

main48331-30270iARS220,AZSH20,GWS224201806-202010

main48331-50160iAZSH21201806-202010

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80A37iAZSH20..B,RS,RSB,S202011-202204

main48510-80A38iARS220..RS202011

main48510-80A39iGWS224..GEXEC,S201806-202010

main48510-80A40iAZSH20,GWS224..G,GEXEC,RSADV202011-202204

main48510-80A41iARS220..RS,RSB201806-202004

main48510-80A43iAZSH21..RSB202011

main48510-80A44iAZSH21..GEXEF,GF,RSADF202011-202204

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80595iAZSH20..G,S201806-202010

main48520-80596iARS220..RS,RSB202004-202010

main48520-80597iGWS224..GEXEC,S201806-202010

main48520-80598iAZSH20..RS201806-202004

main48520-80599iARS220..RS,RSB201806-202004

main48520-80601iAZSH21..B,RSF,SF202011-202204

main48520-80602iAZSH21..GEXEF,GF,RSADF202011-202204

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-11010iARS220,AZSH20,GWS224201806-202010

main48609-50050iAZSH21201806-202010

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10033×6iARS220,AZSH21..RS,RSB202011-202303

main90178-10039×6iARS220,AZSH21..RS,RSB202304

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-11010iARS220,AZSH20,GWS224201806-202010

main48609-50060iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-12002×2iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30100iARS220,AZSH2#,GWS224201806-202010

48811BAR, STABILIZER, FRONT

main48804-30030iAZSH20..B,RS,RSB,S202011-202204

main48804-30040iARS220,AZSH20,GWS224..G,GEXEC,RSADV202011-202204

main48804-30060iAZSH21201806-202010

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30120iARS220,AZSH21..RS,RSB202011

9010514205

main90105-14205

9010514206

main90105-14206

9017914045

main90179-14045

9017914076

main90179-14076

9167380614

main91673-80614

9415121441

main94151-21441

24 parts on this diagram · 2 diagrams in section
