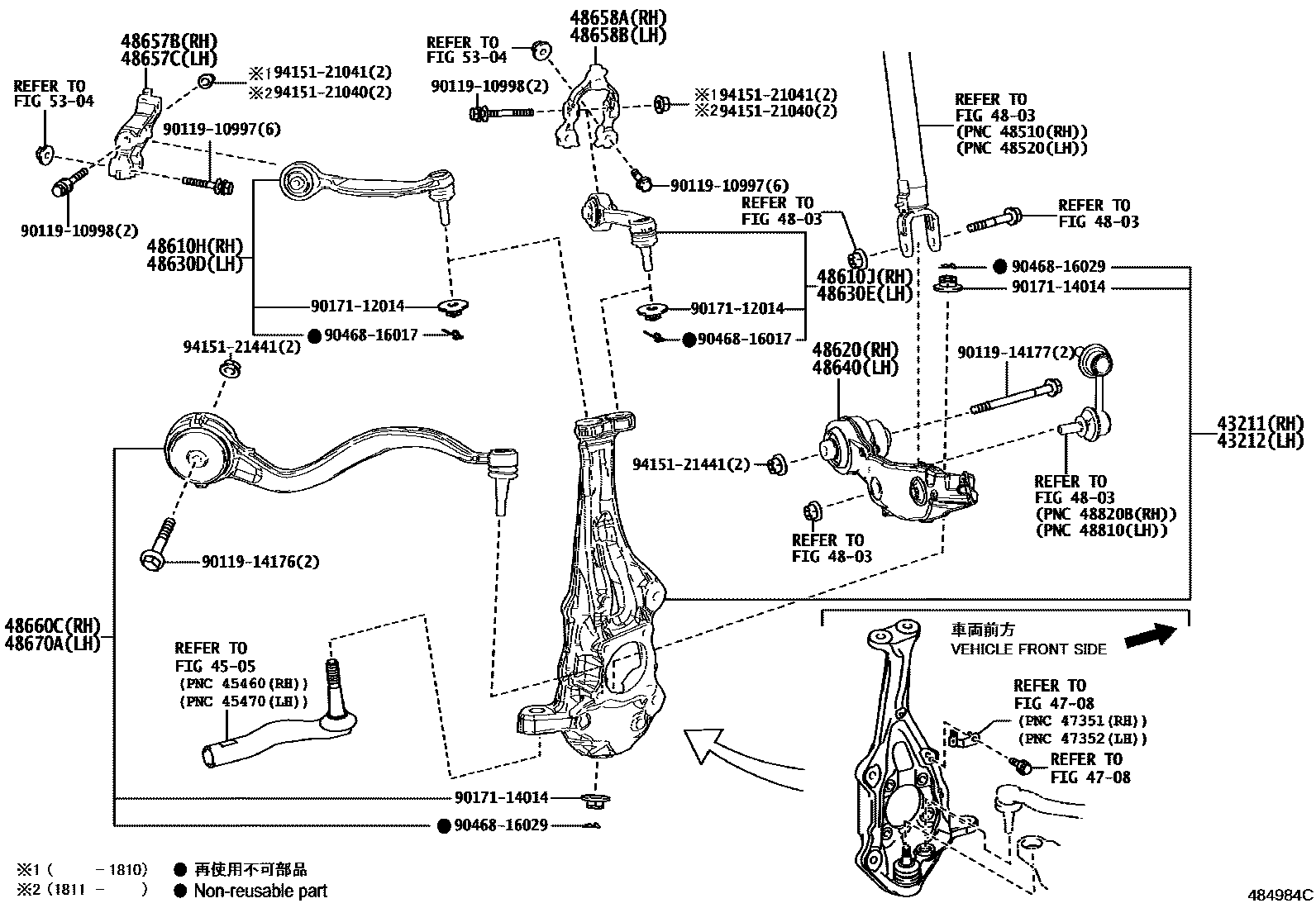

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

43211KNUCKLE, STEERING, RH

main43201-30060iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

main43201-39015iAZSH20;ARS220,GWS224..GEXEC,RSADV202011-202204

43212KNUCKLE, STEERING, LH

main43202-30070iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

main43202-39015iARS220..RS202011

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48610HARM ASSY, FRONT SUSPENSION UPPER, NO.1 RH

main48610-19045iAZSH20;ARS220,GWS224..GEXEC,RSADV202011-202204

main48610-59155iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

48610JARM ASSY, FRONT SUSPENSION UPPER, NO.2 RH

main48610-19055iARS220,AZSH20,GWS224201806-202010

main48610-59165iAZSH21201806-202010

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-30360iARS220..RS202011

main48620-30370iAZSH21201806-202006

main48620-30371iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

48630DARM ASSY, FRONT SUSPENSION UPPER, NO.1 LH

main48630-19045iAZSH20;ARS220,GWS224..GEXEC,RSADV202011-202204

main48630-59155iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

48630EARM ASSY, FRONT SUSPENSION UPPER, NO.2 LH

main48630-19055iARS220,AZSH20,GWS224201806-202010

main48630-59165iAZSH21201806-202010

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-30360iAZSH20;ARS220,GWS224..GEXEC,RSADV202011-202204

main48640-30370iAZSH21201806-202006

main48640-30371iAZSH21..RSB202011

48657BBRACKET, FRONT UPPER ARM, NO.1 RH

main48657-11010iARS220..RS202011

main48657-50030iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

48657CBRACKET, FRONT UPPER ARM, NO.1 LH

main48657-11020iARS220..RS202011

main48657-50040iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

48658ABRACKET, FRONT UPPER ARM, NO.2 RH

main48658-11010iARS220,AZSH20,GWS224201806-202010

main48658-50020iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

48658BBRACKET, FRONT UPPER ARM, NO.2 LH

main48658-11020iARS220,AZSH20,GWS224201806-202010

main48658-50030iAZSH21..RSB202011

48660CARM ASSY, SUSPENSION, LOWER NO.2 RH

main48620-39025iARS220,AZSH20,GWS224201806-202010

main48660-39085iAZSH21201806-202006

main48660-39086iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

48670AARM ASSY, SUSPENSION, LOWER NO.2 LH

main48640-39025iAZSH20;ARS220,GWS224..GEXEC,RSADV202011-202204

main48670-39085iAZSH21201806-202006

main48670-39086iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

9011910997

main90119-10997

9011910998

main90119-10998

9011914176

main90119-14176

9011914177

main90119-14177

9017112014

main90171-12014

9017114014

main90171-14014

9046816017

main90468-16017

9046816029

main90468-16029

9415121040

main94151-21040

9415121041

main94151-21041

9415121441

main94151-21441

29 parts on this diagram · 3 diagrams in section
