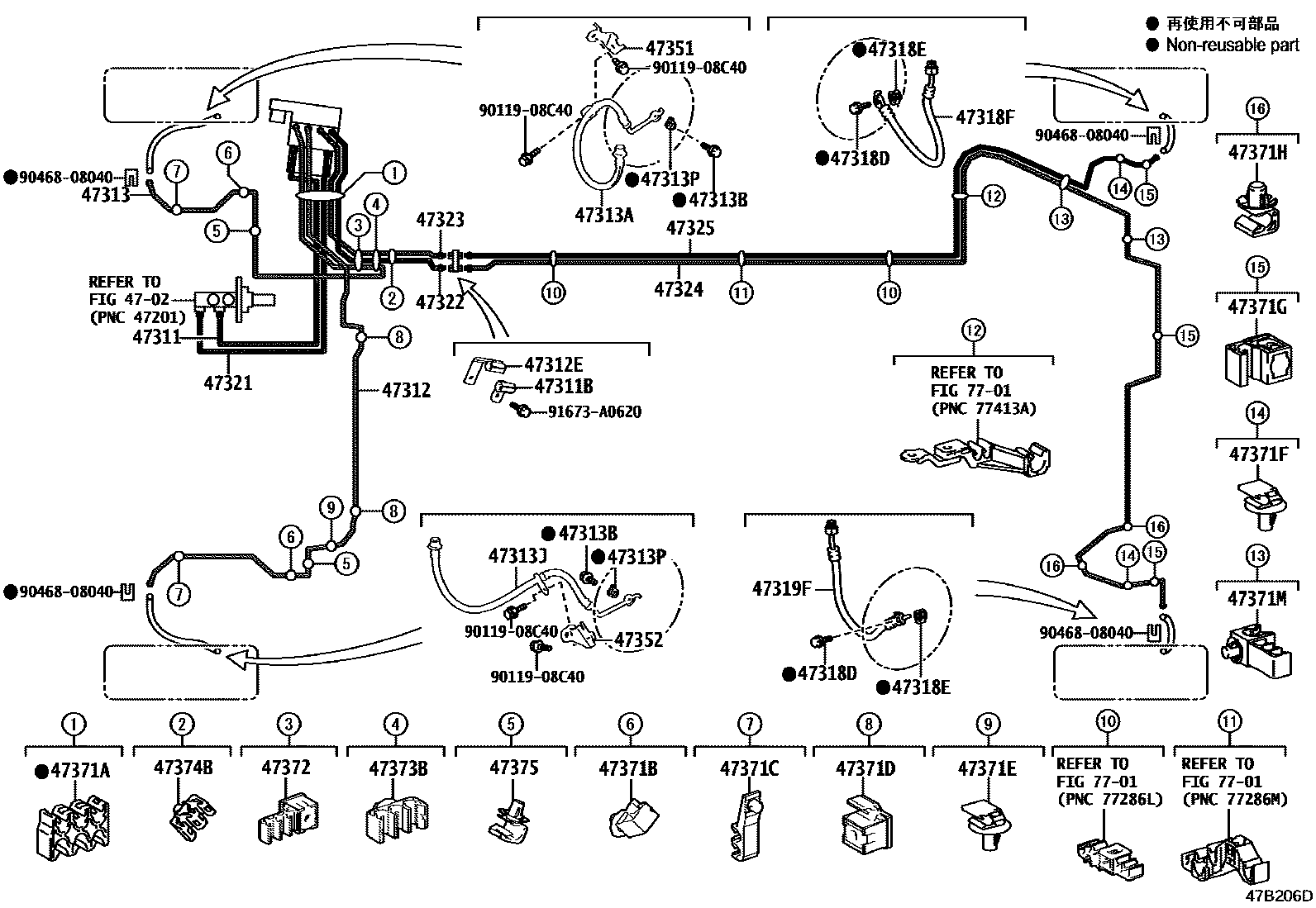

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-50100iARS220..RS202011

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10292iARS220,AZSH2#,GWS224201806-202010

47312TUBE, FRONT BRAKE, NO.2

main47312-30A60iAZSH20,GWS224201806-202010

main47312-30A70iARS220201806-202010

main47312-30A80iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10297iARS220,AZSH21..RS,RSB202011

47313TUBE, FRONT BRAKE, NO.3

main47313-30A00iAZSH21..RSB202011

main47313-50270iARS220201806-202010

main47313-50290iAZSH2#,GWS224201806-201810

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J16iARS220,AZSH20201806-202010

main90947-02J22iGWS224202011-202204

main90947-02J24iAZSH21..RSB202011

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J17iARS220,AZSH20201806-202010

main90947-02J23iGWS224201806-202010

main90947-02J25iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iARS220,AZSH2#,GWS224201806-202010

main47389-50021×2iARS220,AZSH21202408

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iARS220,AZSH2#,GWS224201806-202010

main47389-50021×2iARS220,AZSH21202408

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J26iARS220,AZSH2#,GWS224201806-202010

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J28iARS220,AZSH2#,GWS224201806-202010

47321TUBE, REAR BRAKE, NO.1

main47321-50090iARS220..RS202011

47322TUBE, REAR BRAKE, NO.2

main47322-30660iAZSH20,GWS224202011-202204

main47322-30670iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

main47322-50320iARS220..RS202011

47323TUBE, REAR BRAKE, NO.3

main47323-30600iAZSH20,GWS224202011-202204

main47323-30610iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

main47323-50180iARS220201806-202010

47324TUBE, REAR BRAKE, NO.4

main47324-30390iARS220,AZSH21..RS,RSB202011

47325TUBE, REAR BRAKE, NO.5

main47325-30170iAZSH21..RSB202011

main47325-30180iARS220..RS202011

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-30240iARS220,AZSH20,GWS224201806-202010

main47351-30250iAZSH21202011

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-30100iAZSH20;ARS220,GWS224..GEXEC,RSADV202011-202204

main47352-30110iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

47371ACLAMP, BRAKE TUBE, NO.1

main47371-11010iAZSH21..RSB202011

main90949-01E56iARS220..RS202011

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D46×3iARS220,AZSH21..RS,RSB202011

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01E41×2iARS220,AZSH20,GWS224201806-202010

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D20×2iARS220,AZSH2#,GWS224201806-201810

main90949-01E67×2iARS220,AZSH2#,GWS224201811-202010

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E45iARS220,AZSH2#,GWS224201806-202010

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D46×2iARS220,AZSH21..RS,RSB202011

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01C82×3iARS220,AZSH2#,GWS224201806-202010

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D17×2iARS220,AZSH2#,GWS224201806-202010

47371MCLAMP, BRAKE TUBE, NO.13

main77286-30190×2iARS220,AZSH2#,GWS224201806-202010

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D21iARS220,AZSH2#,GWS224201806-202010

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D41iARS220,AZSH2#,GWS224201806-202010

47374BCLAMP, BRAKE TUBE, NO.4

main90469-07020iARS220,AZSH2#,GWS224201806-202010

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D17×2iARS220,AZSH2#,GWS224201806-202010

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908C40

main90119-08C40

9046808040

main90468-08040

91673A0620

main91673-A0620

38 parts on this diagram · 5 diagrams in section
