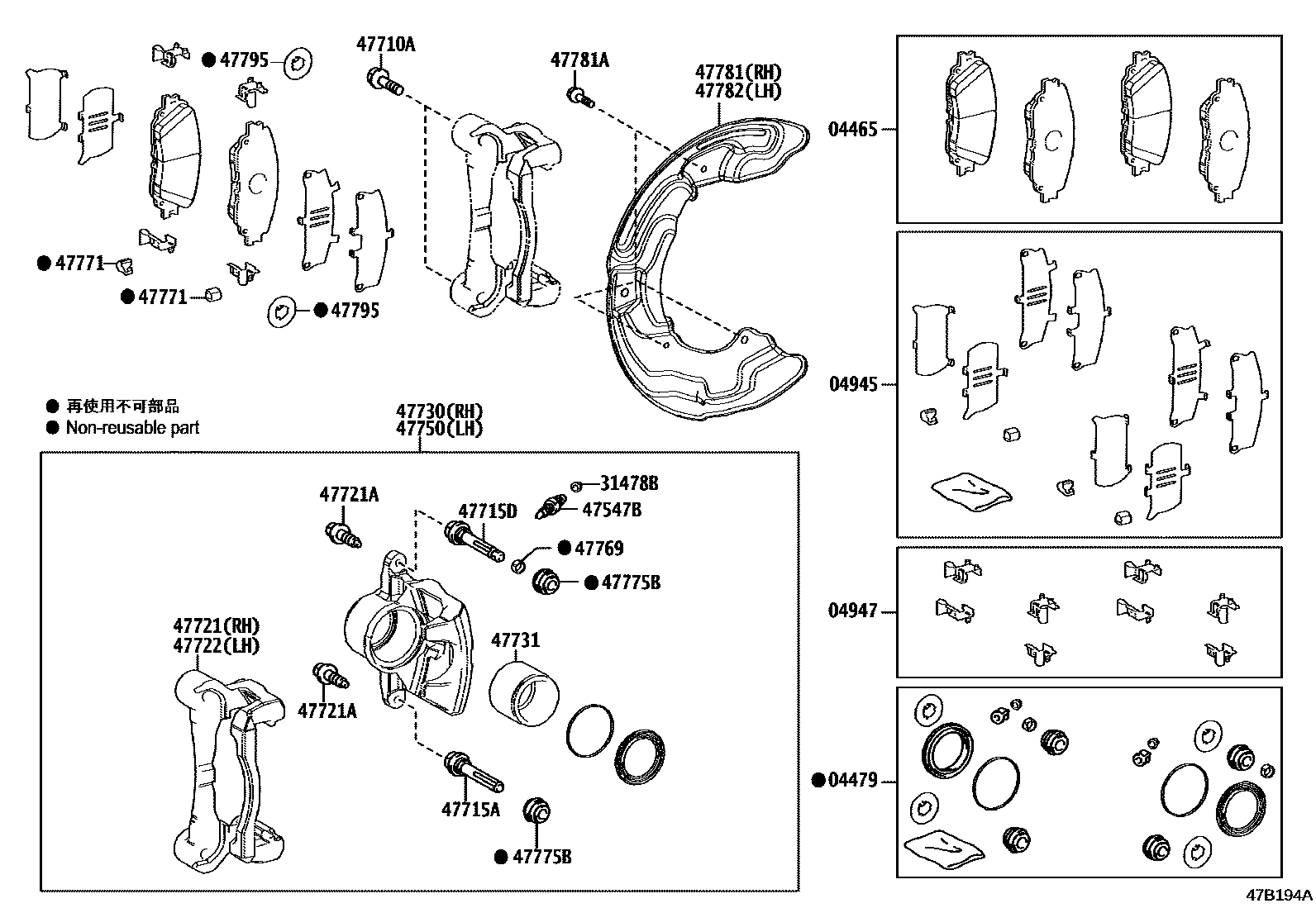

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-30520iARS220,AZSH2#201806-202204

main04465-30530iGWS224201806-202010

main04465-62010iGWS224202011-202204

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-30270iARS220,AZSH21..RS,RSB201806-202204

main04478-30280iGWS224201806-202204

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30390iARS220,AZSH2#201806-202204

main04945-30400iGWS224201806-202204

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30190iARS220,AZSH21..RS,RSB201806-202204

main04947-50140iGWS224201806-202204

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGWS224201806-202204

main31478-30010iAZSH20;ARS220,AZSH21..B,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAZSH20;ARS220,AZSH21..B,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main47547-50010iGWS224201806-202204

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180iARS220,AZSH21..RS,RSB201806-202204

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iARS220,AZSH2#201806-202204

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iARS220,AZSH2#201806-202204

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30611iARS220,AZSH2#201806-202204

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iARS220,AZSH2#201806-202204

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-30611iAZSH20;ARS220,AZSH21..B,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30610iARS220,AZSH2#201806-202204

main47730-50200iGWS224201806-202204

47731PISTON, FRONT DISC BRAKE

main47731-12A10iARS220,AZSH2#201806-202204

main47731-50200iGWS224201806-202204

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30610iARS220,AZSH2#201806-202204

main47750-50200iGWS224201806-202204

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iARS220,AZSH2#201806-202204

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30610iARS220,AZSH2#201806-202204

main47771-30620iGWS224201806-202204

47775BBOOT, BUSH DUST, NO.1

main47775-52190iARS220,AZSH21..RS,RSB201806-202204

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30280iGWS224201806-202204

main47781-30290iARS220,AZSH21..RS,RSB201806-202204

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30280iGWS224201806-202204

main47782-30290iAZSH20;ARS220,AZSH21..B,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30610iARS220,AZSH2#201806-202204

22 parts on this diagram · 2 diagrams in section
