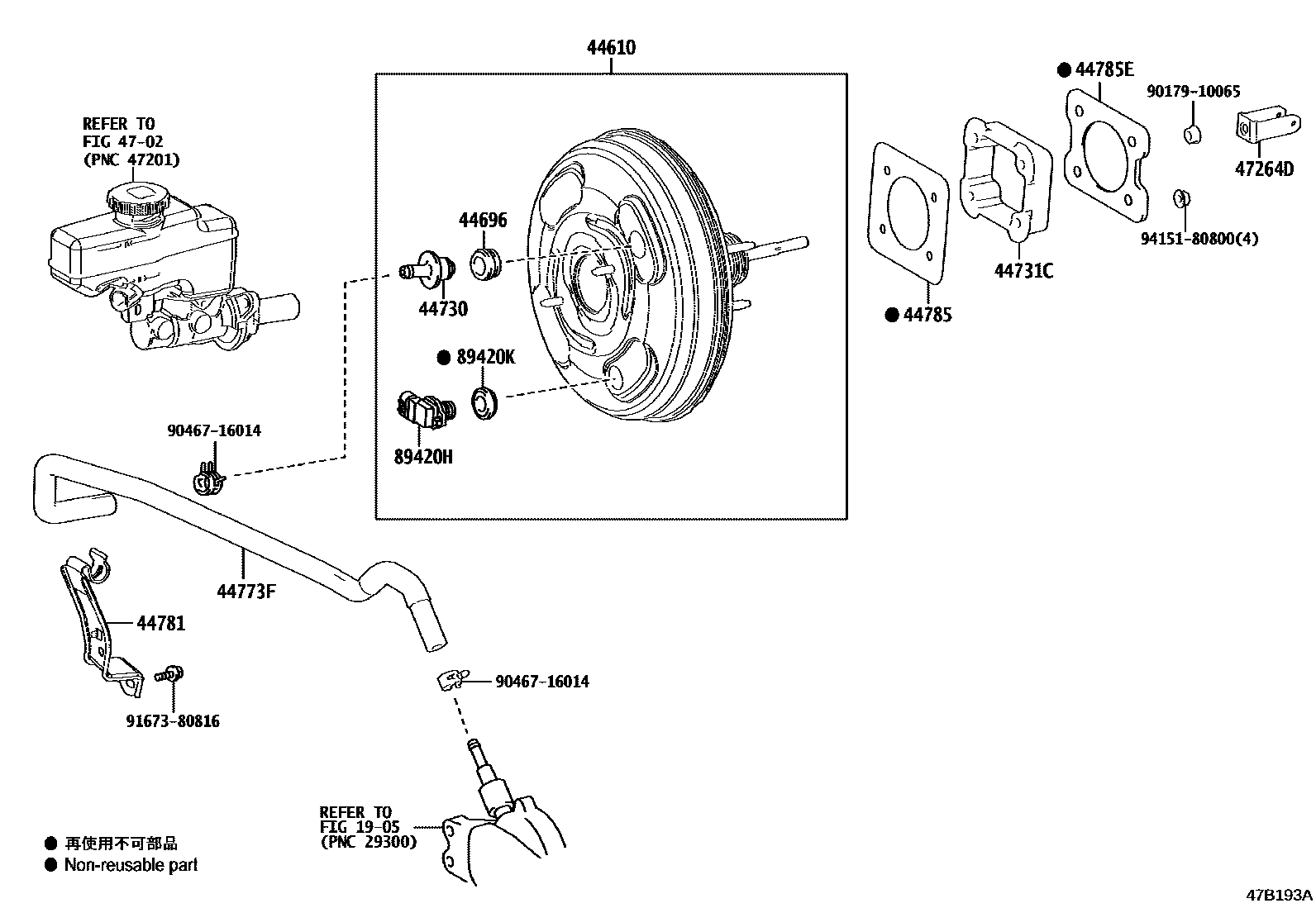

BRAKE BOOSTER & VACUUM TUBE

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-30C20iARS220201806-202010

44696GROMMET, CHECK VALVE

main90480-24439iARS220201806-202010

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iARS220201806-202010

44731CBRACKET, BRAKE BOOSTER

main44731-50030iARS220201806-202010

44773FHOSE, UNION TO CHECK VALVE

main44773-30670iARS220201806-202010

44781BRACKET, HOSE

main44781-53020iARS220201806-202010

44785GASKET, BRAKE BOOSTER

main44785-47010iARS220201806-202010

44785EGASKET, BRAKE BOOSTER, NO.2

main44785-12040iARS220201806-202010

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iARS220201806-202010

main47264-48020iARS220202401

89420HSENSOR ASSY, VACUUM

main89421-52020iARS220201806-202010

89420KGROMMET, VACUUM SENSOR

main90480-24439iARS220201806-202010

9017910065

main90179-10065

9046716014

main90467-16014

9167380816

main91673-80816

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
