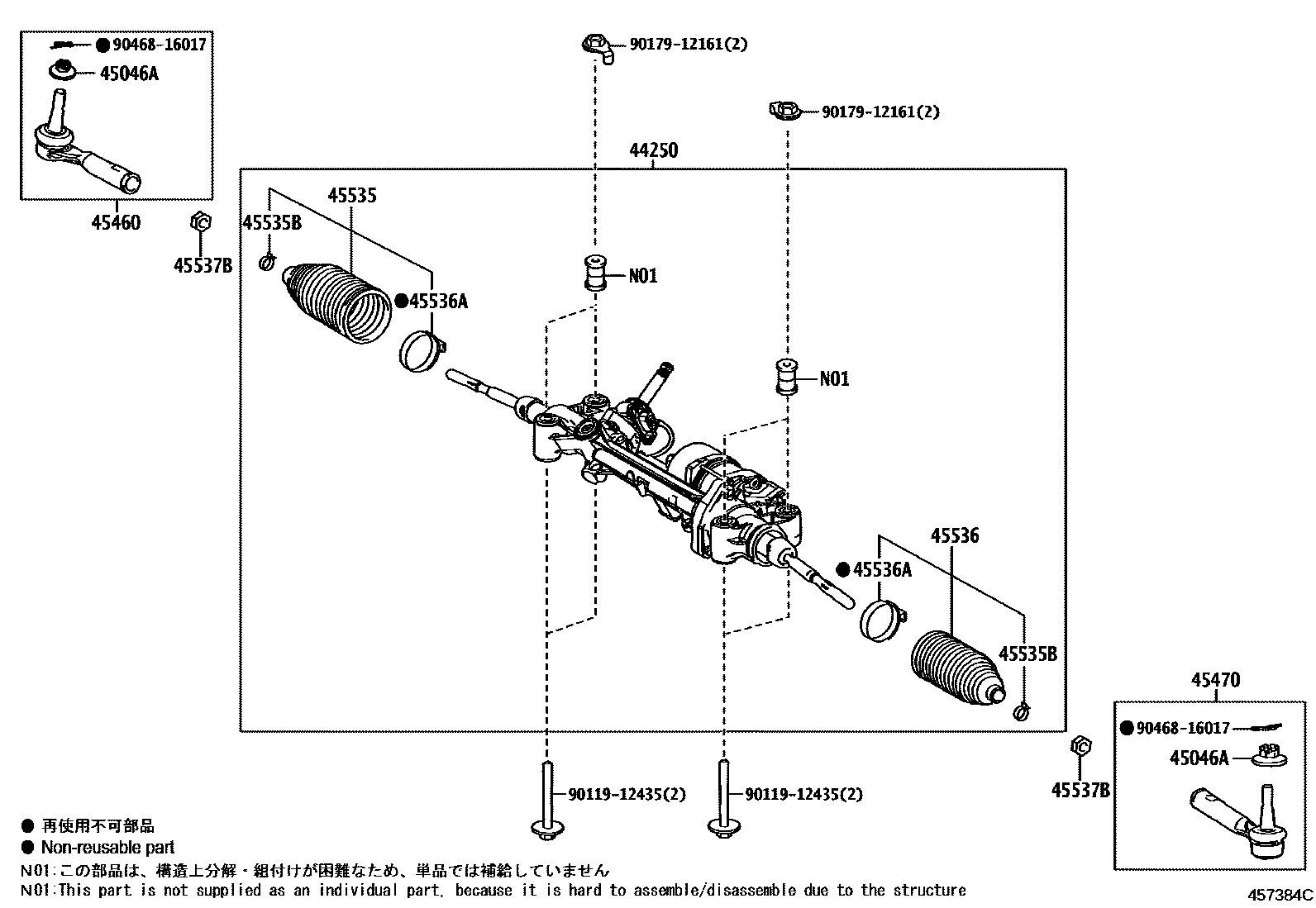

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30300iARS220,AZSH20..B,G,S201806-202010

main44250-30301iARS220..RS202011

main44250-30310iARS220,AZSH20..G,S; GWS224;ARS220,AZSH20..RS,RSADV,RSB201806-202010

main44250-30320iAZSH21201806-202010

main44250-30321iAZSH21..RSB202011

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014×2iARS220,AZSH21..RS,RSB202011

45460ROD ASSY, TIE, RH

main45460-19255iARS220..RS202011

main45460-80009iAZSH21..RSB202011

45470ROD ASSY, TIE, LH

main45470-19085iARS220,AZSH20,GWS224201806-202010

main45470-39375iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

45535BOOT, STEERING RACK, NO.1

main45535-39075iARS220,AZSH2#,GWS224201806-202010

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iARS220,AZSH2#,GWS224201806-202010

45536BOOT, STEERING RACK, NO.2

main45535-39075iARS220,AZSH2#,GWS224201806-202010

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02070iARS220,AZSH2#,GWS224201806-202010

45537BNUT, RACK END LOCK

main90178-16001×2iARS220,AZSH2#,GWS224201806-202010

9011912435

main90119-12435

9017912161

main90179-12161

9046816017

main90468-16017

12 parts on this diagram · 3 diagrams in section
