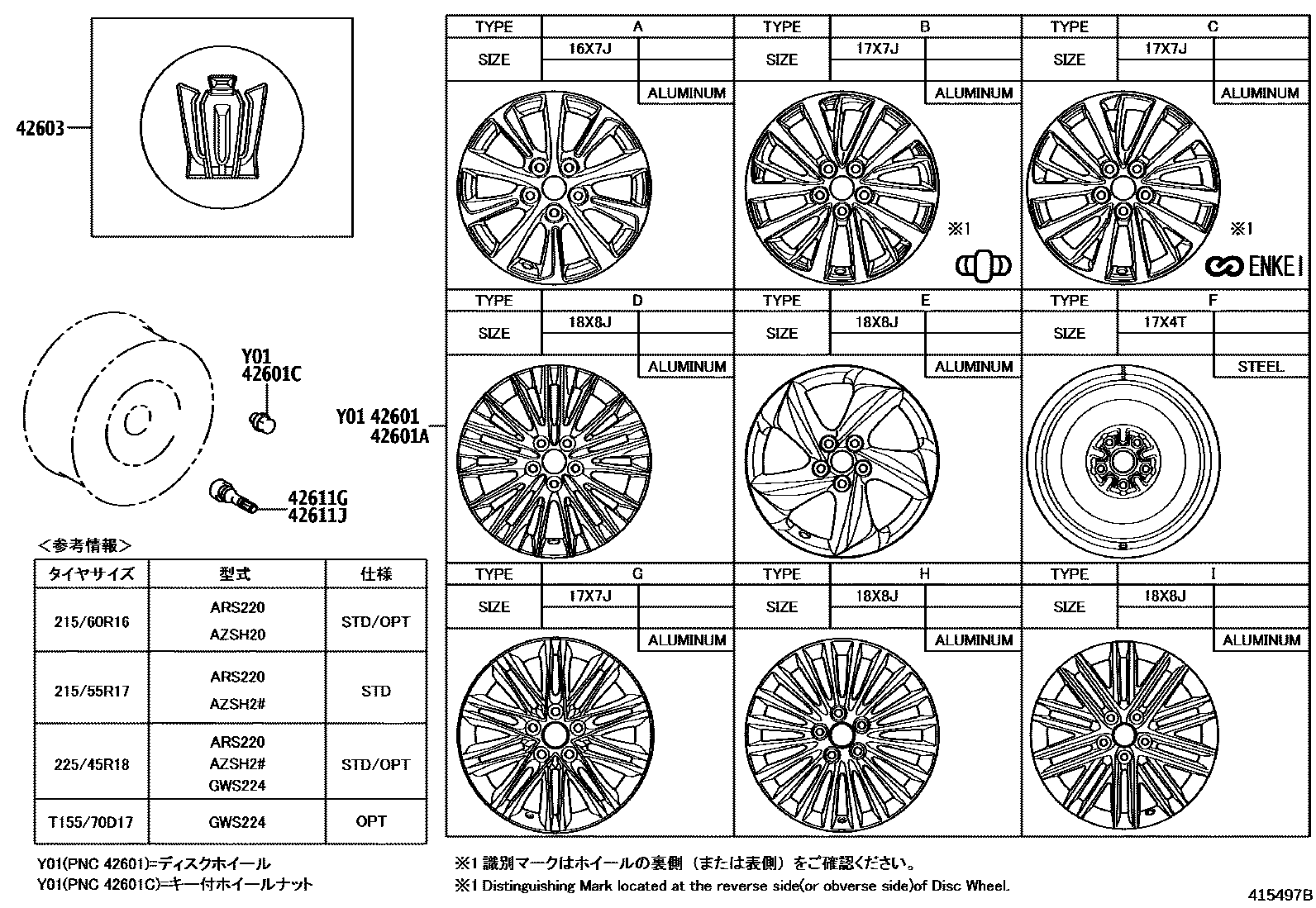

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-22B40×4iARS220,AZSH20..S; ARS220..B201806-202010

main42611-30J11×4supersedes 4261A-30480iARS220,AZSH2#,GWS224..RSADF,RSADV; AZSH2#..RS,RSF202011-202204

main42611-30J70×4iAZSH21,GWS224..GEXEC,GEXEF201806-202010

main42611-30J80×4iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

main42611-30K40×4iAZSH21,GWS224..GEXEC,GEXEF202011-202204

main4261A-30360×4supersedes 42611-30K00iARS220,AZSH2#..G,GF,S,SF; GWS224..S201806-202010

main4261A-30430×4iAZSH21..RSB202206

main4261A-30440×4iAZSH2#..G,GF; AZSH2#..S,SF202011-202204

main4261A-30480×4iAZSH21..RSF;AZSH20..RS,RSB202011-202204

main42611-30G90×4iARS220,AZSH2#..S,SF201910-202010

main42611-30J90×4iARS220,AZSH2#..RS,RSF202004-202010

main42611-30K90×4supersedes 4261A-30480iARS220..RS202107

main4261A-30500×4iAZSH2#..S,SF202107-202204

42601AWHEEL, DISC (FOR SPARE)

main42611-53320iGWS224201806-201908

main42611-53321iGWS224201909-202010

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30680×4iARS220,AZSH2#,GWS224201806-202010

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF201806-202010

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGWS224201806-202010

6 parts on this diagram · 3 diagrams in section
