REAR AXLE SHAFT & HUB

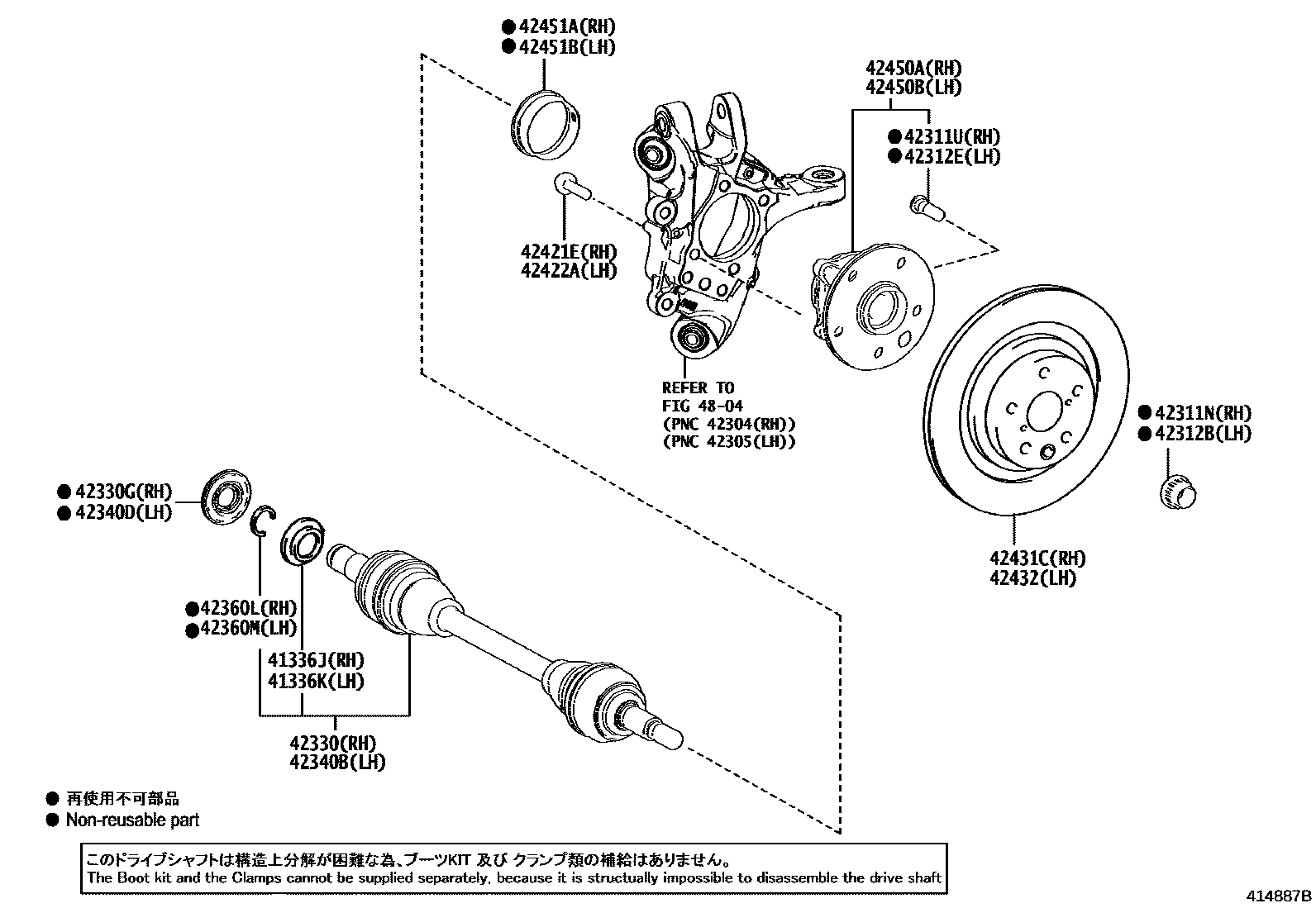

Parts diagram

41336JCOVER, REAR DRIVE SHAFT DUST, RH

main41336-24020i202011-202204

41336KCOVER, REAR DRIVE SHAFT DUST, LH

main41336-24020i201806-202010

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001i201806-202010

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5i201806-202010

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001i201806-202010

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5i201806-202010

42330SHAFT ASSY, REAR DRIVE, RH

main42330-30190i201806-202010

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-47018i201806-202010

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-30190i201806-202010

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47019i201806-202010

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003i202011

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003i201806-202010

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12009×4i201806-202010

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12009×4i202011

42431CDISC, REAR RH

main42431-30340i201806-202010

main42431-30350i202011-202204

42432DISC, REAR LH

main42431-30340i202011-202204

main42431-30350i201806-202010

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30041i201806-202010

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30041i201806-202010

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30040i201806-202010

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30040i201806-202010

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

21 parts on this diagram · 1 diagram in section
