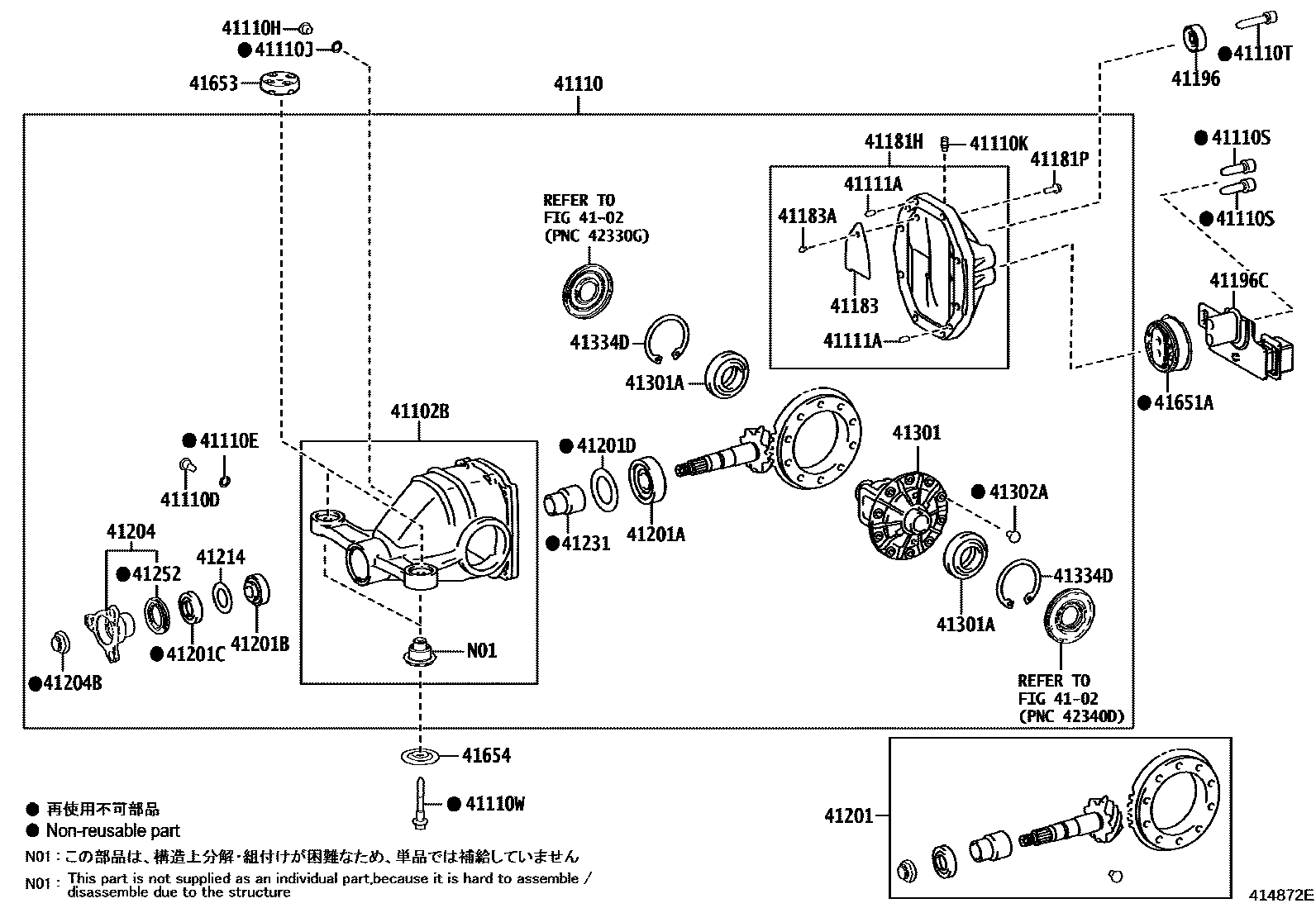

REAR AXLE HOUSING & DIFFERENTIAL

4102

41102BCARRIER SUB-ASSY, DIFFERENTIAL W/MOUNT

main41102-50010iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-30C20iARS220..RSADV201806-202210

sub41110-30C21

main41110-30C21iARS220..RS202211

main41110-50360iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF201806-202210

sub41110-50361

main41110-50361iAZSH21..RSB202211

main41110-50370iGWS224201806-202204

sub41110-50371

41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)

main90341-18035iARS220,AZSH2#,GWS224201806-202204

41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

main12157-10010iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41110HPLUG (FOR REAR DIFFERENTIAL FILLER)

main90341-18032iARS220,AZSH2#,GWS224201806-202204

41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

main12157-10010iARS220,AZSH2#,GWS224201806-202204

41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)

main90930-03077iARS220,AZSH2#,GWS224201806-202204

41110SBOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET)

main90110-14008iARS220,AZSH2#,GWS224201806-202204

41110TBOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET)

main90110-14009iARS220,AZSH2#,GWS224201806-202204

41110WBOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET)

main90119-12449iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)

main90250-10017iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41181HCOVER, REAR DIFFERENTIAL CARRIER

main41108-30020iARS220,AZSH2#,GWS224201806-202204

41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)

main90105-10417iARS220,AZSH2#,GWS224201806-202204

41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL

main41183-30020iARS220,AZSH2#,GWS224201806-202204

41183ABOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR)

main91651-60614iARS220,AZSH2#,GWS224201806-202204

41196DAMPER, REAR DIFFERENTIAL DYNAMIC

main41196-50010iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41196CDAMPER, REAR DIFFERENTIAL DYNAMIC, NO.2

main41196-53010iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-59275iAZSH2#201806-202312

main41201-59285iARS220201806-202312

main41201-59335iGWS224201806-202204

main41201-59445iAZSH21202312

main41201-59455iARS220202312

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-45056iARS220,AZSH2#,GWS224201806-202211

sub90366-45071

sub41231-24020

main90366-45071iARS220,AZSH21..RS,RSB202211

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-34024iARS220,AZSH21..RS,RSB201806-202204

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-44005iARS220,AZSH2#,GWS224201806-202204

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-70002iARS220,AZSH21..RS,RSB201806-202204

main90201-70004iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90201-70006iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90201-70008iARS220,AZSH2#,GWS224201806-202204

main90201-70010iARS220,AZSH2#,GWS224201806-202204

main90201-70012iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90201-70014iARS220,AZSH2#,GWS224201806-202204

main90201-70016iARS220,AZSH2#,GWS224201806-202204

main90201-70018iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90201-70020iARS220,AZSH2#,GWS224201806-202204

main90201-70022iARS220,AZSH2#,GWS224201806-202204

main90201-70024iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90201-70026iARS220,AZSH21..RS,RSB201806-202204

main90201-70028iARS220,AZSH21..RS,RSB201806-202204

main90201-70030iARS220,AZSH2#,GWS224201806-202204

main90201-70032iARS220,AZSH21..RS,RSB201806-202204

main90201-70034iARS220,AZSH2#,GWS224201806-202204

main90201-70036iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90201-70038iARS220,AZSH2#,GWS224201806-202204

main90201-70040iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90201-70042iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-30040iARS220,AZSH2#,GWS224201806-202204

41204BNUT (FOR REAR DRIVE PINION)

main90179-26005iARS220,AZSH2#,GWS224201806-202204

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-50010iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24020iARS220,AZSH21..RS,RSB202211

main41231-30050iARS220,AZSH2#,GWS224201806-202211

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-24010iARS220,AZSH2#,GWS224201806-202204

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-50031iGWS224201806-202204

main41301-53041iAZSH20;ARS220,AZSH21..B,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50087iARS220,AZSH21..RS,RSB201806-202204

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-12219iARS220,AZSH2#,GWS224201806-202204

41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-99062iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99063iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99064iARS220,AZSH2#,GWS224201806-202204

main90521-99065iARS220,AZSH2#,GWS224201806-202204

main90521-99066iARS220,AZSH21..RS,RSB201806-202204

main90521-99067iARS220,AZSH2#,GWS224201806-202204

main90521-99068iARS220,AZSH2#,GWS224201806-202204

main90521-99070iARS220,AZSH2#,GWS224201806-202204

main90521-99071iARS220,AZSH21..RS,RSB201806-202204

main90521-99072iARS220,AZSH21..RS,RSB201806-202204

main90521-99073iARS220,AZSH21..RS,RSB201806-202204

main90521-99074iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99075iARS220,AZSH2#,GWS224201806-202204

main90521-99076iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99077iARS220,AZSH21..RS,RSB201806-202204

main90521-99078iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99079iARS220,AZSH21..RS,RSB201806-202204

main90521-99081iARS220,AZSH2#,GWS224201806-202204

main90521-99082iARS220,AZSH21..RS,RSB201806-202204

main90521-99083iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99084iARS220,AZSH21..RS,RSB201806-202204

main90521-99085iARS220,AZSH21..RS,RSB201806-202204

main90521-99086iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99087iARS220,AZSH2#,GWS224201806-202204

main90521-99088iARS220,AZSH21..RS,RSB201806-202204

main90521-99089iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99090iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99091iARS220,AZSH2#,GWS224201806-202204

main90521-99092iARS220,AZSH2#,GWS224201806-202204

main90521-99095iARS220,AZSH21..RS,RSB201806-202204

main90521-99096iARS220,AZSH2#,GWS224201806-202204

main90521-99097iARS220,AZSH2#,GWS224201806-202204

main90521-99100iARS220,AZSH2#,GWS224201806-202204

main90521-99101iARS220,AZSH2#,GWS224201806-202204

main90521-99102iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

main90521-99103iARS220,AZSH21..RS,RSB201806-202204

main90521-99104iARS220,AZSH2#,GWS224201806-202204

main90521-99105iARS220,AZSH2#,GWS224201806-202204

main90521-99107iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

41651ACUSHION, REAR DIFFERENTIAL MOUNT, NO.2

main41651-30180iARS220,AZSH2#,GWS224201806-202204

41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER

main41653-11010iARS220,AZSH2#,GWS224201806-202204

41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER

main41654-11010iARS220,AZSH2#,GWS224201806-202204

35 parts on this diagram · 1 diagram in section
