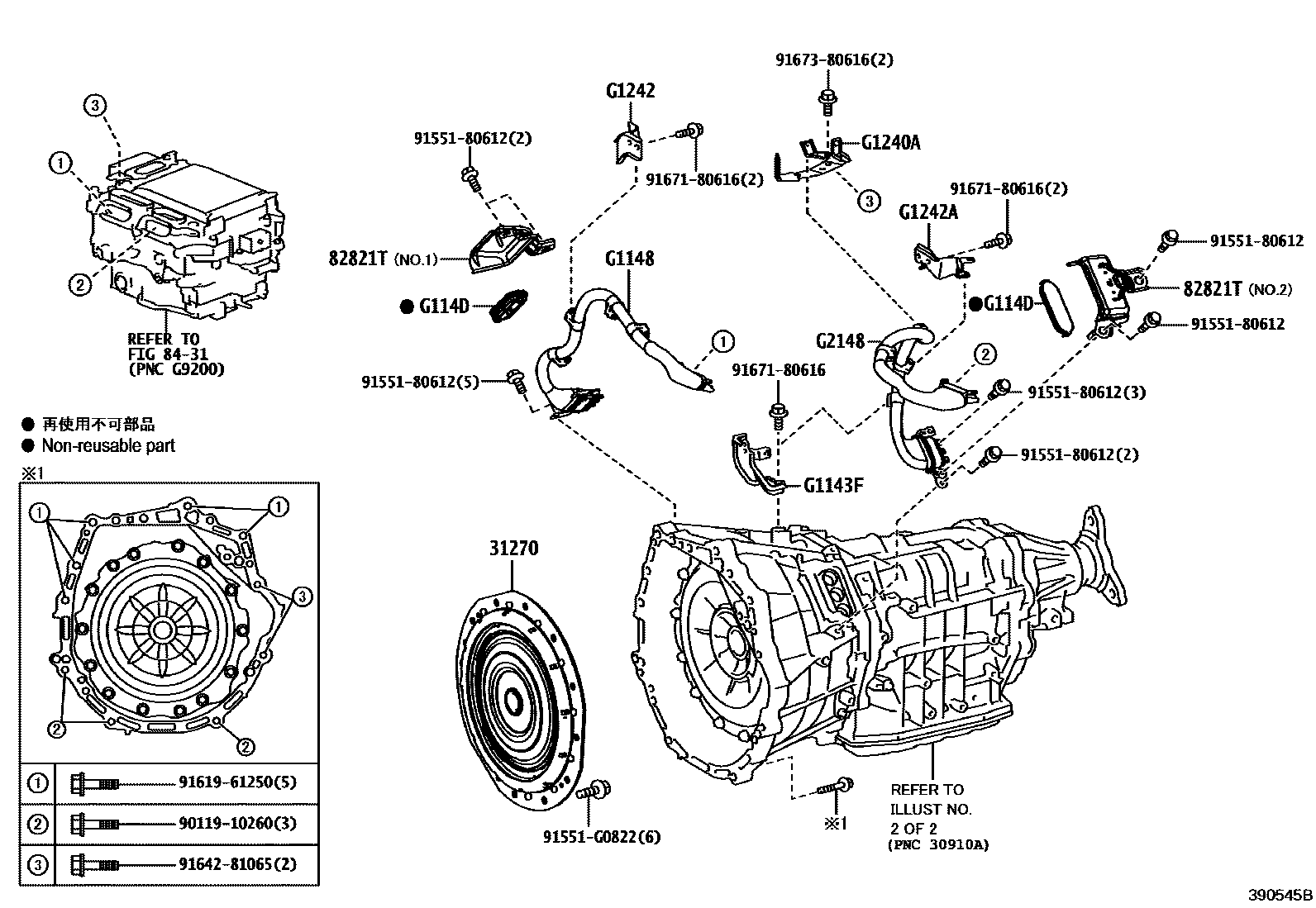

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-30010iAZSH21..RSB202011

82821TCOVER, CONNECTOR

main82821-11010×2iGWS224201806-202010

main82821-30A40iAZSH2#201806-202010

main82821-30A50iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

8431HEV INVERTER

→ Go to FIG 84-31

G1143FBRACKET, MOTOR CABLE, NO.2

mainG114330020iAZSH21..RSB202011

G1148CABLE, MOTOR

mainG114811010iGWS224202011-202204

mainG114830030iAZSH21..RSB202011

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010×2iAZSH2#,GWS224201806-202010

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124011010iGWS224201806-202010

G1240ABRACKET ASSY, INVERTER MOTOR CABLE

mainG124030060iAZSH2#201806-202010

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211010iGWS224201806-202010

mainG124230120iAZSH21..RSB202011

G1242ABRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211020iGWS224201806-202010

mainG124230130iAZSH21..RSB202011

G2148CABLE, GENERATOR

mainG214811010iGWS224202011-202204

mainG214830030iAZSH2#201806-202010

9011910260

main90119-10260

9155180612

main91551-80612

91551G0822

main91551-G0822

9161961250

main91619-61250

9164281065

main91642-81065

9167180616

main91671-80616

9167380616

main91673-80616

18 parts on this diagram · 6 diagrams in section
