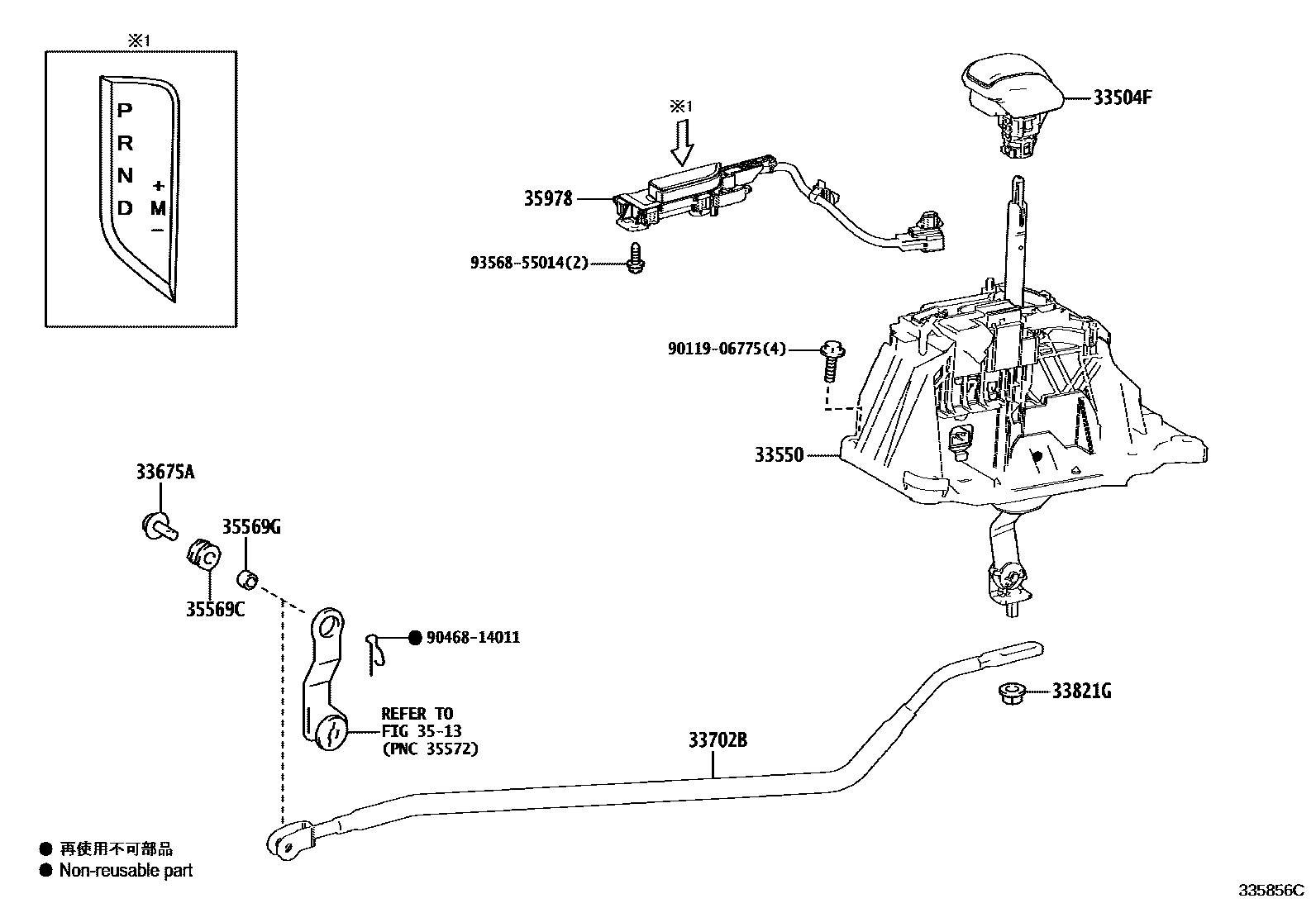

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-30540-C0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF; ARS220,AZSH2#..S,SF; ARS220..RSB; GWS224..S;ARS220,AZSH2#..B,G,GF201806-202010
BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
33550FLOOR SHIFT ASSY, TRANSMISSION
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
3513THROTTLE LINK & VALVE LEVER (ATM)
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35978INDICATOR, SHIFT POSITION
9011906775
main90119-06775
9046814011
main90468-14011
9356855014
main93568-55014
12 parts on this diagram · 4 diagrams in section
