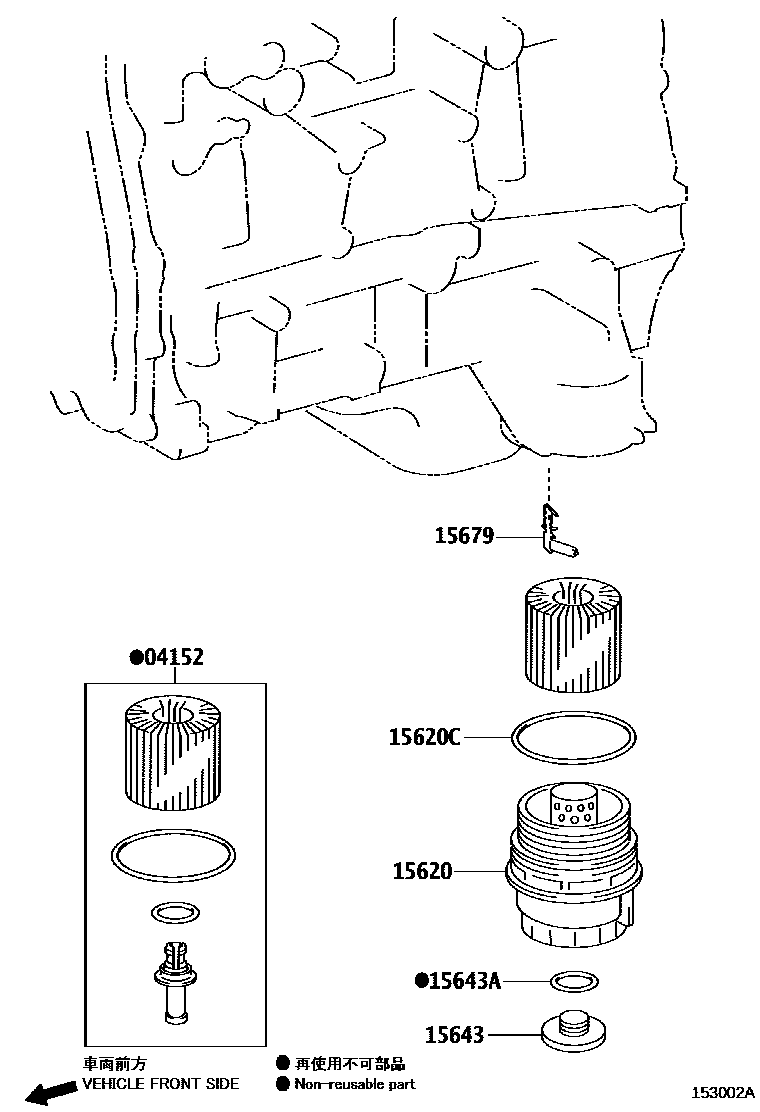

OIL FILTER

0001 1 0002 1 0003 1

04152ELEMENT KIT, OIL FILTER

main04152-31090i8ARFTS..ARS220..RSADV202011-202204

main04152-31110i8GRFXS..GWS224202011-202204

15620CAP ASSY, OIL FILTER

main15620-31060i8ARFTS..ARS220..RS202108

main15620-36020i8ARFTS..ARS220201806-202010

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i8ARFTS..ARS220; 8GRFXS..GWS224201806-202010

15643PLUG, OIL FILTER DRAIN

main15643-31050i8ARFTS..ARS220201806-202010

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i8ARFTS..ARS220201806-202010

15679CLIP, OIL FILTER BRACKET

main15679-37011i8ARFTS..ARS220; 8GRFXS..GWS224201806-202010

6 parts on this diagram · 3 diagrams in section
