ENGINE OVERHAUL GASKET KIT

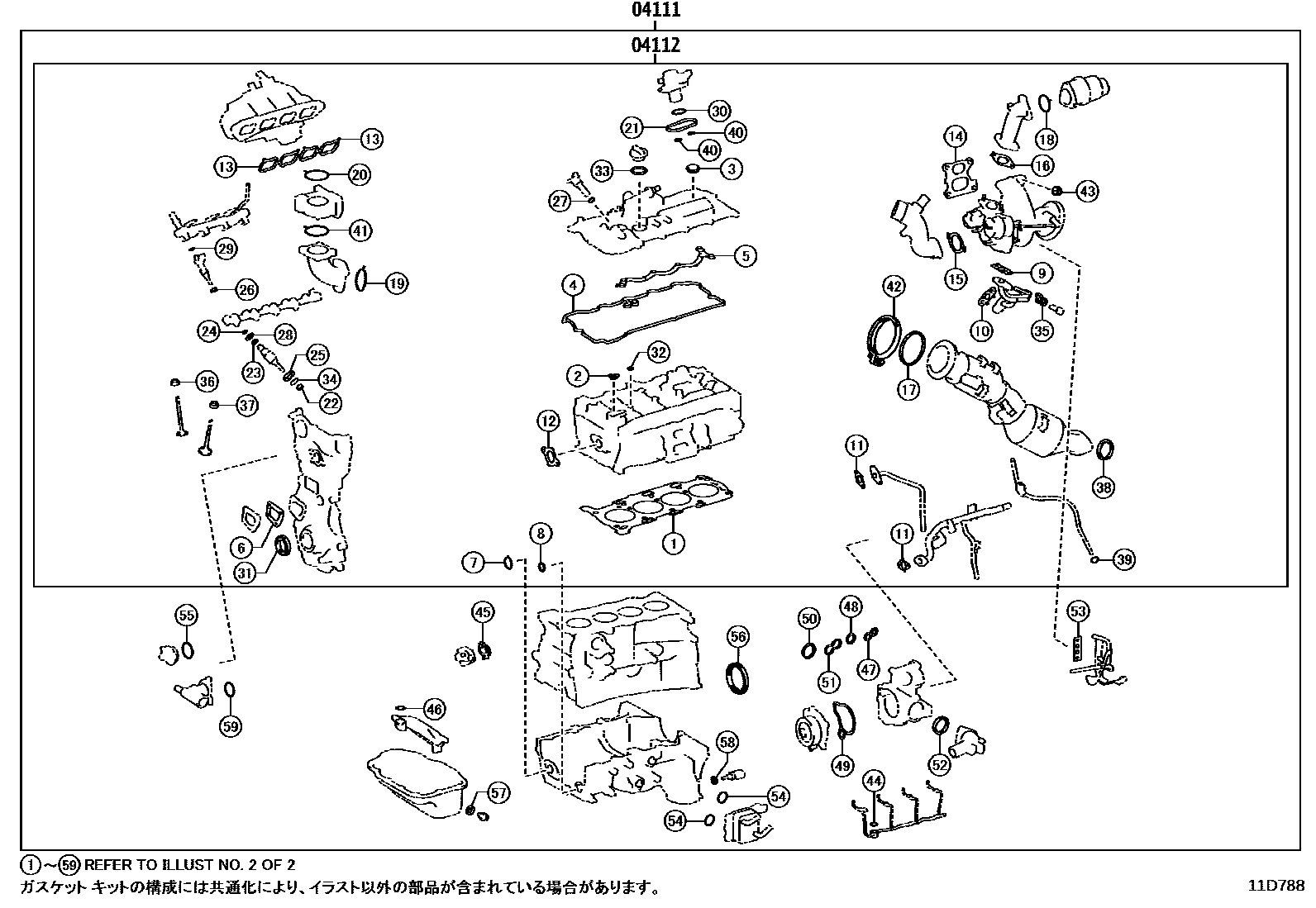

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-25140i201806-202108
sub04111-25141
main04111-25141i202108-202204
main04111-31C91i201806-202107
sub04111-31C92
main04111-31C92i202107-202112
sub04111-31C93
main04111-31C93i202112-202204
main04111-36291i201806-202004
main04111-36400i202004-202204
04112GASKET KIT, ENGINE VALVE GRIND
main04112-25080i201806-202108
sub04112-25081
main04112-25081i202108-202204
main04112-31A41i201806-202112
sub04112-31A42
main04112-31A42i202112-202204
main04112-36241i201806-202004
main04112-36350i202004-202204

2 parts on this diagram · 6 diagrams in section
