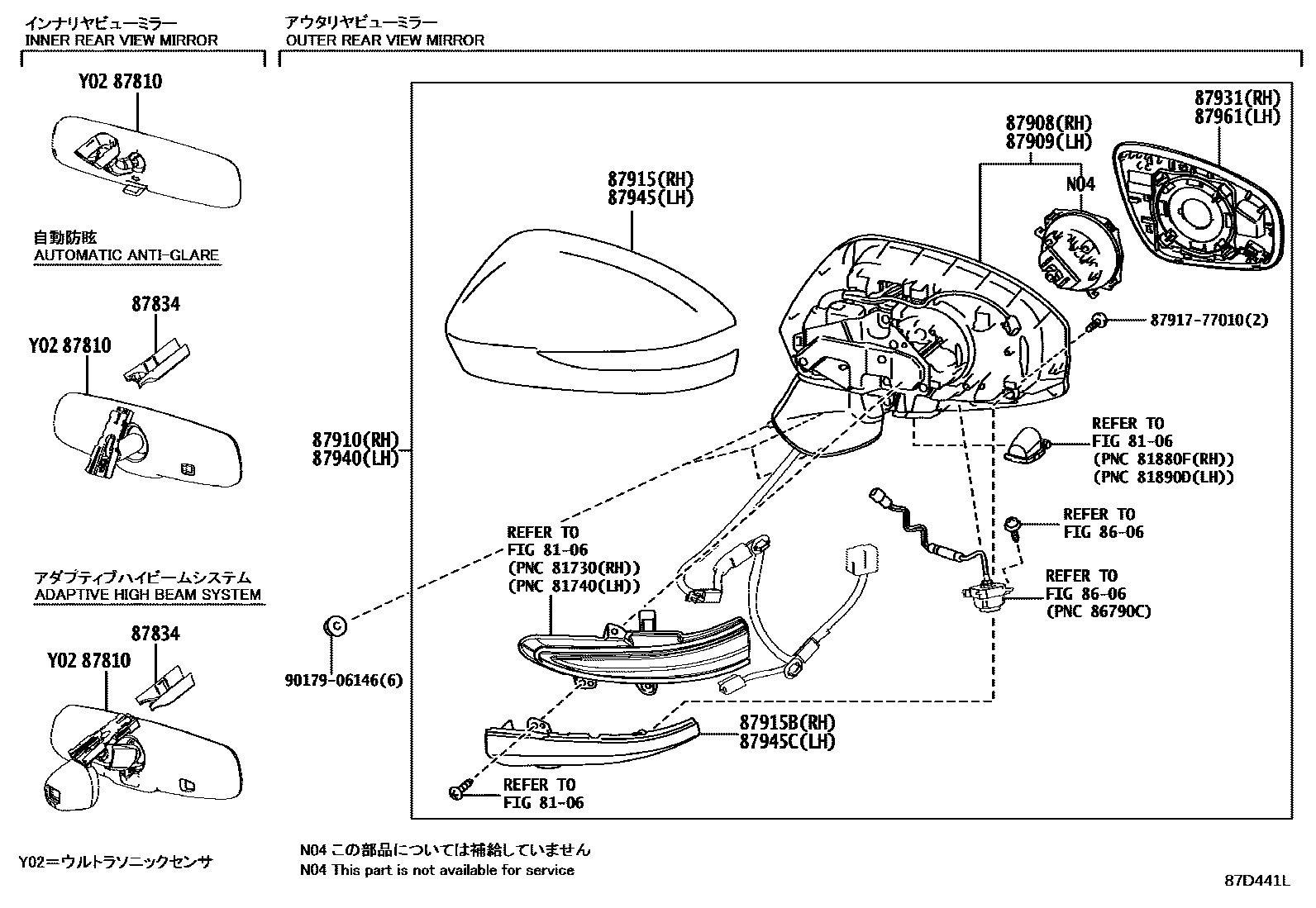

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WE40iAWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201212-201503

main87810-0WE41iAWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201504-201509

main87810-0WG90supersedes 87810-60191iARS210,AWS210,211,GRS21#..ATHS,ROY201608-201804

main87810-60191iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201212-201509

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-30060iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87818-30080iARS210,AWS210,211,GRS21#..ATHS,ROY201608-201804

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-30B10-A0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

WHITE PEARL CS.,062

main87908-30B10-B0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

SILVER ME.,1F7

main87908-30B10-B1iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

PRECIOUS SILVER,1J6

main87908-30B10-C0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

BLACK,202

main87908-30B10-C1iAWS210,GRS21#..ATH,ATHS201212-201312

PRECIOUS BLACK,219

main87908-30B10-D0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

DK.RED M.M.,3Q3

main87908-30B10-J0iAWS210,GRS210,211..ROY,ROYAL201212-201312

DK.BLUE M.M.,8S6

main87908-30B11-A0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

WHITE PEARL CS.,062

main87908-30B11-B0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

SILVER ME.,1F7

main87908-30B11-B1iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

PRECIOUS SILVER,1J6

main87908-30B11-C0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

BLACK,202

main87908-30B11-C1iAWS210,211,GRS21#..ATH,ATHS201312-201509

PRECIOUS BLACK,219

main87908-30B11-D0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

DK RED M.M.,3Q3

main87908-30B11-J0iAWS210,211,GRS210,211..ROY,ROYAL201312-201509

DK.BLUE MC.,8S6

main87908-30D70-A0iAWS210,GRS21#..ATHG,ROYG201212-201312

WHITE PEARL CS.,062

main87908-30D70-B0iAWS210,GRS21#..ATHG,ROYG201212-201312

SILVER ME.,1F7

main87908-30D70-B1iAWS210,GRS21#..ATHG,ROYG201212-201312

PRECIOUS SILVER,1J6

main87908-30D70-C0iAWS210,GRS21#..ATHG,ROYG201212-201312

BLACK,202

main87908-30D70-C1iAWS210,GRS21#..ATHG201212-201312

PRECIOUS BLACK,219

main87908-30D70-D0iAWS210,GRS21#..ATHG,ROYG201212-201312

DK.RED M.M.,3Q3

main87908-30D70-J0iAWS210,GRS210,211..ROYG201212-201312

DK.BLUE M.M.,8S6

main87908-30D71-A0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

WHITE PEARL CS.,062

main87908-30D71-B0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

SILVER ME.,1F7

main87908-30D71-B1iAWS210,211,GRS21#..ATHG,ROYG201312-201509

PRECIOUS SILVER,1J6

main87908-30D71-C0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

BLACK,202

main87908-30D71-C1iAWS210,211,GRS21#..ATHG201312-201509

PRECIOUS BLACK,219

main87908-30D71-D0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

DK. RED M.M.,3Q3

main87908-30D71-J0iAWS210,211,GRS210,211..ROYG201312-201509

DK.BLUE MC.,8S6

main87908-30B40-A0supersedes 87908-30B30-A0iGWS214201309-201312

main87908-30B40-B0supersedes 87908-30B30-B0iGWS214201309-201312

main87908-30B40-B1supersedes 87908-30B30-B1iGWS214201309-201312

main87908-30B40-C0supersedes 87908-30B30-C0iGWS214201309-201312

main87908-30B40-D0supersedes 87908-30B30-D0iGWS214201309-201312

main87908-30B40-J0supersedes 87908-30B30-J0iGWS214201309-201312

main87908-30B41-A0supersedes 87908-30B31-A0iAWS215,GWS214201312-201509

main87908-30B41-B0supersedes 87908-30B31-B0iAWS215,GWS214201312-201509

main87908-30B41-B1supersedes 87908-30B31-B1iAWS215,GWS214201312-201509

main87908-30B41-C0supersedes 87908-30B31-C0iAWS215,GWS214201312-201509

main87908-30B41-C1supersedes 87908-30B31-C1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30B41-D0supersedes 87908-30B31-D0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87908-30B41-J0supersedes 87908-30B31-J0iAWS215,GWS214201312-201509

main87908-30D70-D1iAWS210,GRS211..ATHG201312-201402

main87908-30D80-A0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87908-30D80-B0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87908-30D80-B1iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87908-30D80-C0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87908-30D80-C1iAWS210,GRS21#..ATHG,ATHS201212-201312

main87908-30D80-D0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87908-30D80-D1iAWS210,GRS211..ATHG201312-201402

main87908-30D80-J0iAWS210,GRS210,211..ROY,ROYG201212-201312

main87908-30D81-A0iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87908-30D81-B0iAWS210,211..ROY201407-201509

main87908-30D81-B1iAWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG201312-201509

main87908-30D81-C0iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87908-30D81-C1iAWS210,211..ROY201407-201509

main87908-30D81-D0iGRS210,211..ATHG,ATHS,ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROYG201312-201509

main87908-30D81-G0supersedes 87908-30B11-G0iAWS210,211..ATHS201506-201509

main87908-30D81-J0iAWS210..ROY201407-201509

main87908-30D81-J1supersedes 87908-30B11-J1iAWS210,211..ATHS201506-201509

main87908-30F30-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-D0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87908-30F30-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-J1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F30-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-D1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87908-30F40-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-J1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F40-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87908-30F50-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87908-30F50-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-J1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F50-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87908-30F60-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-J1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87908-30F60-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-30B70-A0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

WHITE PEARL CS.,062

main87909-30B70-B0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

SILVER ME.,1F7

main87909-30B70-B1iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

PRECIOUS SILVER,1J6

main87909-30B70-C0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

BLACK,202

main87909-30B70-C1iAWS210,GRS21#..ATH,ATHS201212-201312

PRECIOUS BLACK,219

main87909-30B70-D0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201312

DK.RED M.M.,3Q3

main87909-30B70-J0iAWS210,GRS210,211..ROY,ROYAL201212-201312

DK.BLUE M.M.,8S6

main87909-30B71-A0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

WHITE PEARL CS.,062

main87909-30B71-B0iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201312-201509

SILVER ME.,1F7

main87909-30B71-B1iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

PRECIOUS SILVER,1J6

main87909-30B71-C0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

BLACK,202

main87909-30B71-C1iAWS210,211,GRS21#..ATH,ATHS201312-201509

PRECIOUS BLACK,219

main87909-30B71-D0iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201312-201509

DK.RED M.M.,3Q3

main87909-30B71-J0iAWS210,211,GRS210,211..ROY,ROYAL201509-201804

DK.BLUE MC.,8S6

main87909-30B80-A0iAWS210,GRS21#..ATHG,ROYG201212-201312

WHITE PEARL CS.,062

main87909-30B80-B0iAWS210,GRS21#..ATHG,ROYG201212-201312

SILVER ME.,1F7

main87909-30B80-B1iAWS210,GRS21#..ATHG,ROYG201212-201312

PRECIOUS SILVER,1J6

main87909-30B80-C0iAWS210,GRS21#..ATHG,ROYG201212-201312

BLACK,202

main87909-30B80-C1iAWS210,GRS21#..ATHG201212-201312

PRECIOUS BLACK,219

main87909-30B80-D0iAWS210,GRS21#..ATHG,ROYG201212-201312

DK.RED M.M.,3Q3

main87909-30B80-J0iAWS210,GRS210,211..ROYG201212-201312

DK.BLUE M.M.,8S6

main87909-30B81-A0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

WHITE PEARL CS.,062

main87909-30B81-B0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

SILVER ME.,1F7

main87909-30B81-B1iAWS210,211,GRS21#..ATHG,ROYG201312-201509

PRECIOUS SILVER,1J6

main87909-30B81-C0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

BLACK,202

main87909-30B81-C1iAWS210,211,GRS21#..ATHG201312-201509

PRECIOUS BLACK,219

main87909-30B81-D0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

DK. RED M.M.,3Q3

main87909-30B81-J0iAWS210,211,GRS210,211..ROYG201312-201509

DK.BLUE MC.,8S6

main87909-30B80-D1iAWS210,GRS211..ATHG201312-201402

main87909-30C10-A0supersedes 87909-30C00-A0iGWS214201309-201312

main87909-30C10-B0supersedes 87909-30C00-B0iGWS214201309-201312

main87909-30C10-B1supersedes 87909-30C00-B1iGWS214201309-201312

main87909-30C10-C0supersedes 87909-30C00-C0iGWS214201309-201312

main87909-30C10-D0supersedes 87909-30C00-D0iGWS214201309-201312

main87909-30C10-J0supersedes 87909-30C00-J0iGWS214201309-201312

main87909-30C11-A0supersedes 87909-30C01-A0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87909-30C11-B0supersedes 87909-30C01-B0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87909-30C11-B1supersedes 87909-30C01-B1iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87909-30C11-C0supersedes 87909-30C01-C0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87909-30C11-C1supersedes 87909-30C01-C1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30C11-D0supersedes 87909-30C01-D0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87909-30C11-J0supersedes 87909-30C01-J0iAWS21#,GRS210,211,GWS214..MJ,ROYG201509-201804

main87909-30E60-A0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87909-30E60-B0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87909-30E60-B1iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87909-30E60-C0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87909-30E60-C1iAWS210,GRS21#..ATHG,ATHS201212-201312

main87909-30E60-D0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201312

main87909-30E60-D1iAWS210,GRS211..ATHG201312-201402

main87909-30E60-J0iAWS210,GRS210,211..ROY,ROYG201212-201312

main87909-30E61-A0iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87909-30E61-B0iAWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG201312-201509

main87909-30E61-B1iAWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG201312-201509

main87909-30E61-C0iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87909-30E61-C1iGRS210,211..ATHG,ATHS;AWS210,211,GRS214..ATHG,ATHS,ROY201312-201509

main87909-30E61-D0iGRS210,211..ATHG,ATHS,ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROYG201312-201509

main87909-30E61-G0supersedes 87909-30B71-G0iAWS210,211..ATHS201506-201509

main87909-30E61-J0iAWS210,211..ROYG;GRS210,211..ROY,ROYG201312-201509

main87909-30E61-J1supersedes 87909-30B71-J1iAWS210,211..ATHS201506-201509

main87909-30G20-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-D0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87909-30G20-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-J1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G20-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-D1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87909-30G30-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-J1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G30-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87909-30G40-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87909-30G40-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-J1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G40-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87909-30G50-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-J1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87909-30G50-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30B10-A0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

WHITE PEARL CS.,062

main87910-30B10-B0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

SILVER ME.,1F7

main87910-30B10-B1iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

PRECIOUS SILVER,1J6

main87910-30B10-C0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

BLACK,202

main87910-30B10-C1iAWS210,GRS21#..ATH,ATHS201212-201311

PRECIOUS BLACK,219

main87910-30B10-D0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

DK. RED M.M.,3Q3

main87910-30B10-J0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

DK.BLUE MC.,8S6

main87910-30B11-A0iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201312-201509

WHITE PEARL CS.,062

main87910-30B11-B0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

SILVER ME.,1F7

main87910-30B11-B1iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

PRECIOUS SILVER,1J6

main87910-30B11-C0iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201312-201509

BLACK,202

main87910-30B11-C1iARS210,AWS210,211,GRS211,214..ATH,ATHS201509-201804

PRECIOUS BLACK,219

main87910-30B11-D0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

DK. RED M.M.,3Q3

main87910-30B11-J0iAWS210,211,GRS210,211..ROY,ROYAL201312-201509

DK.BLUE MC.,8S6

main87910-30D70-A0iAWS210,GRS21#..ATHG,ROYG201212-201311

WHITE PEARL CS.,062

main87910-30D70-B0iAWS210,GRS21#..ATHG,ROYG201212-201311

SILVER ME.,1F7

main87910-30D70-B1iAWS210,GRS21#..ATHG,ROYG201212-201311

PRECIOUS SILVER,1J6

main87910-30D70-C0iAWS210,GRS21#..ATHG,ROYG201212-201311

BLACK,202

main87910-30D70-C1iAWS210,GRS21#..ATHG201212-201311

PRECIOUS BLACK,219

main87910-30D70-D0iAWS210,GRS21#..ATHG,ROYG201212-201311

DK. RED M.M.,3Q3

main87910-30D70-J0iAWS210,GRS21#..ATHG,ROYG201212-201311

DK.BLUE MC.,8S6

main87910-30D71-A0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

WHITE PEARL CS.,062

main87910-30D71-B0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

SILVER ME.,1F7

main87910-30D71-B1iAWS210,211,GRS21#..ATHG,ROYG201312-201509

PRECIOUS SILVER,1J6

main87910-30D71-C0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

BLACK,202

main87910-30D71-C1iAWS210,211,GRS21#..ATHG201312-201509

PRECIOUS BLACK,219

main87910-30D71-D0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

DK. RED M.M.,3Q3

main87910-30D71-J0iAWS210,211,GRS210,211..ROYG201312-201509

DK.BLUE MC.,8S6

main87910-30B40-A0supersedes 87910-30B30-A0iGWS214201309-201311

main87910-30B40-B0supersedes 87910-30B30-B0iGWS214201309-201311

main87910-30B40-B1supersedes 87910-30B30-B1iGWS214201309-201311

main87910-30B40-C0supersedes 87910-30B30-C0iGWS214201309-201311

main87910-30B40-D0supersedes 87910-30B30-D0iGWS214201309-201311

main87910-30B40-J0supersedes 87910-30B30-J0iGWS214201309-201311

main87910-30B41-A0supersedes 87910-30B31-A0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87910-30B41-B0supersedes 87910-30B31-B0iAWS215,GWS214201312-201509

main87910-30B41-B1supersedes 87910-30B31-B1iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87910-30B41-C0supersedes 87910-30B31-C0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87910-30B41-C1supersedes 87910-30B31-C1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30B41-D0supersedes 87910-30B31-D0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87910-30B41-J0supersedes 87910-30B31-J0iAWS21#,GRS210,211,GWS214..MJ,ROYG201509-201804

main87910-30D70-D1iAWS210,GRS211..ATHG201312-201402

main87910-30D80-A0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87910-30D80-B0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87910-30D80-B1iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87910-30D80-C0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87910-30D80-C1iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87910-30D80-D0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87910-30D80-D1iAWS210,GRS211..ATHG201312-201402

main87910-30D80-J0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87910-30D81-A0iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87910-30D81-B0iAWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG201312-201509

main87910-30D81-B1iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87910-30D81-C0iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87910-30D81-C1iGRS210,211..ATHG,ATHS;AWS210,211,GRS214..ATHG,ATHS,ROY201312-201509

main87910-30D81-D0iGRS210,211..ATHG,ATHS,ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROYG201312-201509

main87910-30D81-G2supersedes 87910-30B11-G2iAWS210,211..ATHS201506-201509

main87910-30D81-J0iAWS210,211,GRS210,211..ROY,ROYG201312-201509

main87910-30D81-J4supersedes 87910-30B11-J4iAWS210,211..ATHS201506-201509

main87910-30F30-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-D1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87910-30F30-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F30-J3iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-D1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87910-30F40-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F40-J3iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87910-30F50-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87910-30F50-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F50-J3iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87910-30F60-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87910-30F60-J3iARS210,AWS210,211,GRS211,214..ATHG201509-201804

87915COVER, OUTER MIRROR, RH

main8791A-30B10-A0iAWS21#,GRS21#,GWS214201212-201509

WHITE PEARL CS.,062

main8791A-30B10-B0iAWS21#,GRS21#,GWS214201212-201509

SILVER ME.,1F7

main8791A-30B10-B1iAWS21#,GRS21#,GWS214201212-201509

PRECIOUS SILVER,1J6

main8791A-30B10-C0iARS210,AWS21#,GRS21#,GWS214201509-201804

BLACK,202

main8791A-30B10-C1iARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS201509-201804

PRECIOUS BLACK,219

main8791A-30B10-D0iAWS21#,GRS21#,GWS214201212-201509

DK.RED M.M.,3Q3

main8791A-30B10-G0iAWS210,211..ATHS201506-201509

LUMINOUS GREEN M.M.,6W5

main8791A-30B10-J0iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201212-201509

DK.BLUE M.M.,8S6

main8791A-30B10-J1iAWS210,211..ATHS201506-201509

COOL SODA ME.,8V7

main87915-30010-B0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87915-30010-D1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87915-30010-D3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201512-201804

main87915-30010-E0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87915-30010-E1iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87915-30010-E2iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87915-30010-F0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHG,ATHS; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87915-30010-G0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87915-30010-G1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87915-30010-J0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87915-30010-J2iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87915-30010-J3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main8791A-30B10-D2iAWS210,GRS211..ATHG201312-201402

87915BCOVER, OUTER MIRROR, LOWER RH

main87939-30B10-A0iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201212-201509

WHITE PEARL CS.,062

main87939-30B10-B0iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201212-201509

SILVER ME.,1F7

main87939-30B10-B1iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

PRECIOUS SILVER,1J6

main87939-30B10-C0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

BLACK,202

main87939-30B10-C1iARS210,AWS210,211,GRS211,214..ATH,ATHS201509-201804

PRECIOUS BLACK,219

main87939-30B10-D0iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201212-201509

DK.RED M.M.,3Q3

main87939-30B10-J0iAWS210,211,GRS210,211..ROY,ROYAL201212-201509

DK.BLUE M.M.,8S6

main87939-30D70-A0iAWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201212-201509

WHITE PEARL CS.,062

main87939-30D70-B0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

SILVER ME.,1F7

main87939-30D70-B1iAWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201212-201509

PRECIOUS SILVER,1J6

main87939-30D70-C0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

BLACK,202

main87939-30D70-C1iAWS210,211,GRS21#..ATHG201212-201509

PRECIOUS BLACK,219

main87939-30D70-D0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

DK.RED M.M.,3Q3

main87939-30D70-J0iAWS21#,GRS210,211,GWS214..MJ,ROYG201212-201509

DK.BLUE M.M.,8S6

main87916-30010-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-D1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87916-30010-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30010-J3iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30030-B0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87916-30030-D1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30030-D3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201512-201804

main87916-30030-E0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30030-E1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30030-E2iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30030-F0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30030-G0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30030-G1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30030-J0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87916-30030-J2iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87916-30030-J3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87916-30050-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87916-30050-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30050-J3iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87939-30D70-D1iAWS210,GRS211..ATHG201312-201402

main87939-30D80-A0iAWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG201212-201509

main87939-30D80-B0iAWS210,211..ROY201407-201509

main87939-30D80-B1iGWS214201212-201312

main87939-30D80-C0iGWS214201212-201312

main87939-30D80-C1iAWS210..ROY201312-201509

main87939-30D80-D0iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201509-201804

main87939-30D80-D1iAWS210,GRS211..ATHG201312-201402

main87939-30D80-G0supersedes 87939-30B10-G0iAWS210,211..ATHS201506-201509

main87939-30D80-J0iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201509-201804

main87939-30D80-J1supersedes 87939-30B10-J1iAWS210,211..ATHS201506-201509

87931OUTER MIRROR, RH

main87931-30B10iAWS210,211,GRS21#201212-201509

main87931-30B30iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30B70-A0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

WHITE PEARL CS.,062

main87940-30B70-B0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

SILVER ME.,1F7

main87940-30B70-B1iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

PRECIOUS SILVER,1J6

main87940-30B70-C0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

BLACK,202

main87940-30B70-C1iAWS210,GRS21#..ATH,ATHS201212-201311

PRECIOUS BLACK,219

main87940-30B70-D0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

DK. RED M.M.,3Q3

main87940-30B70-J0iAWS210,GRS21#..ATH,ATHS,ROY,ROYAL201212-201311

DK.BLUE MC.,8S6

main87940-30B71-A0iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201312-201509

WHITE PEARL CS.,062

main87940-30B71-B0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

SILVER ME.,1F7

main87940-30B71-B1iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201312-201509

PRECIOUS SILVER,1J6

main87940-30B71-C0iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201312-201509

BLACK,202

main87940-30B71-C1iARS210,AWS210,211,GRS211,214..ATH,ATHS201509-201804

PRECIOUS BLACK,219

main87940-30B71-D0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

DK. RED M.M.,3Q3

main87940-30B71-J0iAWS210,211,GRS210,211..ROY,ROYAL201312-201509

DK.BLUE MC.,8S6

main87940-30B80-A0iAWS210,GRS21#..ATHG,ROYG201212-201311

WHITE PEARL CS.,062

main87940-30B80-B0iAWS210,GRS21#..ATHG,ROYG201212-201311

SILVER ME.,1F7

main87940-30B80-B1iAWS210,GRS21#..ATHG,ROYG201212-201311

PRECIOUS SILVER,1J6

main87940-30B80-C0iAWS210,GRS21#..ATHG,ROYG201212-201311

BLACK,202

main87940-30B80-C1iAWS210,GRS21#..ATHG201212-201311

PRECIOUS BLACK,219

main87940-30B80-D0iAWS210,GRS21#..ATHG,ROYG201212-201311

DK. RED M.M.,3Q3

main87940-30B80-J0iAWS210,GRS21#..ATHG,ROYG201212-201311

DK.BLUE MC.,8S6

main87940-30B81-A0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

WHITE PEARL CS.,062

main87940-30B81-B0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

SILVER ME.,1F7

main87940-30B81-B1iAWS210,211,GRS21#..ATHG,ROYG201312-201509

PRECIOUS SILVER,1J6

main87940-30B81-C0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

BLACK,202

main87940-30B81-C1iAWS210,211,GRS21#..ATHG201312-201509

PRECIOUS BLACK,219

main87940-30B81-D0iAWS210,211,GRS21#..ATHG,ROYG201312-201509

DK. RED M.M.,3Q3

main87940-30B81-J0iAWS210,211,GRS210,211..ROYG201312-201509

DK.BLUE MC.,8S6

main87940-30B80-D1iAWS210,GRS211..ATHG201312-201402

main87940-30C10-A0supersedes 87940-30C00-A0iGWS214201309-201311

main87940-30C10-B0supersedes 87940-30C00-B0iGWS214201309-201311

main87940-30C10-B1supersedes 87940-30C00-B1iGWS214201309-201311

main87940-30C10-C0supersedes 87940-30C00-C0iGWS214201309-201311

main87940-30C10-D0supersedes 87940-30C00-D0iGWS214201309-201311

main87940-30C10-J0supersedes 87940-30C00-J0iGWS214201309-201311

main87940-30C11-A0supersedes 87940-30C01-A0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87940-30C11-B0supersedes 87940-30C01-B0iAWS215,GWS214201312-201509

main87940-30C11-B1supersedes 87940-30C01-B1iAWS215,GWS214201312-201509

main87940-30C11-C0supersedes 87940-30C01-C0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87940-30C11-C1supersedes 87940-30C01-C1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30C11-D0supersedes 87940-30C01-D0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

main87940-30C11-J0supersedes 87940-30C01-J0iAWS215,GWS214201312-201509

main87940-30E60-A0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87940-30E60-B0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87940-30E60-B1iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87940-30E60-C0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87940-30E60-C1iAWS210,GRS21#..ATHG,ATHS201212-201311

main87940-30E60-D0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87940-30E60-D1iAWS210,GRS211..ATHG201312-201402

main87940-30E60-J0iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201311

main87940-30E61-A0iAWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG201312-201509

main87940-30E61-B0iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87940-30E61-B1iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87940-30E61-C0iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87940-30E61-C1iAWS210,211..ROY201407-201509

main87940-30E61-D0iARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main87940-30E61-G2supersedes 87940-30B71-G2iAWS210,211..ATHS201506-201509

main87940-30E61-J0iAWS210,211,GRS210,211..ROY,ROYG201312-201509

main87940-30E61-J4supersedes 87940-30B71-J4iAWS210,211..ATHS201506-201509

main87940-30G20-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-D1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87940-30G20-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G20-J3iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-D1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87940-30G30-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G30-J3iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87940-30G40-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87940-30G40-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G40-J3iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87940-30G50-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87940-30G50-J3iARS210,AWS210,211,GRS211,214..ATHG201509-201804

87945COVER, OUTER MIRROR, LH

main8794A-30B70-A0iAWS21#,GRS21#,GWS214201212-201509

WHITE PEARL CS.,062

main8794A-30B70-B0iARS210,AWS21#,GRS21#,GWS214201509-201804

SILVER ME.,1F7

main8794A-30B70-B1iAWS21#,GRS21#,GWS214201212-201509

PRECIOUS SILVER,1J6

main8794A-30B70-C0iAWS21#,GRS21#,GWS214201212-201509

BLACK,202

main8794A-30B70-C1iAWS210,211,GRS21#..ATH,ATHG,ATHS201212-201509

PRECIOUS BLACK,219

main8794A-30B70-D0iAWS21#,GRS21#,GWS214201212-201509

DK.RED M.M.,3Q3

main8794A-30B70-G0iAWS210,211..ATHS201506-201509

LUMINOUS GREEN M.M.,6W5

main8794A-30B70-J0iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201212-201509

DK.BLUE M.M.,8S6

main8794A-30B70-J1iAWS210,211..ATHS201506-201509

COOL SODA ME.,8V7

main87945-30010-B0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87945-30010-D1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87945-30010-D3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201512-201804

main87945-30010-E0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87945-30010-E1iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87945-30010-E2iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87945-30010-F0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87945-30010-G0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87945-30010-G1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87945-30010-J0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87945-30010-J2iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87945-30010-J3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main8794A-30B70-D2iAWS210,GRS211..ATHG201312-201402

87945CCOVER, OUTER MIRROR, LOWER LH

main87948-30B70-A0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

WHITE PEARL CS.,062

main87948-30B70-B0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

SILVER ME.,1F7

main87948-30B70-B1iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201212-201509

PRECIOUS SILVER,1J6

main87948-30B70-C0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

BLACK,202

main87948-30B70-C1iARS210,AWS210,211,GRS211,214..ATH,ATHS201509-201804

PRECIOUS BLACK,219

main87948-30B70-D0iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

DK.RED M.M.,3Q3

main87948-30B70-J0iAWS210,211,GRS210,211..ROY,ROYAL201212-201509

DK.BLUE M.M.,8S6

main87948-30B80-A0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

WHITE PEARL CS.,062

main87948-30B80-B0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

SILVER ME.,1F7

main87948-30B80-B1iAWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201212-201509

PRECIOUS SILVER,1J6

main87948-30B80-C0iAWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201212-201509

BLACK,202

main87948-30B80-C1iAWS210,211,GRS21#..ATHG201212-201509

PRECIOUS BLACK,219

main87948-30B80-D0iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

DK.RED M.M.,3Q3

main87948-30B80-J0iAWS21#,GRS210,211,GWS214..MJ,ROYG201509-201804

DK.BLUE M.M.,8S6

main87916-30070-B0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-D1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-D3iARS210,AWS210,211,GRS211,214..ATHS201512-201804

main87916-30070-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-E1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-E2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-F0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-G0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-G1iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-J0iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-J2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30070-J3iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30090-B0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87916-30090-D1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30090-D3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201512-201804

main87916-30090-E0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30090-E1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30090-E2iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30090-F0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30090-G0iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30090-G1iARS210,AWS210,211,GRS211,214..ATHG; ARS210,AWS210,211,GRS211,214..ATHS201509-201804

main87916-30090-J0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87916-30090-J2iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87916-30090-J3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main87916-30110-B0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-D1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-D3iARS210,AWS210,211,GRS211,214..ATHG201512-201804

main87916-30110-E0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-E1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-E2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-F0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-G0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-G1iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-J0iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-J2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87916-30110-J3iARS210,AWS210,211,GRS211,214..ATHG201509-201804

main87948-30B80-D1iAWS210,GRS211..ATHG201312-201402

main87948-30E60-A0iAWS210,211..ROY201407-201509

main87948-30E60-B0iGWS214201212-201312

main87948-30E60-B1iAWS215,GWS214201312-201509

main87948-30E60-C0iAWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG201212-201509

main87948-30E60-C1iAWS210,211..ROY201407-201509

main87948-30E60-D0iGRS210,211..ATHG,ATHS,ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROYG201212-201509

main87948-30E60-D1iAWS210,GRS211..ATHG201312-201402

main87948-30E60-G0supersedes 87948-30B70-G0iAWS210,211..ATHS201506-201509

main87948-30E60-J0iAWS210,GWS214..MJ,ROY201212-201312

main87948-30E60-J1supersedes 87948-30B70-J1iAWS210,211..ATHS201506-201509

87961MIRROR OUTER, LH

main87961-30B70iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201509-201804

main87961-30C00iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG201509-201804

8791777010ESCUTCHEON

main87917-77010

9017906146

main90179-06146

16 parts on this diagram · 1 diagram in section
