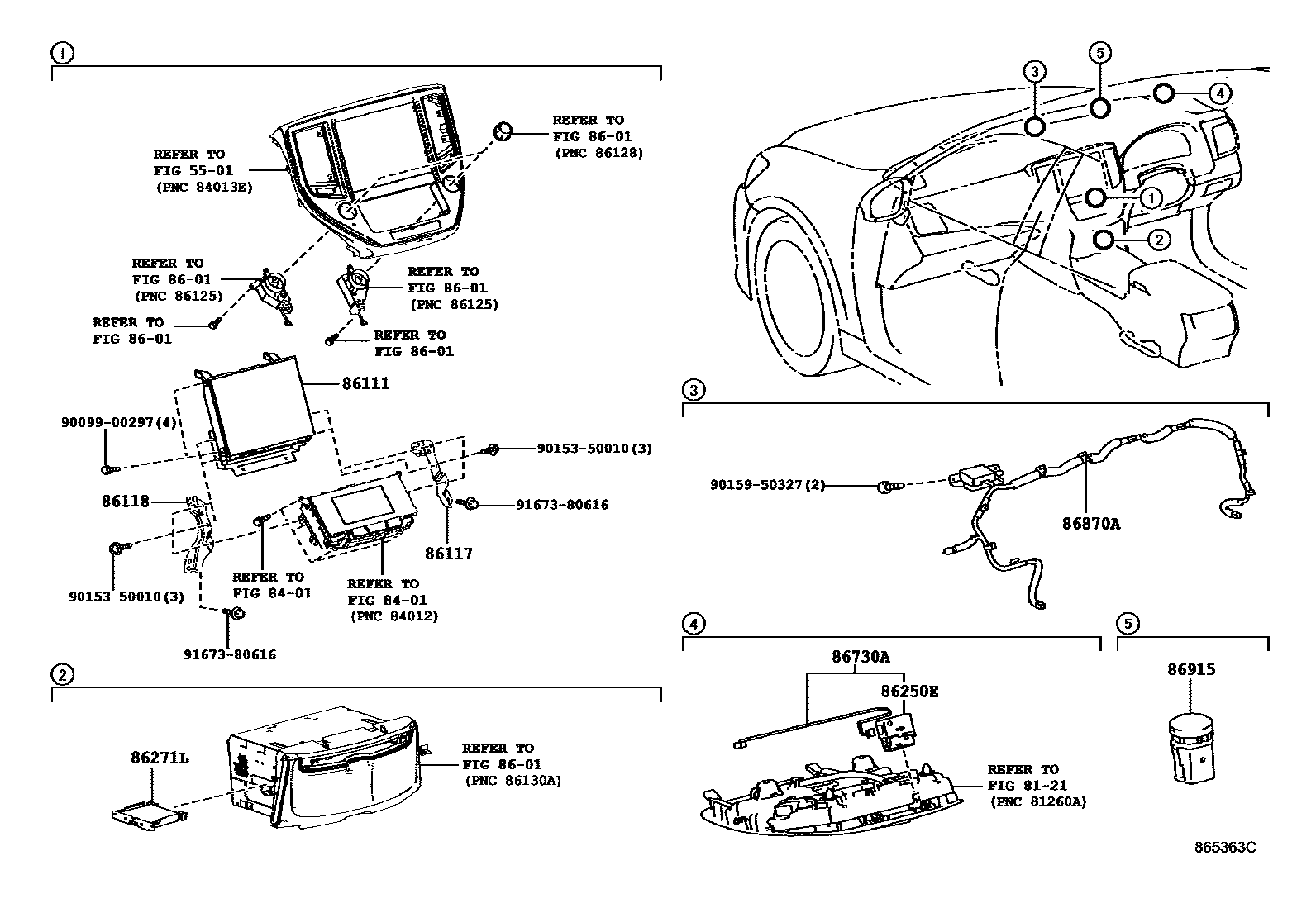

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8121INTERIOR LAMP

→ Go to FIG 81-21

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86111MULTI-DISPLAY

main86111-30A80iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS210,211..ATHS,ROY201509-201804

main86111-30B70iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG; AWS210,GRS210,211..ATHS,ROY201212-201308

main86111-30B71iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; AWS210,211,GRS210,211..ATHS,ROY201309-201509

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-30120iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS210,211..ATHS,ROY201509-201804

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-30080iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS210,211..ATHS,ROY201509-201804

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52020iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS210,211..ATHS,ROY201509-201804

86271DISC, DISC PLAYER

main86271-30891iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS210,211..ATHS,ROY; ARS210,AWS210,211..ATHS; AWS215,GWS214201608-201703

main86271-30892iARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG; ARS210,AWS210,211,GRS210,211..ATHS,ROY; ARS210,AWS210,211..ATHS; AWS215,GWS214201704-201709

main86271-30893iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS210,211..ATHS,ROY; ARS210,AWS210,211..ATHS201709-201804

main86271-30B70iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS210,211..ATHS,ROY; ARS210,AWS210,211..ATHS201509-201603

main86271-30B71iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS210,211..ATHS,ROY; ARS210,AWS210,211..ATHS; AWS215,GWS214201604-201608

86271LHARD DISC

main86271-30661iGRS21#..ATHG,ATHS,ROY,ROYG; GRS210,211..ATHS,ROY201212-201301

main86271-30662iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG; AWS210,GRS210,211..ATHS,ROY201301-201303

main86271-30663iAWS210,GRS21#..ATHG,ATHS,ROY,ROYG; AWS210,GRS210,211..ATHS,ROY201304-201308

main86271-30664iAWS210,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; AWS210,GRS210,211..ATHS,ROY201309-201403

main86271-30665iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; AWS210,211,GRS210,211..ATHS,ROY201404-201408

main86271-30666iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; AWS210,211,GRS210,211..ATHS,ROY201409-201503

main86271-30667iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; AWS210,211,GRS210,211..ATHS,ROY201504-201509

main86271-30860iAWS210,GRS211..ATHG201312-201402

86730AMICROPHONE ASSY, TELEPHONE

main86730-30160iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; AWS210,211,GRS210,211..ATHS,ROY201212-201509

86870AANTENNA ASSY, GPS & VICS

main86870-30160iARS210,AWS210,211,GRS21#..ATHS,ROY; ARS210,AWS210,211,GRS210,211..ATHS,ROY201509-201804

main86870-30180iAWS210,211,GRS21#..ATHS,ROY; AWS210,211,GRS210,211..ATHS,ROY201212-201509

main86880-30010supersedes 86870-30160iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG; ARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main86880-30040supersedes 86870-30160iARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG; ARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main86880-30070iAWS21#,GRS21#,GWS214..ATHG,MJ,ROYG; AWS210,211,GRS21#..ATHS,ROY; GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY; GRS210,211..ROYG;AWS210,211,GRS214..ATHG,ROYG201212-201509

main86880-30080supersedes 86870-30180iAWS21#,GRS21#,GWS214..ATHG,MJ,ROYG; AWS210,211,GRS21#..ATHS,ROY; GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY201212-201509

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iGRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG; GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY; GRS210,211..ROYG;AWS210,211,GRS214..ATHG,ROYG201212-201509

9009900297

main90099-00297

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

17 parts on this diagram · 2 diagrams in section
