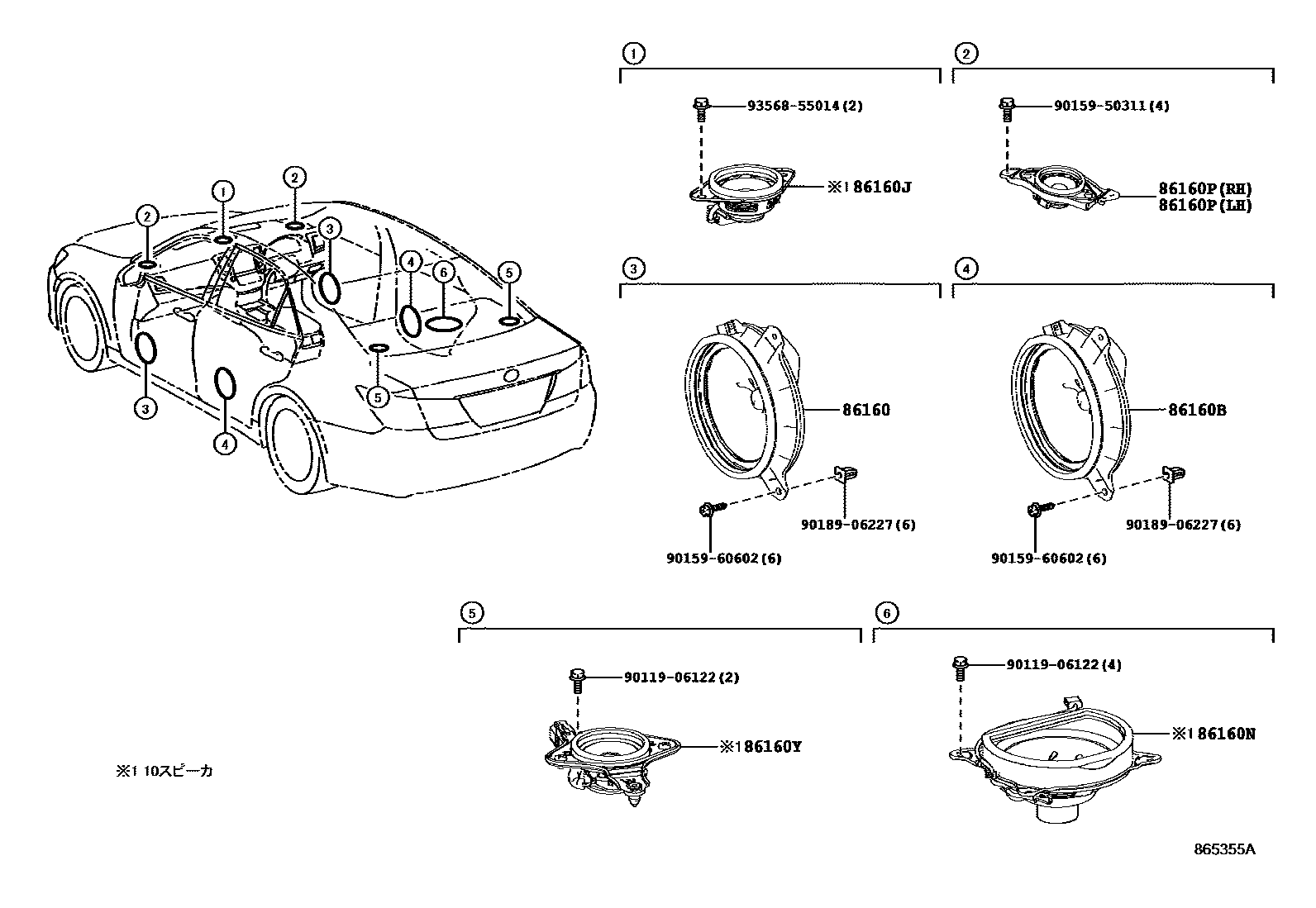

SPEAKER

0001 16����� & 10����� 0002 116����� & 18�����

86160SPEAKER ASSY, FRONT NO.1

main86160-30F50×2iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201509-201804

main86160-52300×2iARS210,AWS210,211,GRS210,211..ATH,ROYAL201509-201804

main86160-30B40×2iAWS215,GWS214; GRS211..ROY,ROYG;AWS210,211,GRS210,214..ATHG,ATHS,ROY,ROYG201509-201804

86160BSPEAKER ASSY, REAR

main86160-52300×2iAWS21#,GRS21#,GWS214201212-201509

main86160-30B70×2iAWS215,GWS214; GRS211..ROY,ROYG;AWS210,211,GRS210,214..ATHG,ATHS,ROY,ROYG201509-201804

86160JSPEAKER ASSY, FRONT NO.3

main86150-30440iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; AWS210,211,GRS210,211..ATHS,ROY201212-201509

main86160-30C80iAWS215,GWS214201309-201509

86160NSPEAKER ASSY, STEREO COMPONENT, REAR

main86150-30430iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201509

86160PSPEAKER ASSY, FRONT NO.2

main86150-30410iARS210,AWS21#,GRS21#,GWS214201509-201804

main86150-30420iARS210,AWS21#,GRS21#,GWS214201509-201804

main86150-30390iAWS215,GWS214; GRS211..ROY,ROYG;AWS210,211,GRS210,214..ATHG,ATHS,ROY,ROYG201509-201804

main86150-30400iAWS215,GWS214; GRS211..ROY,ROYG;AWS210,211,GRS210,214..ATHG,ATHS,ROY,ROYG201509-201804

86160YSPEAKER ASSY, REAR NO.2

main86150-30450×2iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201509

main86150-30460×2iAWS215,GWS214201309-201509

9011906122

main90119-06122

9015950311

main90159-50311

9015960602

main90159-60602

9018906227

main90189-06227

9356855014

main93568-55014

11 parts on this diagram · 2 diagrams in section
