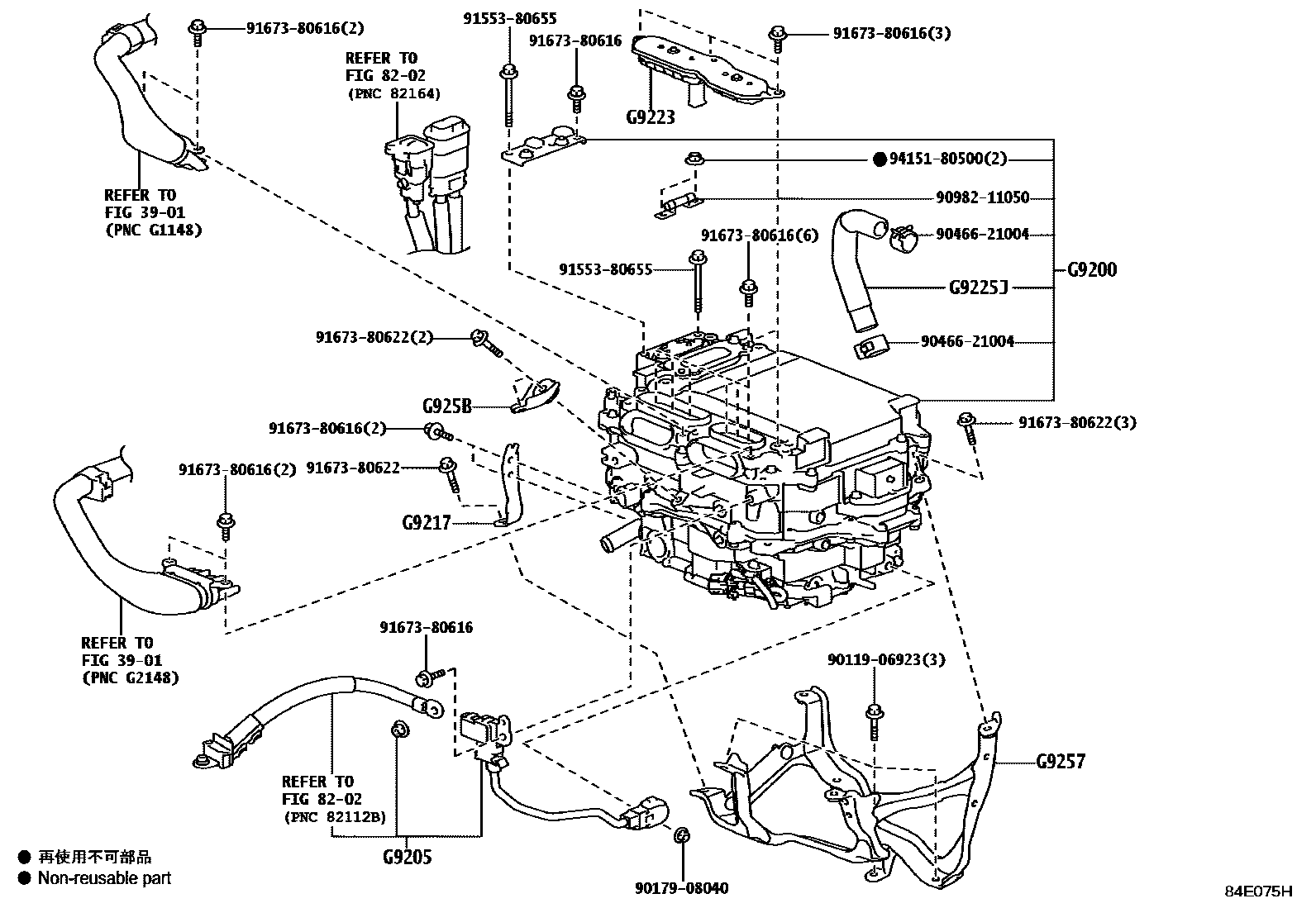

HEV INVERTER

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG92A030031iGWS214201509-201804

mainG92A030050iAWS210201301-201307

mainG92A030051iAWS210201308-201406

mainG92A030052iAWS21#201407-201509

G9205PLATE SUB-ASSY, INVERTER BUS-BAR

mainG920530020iAWS21#,GWS214201301-201509

G9217BRACKET, INVERTER, NO.4

mainG921730030iAWS21#,GWS214201509-201804

G9223COVER, INVERTER TERMINAL

mainG922330030iAWS210201301-201307

mainG922330031iAWS21#,GWS214201308-201509

G9225JHOSE, INVERTER COOLING, NO.1

mainG922530210iAWS21#,GWS214201301-201509

G9257BRACKET, INVERTER, NO.5

mainG925730050iAWS21#,GWS214201301-201509

G925BBRACKET, INVERTER, NO.6

mainG925B30050iAWS21#,GWS214201301-201509

9011906923

main90119-06923

9017908040

main90179-08040

9046621004

main90466-21004

9098211050

main90982-11050

9155380655

main91553-80655

9167380616

main91673-80616

9167380622

main91673-80622

9415180500

main94151-80500

17 parts on this diagram · 1 diagram in section
