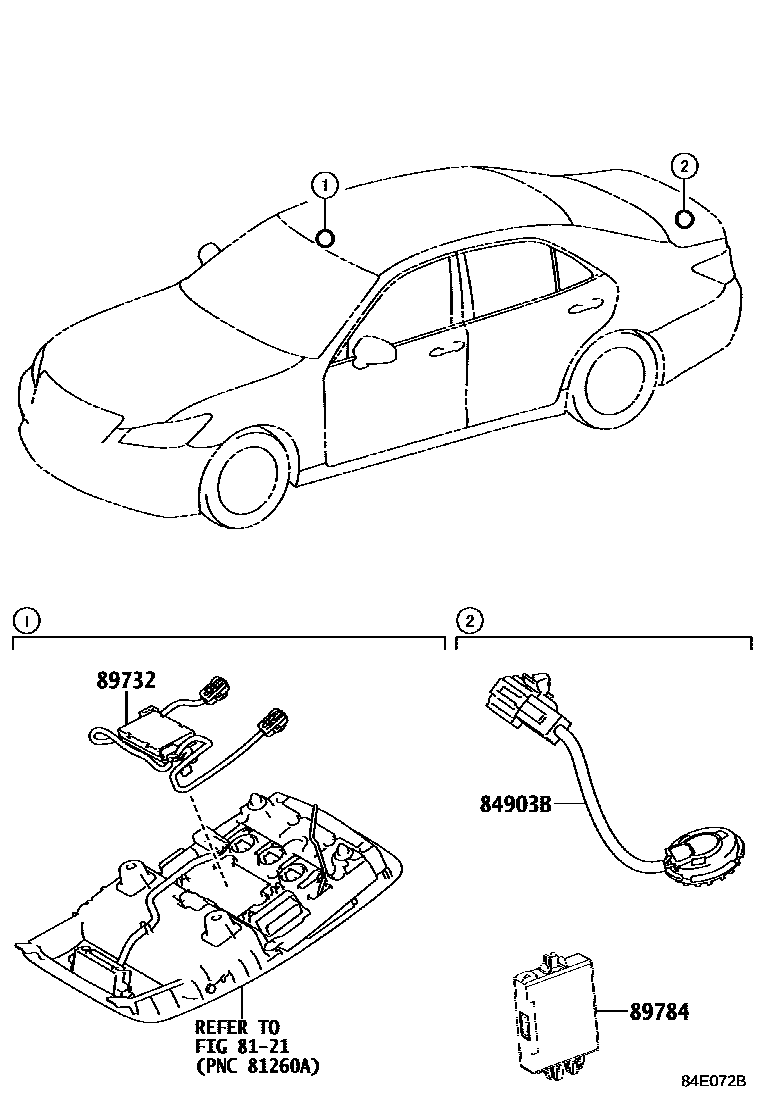

ANTI-THEFT DEVICE

8121INTERIOR LAMP

→ Go to FIG 81-21

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-30090iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201509

89732SENSOR, THEFT WARNING RADAR

main89732-30270iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201509

89784COMPUTER, IMMOBILIZER CODE

main89784-30060iAWS21#,GRS21#,GWS214201212-201509

main89784-53040iARS210,AWS21#,GRS21#,GWS214201509-201804

4 parts on this diagram · 1 diagram in section
