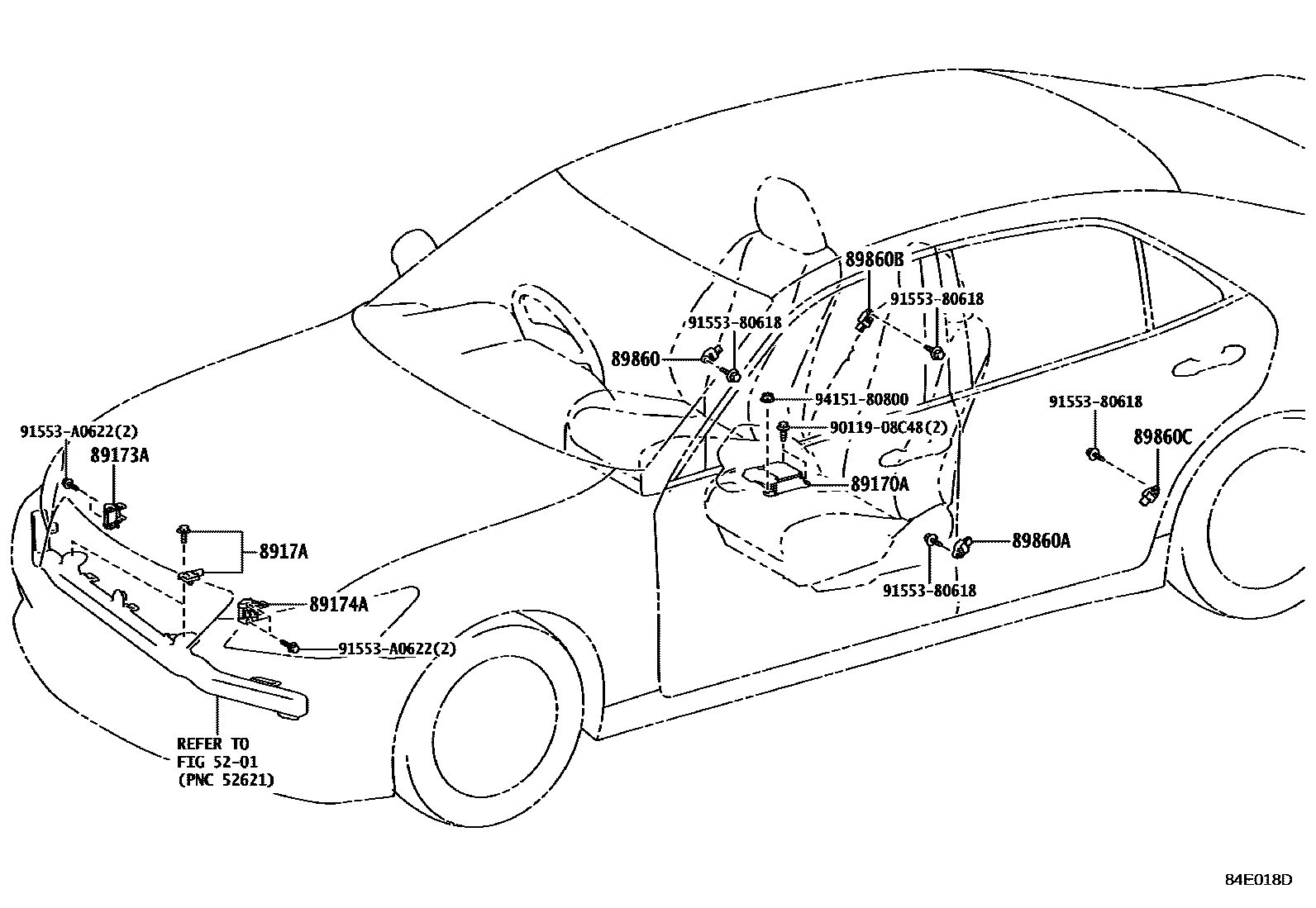

AIR BAG

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

89170ACOMPUTER ASSY, AIRBAG

main89170-30C90iGRS210..ROY201212-201509

main89170-30D00iGRS210,211..ROYG201212-201509

main89170-30D00iGRS210,211..ROYG201212-201509

main89170-30D10iGRS210..ROY,ROYAL201212-201509

main89170-30D30iAWS210,211..ROY,ROYAL201301-201509

main89170-30D40iAWS210,211..ROYG201301-201509

main89170-30D50iGWS214201309-201509

main89170-30D60iAWS215201407-201509

main89170-30D70iAWS210,211..ATH,ATHG,ATHS201301-201509

main89170-30E00iGRS211,214..ATH,ATHG,ATHS,ROY,ROYAL201509-201804

main89170-30E10iGRS210,211..ROYG201509-201804

main89170-30E20iGRS210..ROY201509-201804

main89170-30E50iAWS210,211..ROY201509-201804

main89170-30E60iARS210,AWS210,211..ATH,ATHG,ATHS,ROY,ROYAL201509-201804

main89170-30E70iGWS214201509-201608

main89170-30E80iGWS214201509-201608

main89170-30G50iGWS214201608-201804

main89170-30G60iAWS215201608-201804

main89170-30G60iAWS215201608-201804

89173ASENSOR, AIRBAG, FRONT RH

main89173-39495iAWS21#,GRS21#,GWS214201212-201804

89174ASENSOR, AIRBAG, FRONT LH

main89173-39495iAWS21#,GRS21#,GWS214201212-201804

8917ASENSOR, PEDESTRIAN PROTECTION

main8917A-30040iAWS210,GWS214201301-201401

main8917A-30060iAWS21#,GWS214201402-201804

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-12040iAWS21#,GRS21#,GWS214201212-201804

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-12040iAWS21#,GRS21#,GWS214201212-201804

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-12050iAWS21#,GRS21#,GWS214201212-201804

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-12050iAWS21#,GRS21#,GWS214201212-201804

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0622

main91553-A0622

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
