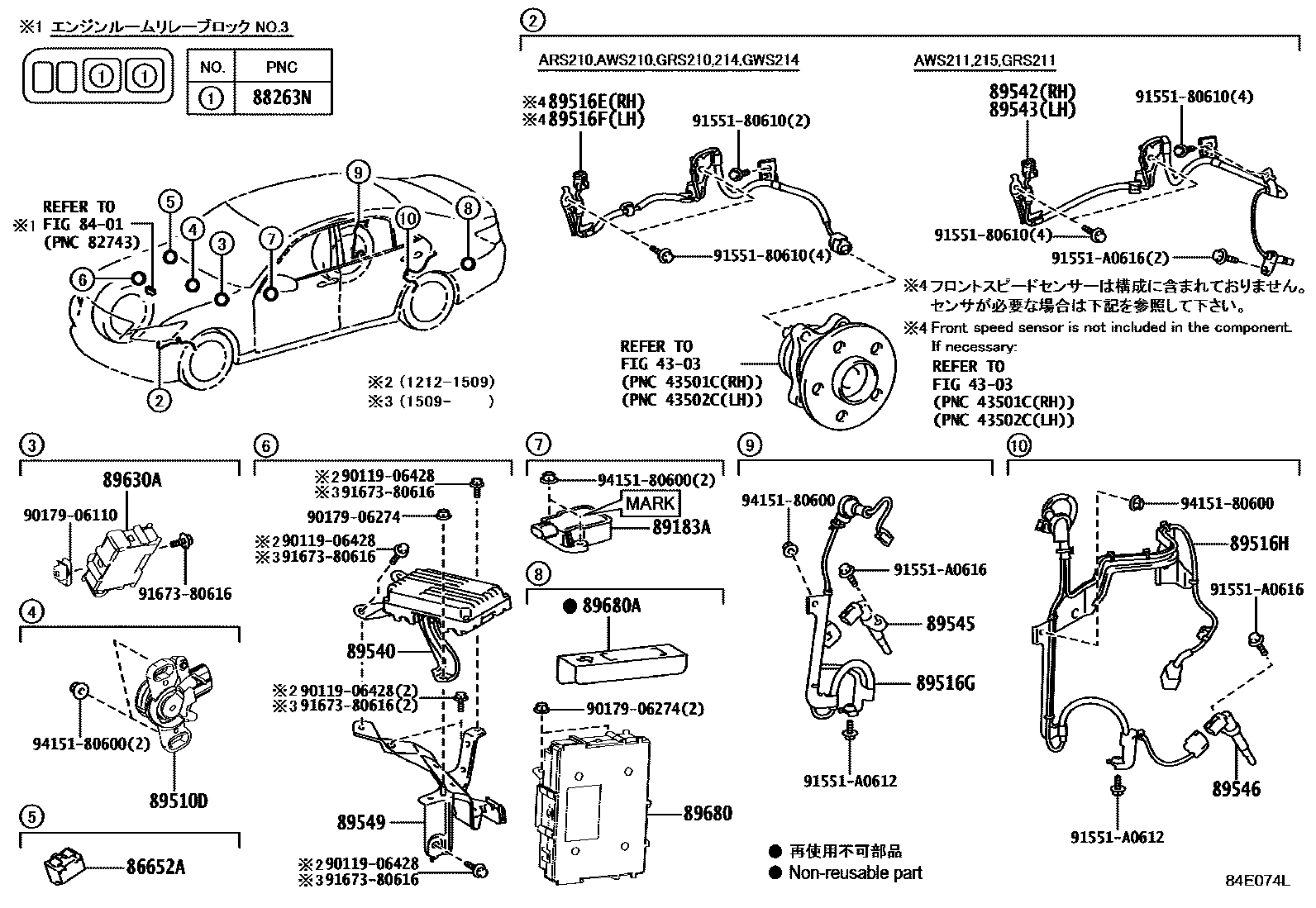

ABS & VSC

4303FRONT AXLE HUB

→ Go to FIG 43-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iAWS215201407-201509

88263NRELAY, ABS MOTOR

main88263-21010×2iAWS21#,GWS214201301-201509

89183ASENSOR, YAWRATE

main89183-30080iAWS21#,GRS211,214,GWS214;GRS210..ATH,ATHG,ATHS,ROYG; GRS210..ROY201212-201509

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iAWS21#,GWS214201301-201509

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-30180iAWS210,GRS210,214,GWS214201212-201509

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-30030iAWS210,GRS210,214,GWS214201212-201509

89516GWIRE, SKID CONTROL SENSOR, REAR RH NO.1

main89516-22020iAWS21#,GRS21#,GWS214201212-201509

89516HWIRE, SKID CONTROL SENSOR, REAR LH NO.1

main89516-22040iAWS21#,GRS21#,GWS214201212-201509

89540COMPUTER ASSY, SKID CONTROL

main89540-30E00iAWS210201301-201509

main89540-30E30iGWS214201309-201509

main89540-30E80iAWS211,215201407-201509

main89540-30E90iAWS210,211201509-201608

main89540-30F00iAWS215,GWS214201509-201608

main89540-30F10iAWS210,211201608-201804

main89540-30F20iAWS215,GWS214201608-201804

89542SENSOR, SPEED, FRONT RH

main89542-30290iAWS211,215,GRS211201212-201509

main89542-30291iAWS211,215,GRS211201604-201804

89543SENSOR, SPEED, FRONT LH

main89543-30290iAWS211,215,GRS211201212-201509

main89543-30291iAWS211,215,GRS211201604-201804

89545SENSOR, SPEED, REAR RH

main89545-30090iAWS21#,GRS21#,GWS214201212-201509

89546SENSOR, SPEED, REAR LH

main89546-30090iAWS21#,GRS21#,GWS214201212-201509

89549BRACKET, SKID CONTROL COMPUTER

main88269-30290iAWS21#,GWS214201301-201509

89630ACOMPUTER ASSY, 4WD

main89630-30200iGRS211201212-201509

89680SUPPLY ASSY, BRAKE CONTROL POWER

main896C0-30010iAWS21#,GWS214201301-201509

89680ACOVER, BRAKE CONTROL POWER SUPPLY

mainF197130030iAWS21#,GWS214201301-201509

9011906428

main90119-06428

9017906110

main90179-06110

9017906274

main90179-06274

9155180610

main91551-80610

91551A0612

main91551-A0612

91551A0616

main91551-A0616

9167380616

main91673-80616

9415180600

main94151-80600

27 parts on this diagram · 1 diagram in section
