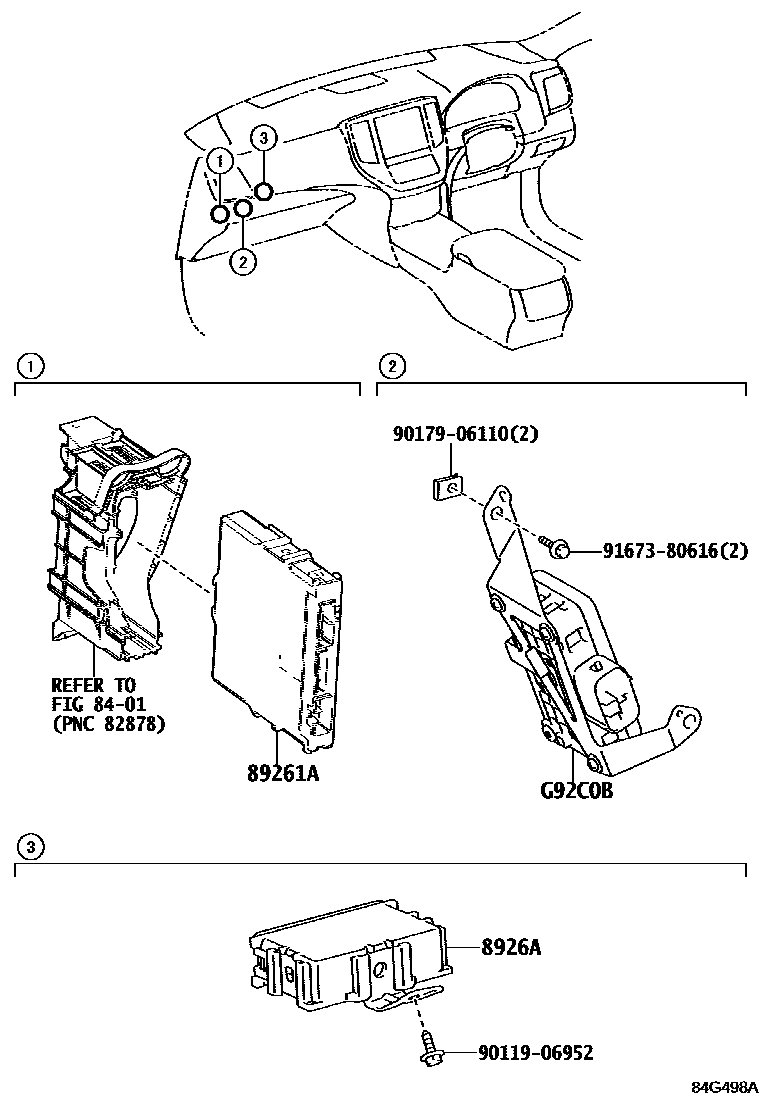

ECO-RUN SYSTEM

8401

89261ACOMPUTER, ENGINE STOP AND START

main89260-30010iARS210201509-201512

sub89260-30011

main89260-30011iARS210201601-201804

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-30030iARS210201509-201804

G92C0BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C053010iARS210..ATHG,ATHS201509-201804

9011906952

main90119-06952

9017906110

main90179-06110

9167380616

main91673-80616

7 parts on this diagram · 1 diagram in section
