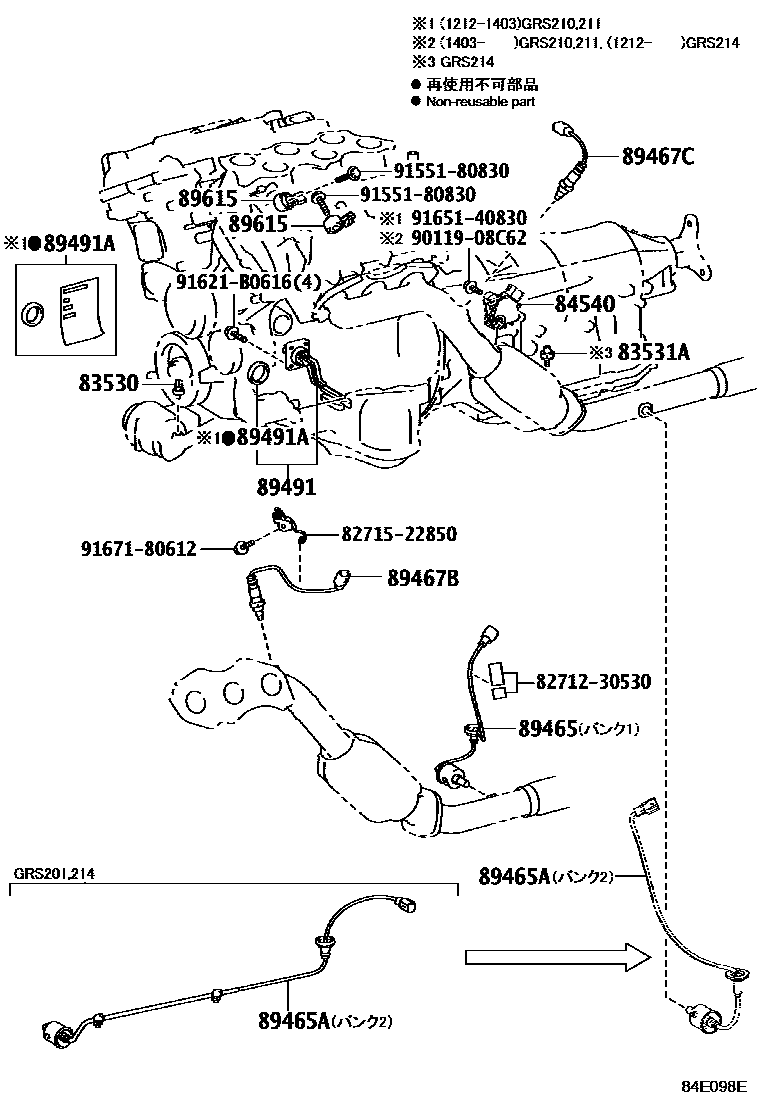

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAWS21#,GRS21#,GWS214201212-201804

83531ASWITCH, OIL PRESSURE

main83531-50010iGRS214201212-201804

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGRS210,211201309-201804

main84540-71010iARS210,GRS214201309-201804

main84540-71010iGRS214201212-201509

89465SENSOR, OXYGEN

main89465-30730iGRS21#201212-201804

main89465-30B00iAWS211,215201407-201804

main89465-53250iAWS210201301-201804

main89465-53300iGWS214201309-201804

main89465-53310iARS210201509-201804

89465ASENSOR, OXYGEN NO.2

main89465-30730iGRS210,214201212-201804

main89465-30840iGRS211201212-201804

main89465-30A80iGWS214201309-201804

89467BSENSOR, AIR FUEL RATIO

main89467-22030iAWS211,215201407-201804

main89467-22040iGWS214201309-201804

main89467-22050iGRS21#201212-201804

main89467-30060iAWS210201301-201804

main89467-53090iARS210201509-201804

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22030iGRS210,214201212-201804

main89467-22040iGRS211201212-201804

main89467-30050iGWS214201309-201804

89491SENSOR, ENGINE OIL LEVEL

main89491-30061iGRS210,214,GWS214201212-201804

main89491-30071iGRS211201212-201804

main89491-30080iARS210,AWS210201301-201804

main89491-30090iAWS211,215201407-201804

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iAWS21#,GRS21#,GWS214201212-201804

89615SENSOR, KNOCK CONTROL

main89615-20090iAWS21#201212-201804

8271230530CLAMP, WIRING HARNESS

main82712-30530

8271522850BRACKET,WIRING HARNESS CLAMP

main82715-22850

9011908C62

main90119-08C62

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

9167180612

main91671-80612

17 parts on this diagram · 20 diagrams in section
