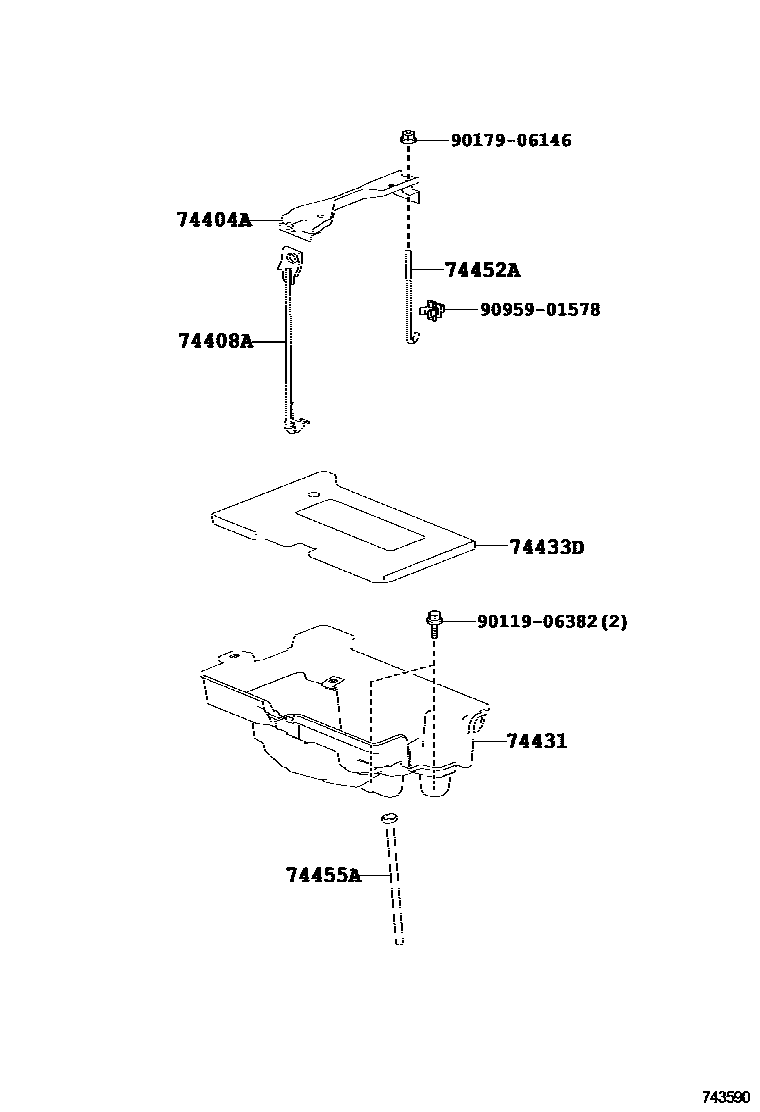

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-22370iARS210,GRS21#201509-201804

main74406-30060iAWS210,211201301-201509

main74406-30070iAWS215,GWS214201509-201804

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-22031iARS210,GRS21#201509-201804

74431TRAY, BATTERY

main74431-30260iGRS21#201212-201509

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-22010iARS210,GRS21#201612-201804

main74433-30022iARS210,GRS21#201509-201612

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iGRS21#201212-201509

74455AHOSE, BATTERY DRAIN

main74455-30020iGRS21#201212-201509

9011906382

main90119-06382

9017906146

main90179-06146

9095901578

main90959-01578

9 parts on this diagram · 2 diagrams in section
