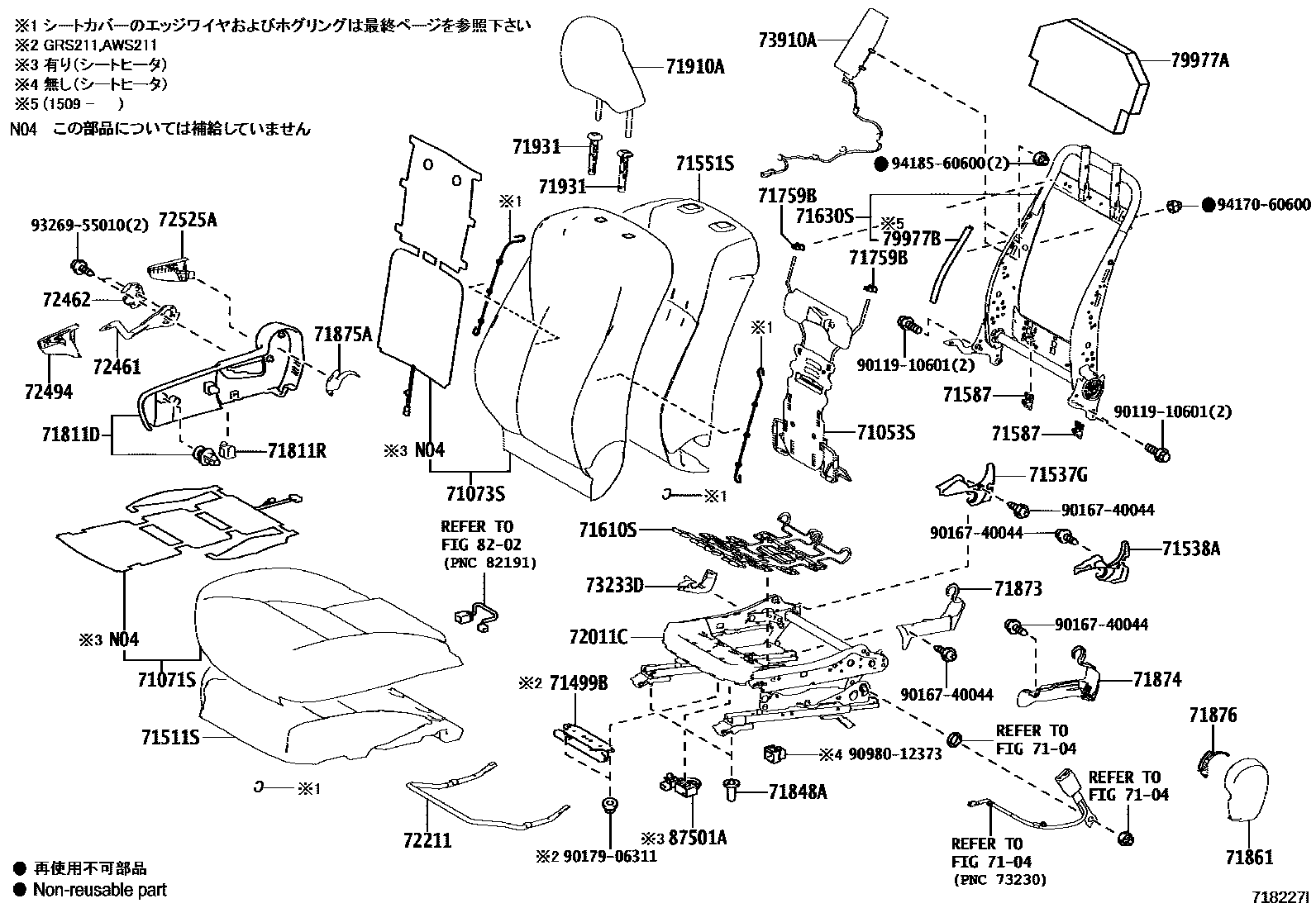

FRONT SEAT & SEAT TRACK

0001 1������ 0003 1������ ��(�������) 0005 1������ ��(�������&�����������0007 1������� 0009 1������� ��(�������) 0011 1������� (�������&������������0013 1������������ 0015 1�������������� & �������

7104

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-33030iAWS210,211,GRS210,211..ATH,ROYAL201212-201509

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-30G90-A0iGRS210,211..ROY,ROYG201212-201309

FLAXEN,TRIM0#

main71071-30G90-E0iGRS210,211..ROY,ROYG201212-201309

DK.BROWN,TRIM4#

main71071-30G91-A0iGRS210,211..ROY,ROYG201309-201406

FLAXEN,TRIM0#

main71071-30G91-E0iGRS210,211..ROY,ROYG201309-201406

DK.BROWN,TRIM4#

main71071-30G92-A0iGRS210,211..ROY,ROYG201407-201509

FLAXEN,TRIM0#

main71071-30G92-E0iGRS210,211..ROY,ROYG201407-201509

DK.BROWN,TRIM4#

main71071-30J00-A0iAWS210..ROY,ROYG201301-201309

FLAXEN,TRIM0#

main71071-30J00-E0iAWS210..ROY,ROYG201301-201309

DK.BROWN,TRIM4#

main71071-30J01-A0iAWS210,GWS214..MJ,ROY,ROYG201309-201406

FLAXEN,TRIM0#

main71071-30J01-E0iAWS210..ROY,ROYG201309-201406

DK.BROWN,TRIM4#

main71071-30J02-A0supersedes 71071-30J31-A0iAWS215201407-201509

FLAXEN,TRIM0#

sub71071-30J03

main71071-30J02-C0iAWS210,211..ROY201407-201509

BLACK,TRIM2#

sub71071-30J03

main71071-30J02-E0iAWS210,211..ROY,ROYG201407-201509

DK.BROWN,TRIM4#

sub71071-30J03

main71071-30J10-C1iGRS21#..ATHS201212-201310

BLACK/BLACK,TRIM2#

main71071-30J10-D2iGRS21#..ATHS201212-201310

TERRA ROSSA/BLACK,TRIM3#

main71071-30J11-C1iGRS21#..ATHS201311-201407

BLACK/BLACK,TRIM20

sub71071-30J12

main71071-30J11-C2iGRS21#..ATHS201407-201509

BLACK/BLACK,TRIM20

sub71071-30J12

main71071-30J11-C4iARS210,GRS211,214..ATHS201509-201608

BLACK/AKANE,TRIM2#

sub71071-30J12

main71071-30J11-C5iARS210,GRS211,214..ATHS201608-201804

BLACK/AKANE,TRIM2#

sub71071-30J12

main71071-30J11-D2iGRS21#..ATHS201311-201407

TERRA ROSSA/BLACK,TRIM30

sub71071-30J12

main71071-30J11-D3iGRS21#..ATHS201407-201509

TERRA ROSSA/BLACK,TRIM30

sub71071-30J12

main71071-30J11-D5iARS210,GRS211,214..ATHS201509-201608

TERRA ROSSA/AKANE,TRIM3#

sub71071-30J12

main71071-30J11-D6iARS210,GRS211,214..ATHS201608-201804

TERRA ROSSA/AKANE,TRIM3#

sub71071-30J12

main71071-30J11-J1iARS210..ATHS201509-201608

PRUSSIA/AKANE,TRIM8#

sub71071-30J12

main71071-30J11-J2iARS210..ATHS201608-201804

PRUSSIA/AKANE,TRIM8#

sub71071-30J12

main71071-30J20-C1iAWS210..ATHS201301-201310

BLACK/BLACK,TRIM2#

main71071-30J20-D2iAWS210..ATHS201301-201310

TERRA ROSSA/BLACK,TRIM3#

main71071-30J21-C1iAWS210..ATHS201311-201407

BLACK/BLACK,TRIM20

sub71071-30J22

main71071-30J21-C2iAWS210,211..ATHS201407-201509

BLACK/BLACK,TRIM20

sub71071-30J22

main71071-30J21-C4iAWS210,211..ATHS201509-201608

BLACK/AKANE,TRIM2#

sub71071-30J22

main71071-30J21-C5iAWS210,211..ATHS201608-201804

BLACK/AKANE,TRIM2#

sub71071-30J22

main71071-30J21-D2iAWS210..ATHS201311-201407

TERRA ROSSA/BLACK,TRIM30

sub71071-30J22

main71071-30J21-D3iAWS210,211..ATHS201407-201509

TERRA ROSSA/BLACK,TRIM30

sub71071-30J22

main71071-30J21-D5iAWS210,211..ATHS201509-201608

TERRA ROSSA/AKANE,TRIM3#

sub71071-30J22

main71071-30J21-D6iAWS210,211..ATHS201608-201804

TERRA ROSSA/AKANE,TRIM3#

sub71071-30J22

main71071-30J31-C0iAWS215201407-201509

BLACK,TRIM2#

main71071-30J31-C1iAWS215201512-201608

BLACK/CHOCOLATE BROWN,TRIM2#

main71071-30J31-C3iAWS215201608-201708

BLACK,TRIM2#

main71071-30J31-C4iAWS215201708-201804

BLACK,TRIM2#

main71071-30J40-C2iAWS210,GRS21#..ATHG201212-201401

BLACK,TRIM2#

main71071-30J41-C2iAWS210,GRS21#..ATHG201402-201407

BLACK,TRIM2#

main71071-30J41-C3iAWS210,211,GRS21#..ATHG201407-201509

BLACK,TRIM2#

main71071-30J41-C4iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71071-30J41-C5iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71071-30J41-C6iARS210,AWS210,211,GRS211,214..ATHS201608-201707

main71071-30J41-C7iGRS211,214..ATHS201608-201707

main71071-30J41-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71071-30J41-E1iARS210,AWS210,211,GRS211,214..ATHS201608-201707

main71071-30J42-20iARS210,AWS210,211,GRS211,214..ATHS201708-201804

sub71071-30J43

sub71071-30J44

main71071-30J42-21iGRS211,214..ATHS201708-201804

sub71071-30J43

sub71071-30J44

main71071-30J42-E2iARS210,AWS210,211,GRS211,214..ATHS201708-201804

sub71071-30J43

sub71071-30J44

main71071-30J50-A0iGRS210,211..ROYAL201212-201309

FLAXEN,TRIM0#

main71071-30J50-E0iGRS210,211..ROYAL201212-201309

DK.BROWN,TRIM4#

main71071-30J51-A0iGRS210,211..ROYAL201309-201406

FLAXEN,TRIM0#

main71071-30J51-E0iGRS210,211..ROYAL201309-201406

DK.BROWN,TRIM4#

main71071-30J52-A0iGRS210,211..ROYAL201407-201509

FLAXEN,TRIM0#

main71071-30J52-E0iGRS210,211..ROYAL201407-201509

DK.BROWN,TRIM4#

main71071-30J60-A0iAWS210..ROYAL201301-201309

FLAXEN,TRIM0#

main71071-30J60-E0iAWS210..ROYAL201301-201309

DK.BROWN,TRIM4#

main71071-30J61-A0iAWS210..ROYAL201309-201406

FLAXEN,TRIM0#

main71071-30J61-E0iAWS210..ROYAL201309-201406

DK.BROWN,TRIM4#

main71071-30J62-A0iAWS210,211..ROYAL201407-201509

FLAXEN,TRIM0#

main71071-30J62-E0iAWS210,211..ROYAL201407-201509

DK.BROWN,TRIM4#

main71071-30J70-C1iGRS210,211..ATH201212-201310

BLACK/BLACK,TRIM2#

main71071-30J70-D2iGRS210,211..ATH201212-201310

TERRA ROSSA/BLACK,TRIM3#

main71071-30J71-C1iGRS210,211..ATH201311-201407

BLACK/BLACK,TRIM20

sub71071-30J72

main71071-30J71-C2iGRS210,211..ATH201407-201509

BLACK/BLACK,TRIM20

sub71071-30J72

main71071-30J71-C4iARS210,GRS211..ATH201509-201608

BLACK/AKANE,TRIM2#

sub71071-30J72

main71071-30J71-C5iARS210,GRS211..ATH201608-201804

BLACK/AKANE,TRIM2#

sub71071-30J72

main71071-30J71-D2iGRS210,211..ATH201311-201407

TERRA ROSSA/BLACK,TRIM30

sub71071-30J72

main71071-30J71-D3iGRS210,211..ATH201407-201509

TERRA ROSSA/BLACK,TRIM30

sub71071-30J72

main71071-30J71-D5iARS210,GRS211..ATH201509-201608

TERRA ROSSA/AKANE,TRIM3#

sub71071-30J72

main71071-30J71-D6iARS210,GRS211..ATH201608-201804

TERRA ROSSA/AKANE,TRIM3#

sub71071-30J72

main71071-30J71-J1iARS210..ATH201509-201608

PRUSSIA/AKANE,TRIM8#

sub71071-30J72

main71071-30J71-J2iARS210..ATH201608-201804

PRUSSIA/AKANE,TRIM8#

sub71071-30J72

main71071-30J80-C1iAWS210..ATH201301-201310

BLACK/BLACK,TRIM2#

main71071-30J80-D2iAWS210..ATH201301-201310

TERRA ROSSA/BLACK,TRIM3#

main71071-30J81-C1iAWS210..ATH201311-201407

BLACK/BLACK,TRIM2#

sub71071-30J82

main71071-30J81-C2iAWS210,211..ATH201407-201509

BLACK/BLACK,TRIM20

sub71071-30J82

main71071-30J81-C4iAWS210,211..ATH201509-201608

BLACK/AKANE,TRIM2#

sub71071-30J82

main71071-30J81-C5iAWS210,211..ATH201608-201804

BLACK/AKANE,TRIM2#

sub71071-30J82

main71071-30J81-D2iAWS210..ATH201311-201407

TERRA ROSSA/BLACK,TRIM3#

sub71071-30J82

main71071-30J81-D3iAWS210,211..ATH201407-201509

TERRA ROSSA/BLACK,TRIM30

sub71071-30J82

main71071-30J81-D5iAWS210,211..ATH201509-201608

TERRA ROSSA/AKANE,TRIM3#

sub71071-30J82

main71071-30J81-D6iAWS210,211..ATH201608-201804

TERRA ROSSA/AKANE,TRIM3#

sub71071-30J82

main71071-30N30-A0iGRS210,211..ROY,ROYG201509-201512

FLAXEN,TRIM0#

main71071-30N30-A1iGRS210,211..ROY,ROYG201512-201608

FLAXEN/MELLOW WHITE,TRIM0#

main71071-30N30-A2iGRS210,211..ROY,ROYG201708-201804

FLAXEN/MELLOW WHITE,TRIM0#

main71071-30N30-A3iGRS210,211..ROY,ROYG201608-201708

FLAXEN/MELLOW WHITE,TRIM0#

main71071-30N30-C0iGRS210,211..ROY,ROYG201509-201512

BLACK,TRIM2#

main71071-30N30-C1iGRS210,211..ROY,ROYG201512-201608

BLACK,TRIM2#

main71071-30N30-C2iGRS210,211..ROY,ROYG201708-201804

BLACK,TRIM2#

main71071-30N30-C3iGRS210,211..ROY,ROYG201608-201708

BLACK,TRIM2#

main71071-30N40-A0iAWS215201509-201512

sub71071-30N41

main71071-30N40-A1supersedes 71071-30J31-A1iAWS215201512-201608

sub71071-30N41

main71071-30N40-A3supersedes 71071-30J31-A4iAWS215201708-201804

sub71071-30N41

main71071-30N40-A4supersedes 71071-30J31-A3iAWS215201608-201708

sub71071-30N41

main71071-30N40-C0iAWS210,211..ROY,ROYG201509-201512

BLACK,TRIM2#

sub71071-30N41

main71071-30N40-C1iAWS210,211..ROY,ROYG201512-201608

BLACK,TRIM2#

sub71071-30N41

main71071-30N40-C3iAWS210,211..ROY,ROYG201708-201804

BLACK,TRIM2#

sub71071-30N41

main71071-30N40-C4iAWS210,211..ROY,ROYG201608-201708

BLACK,TRIM2#

sub71071-30N41

main71071-30N50-A0iGRS210,211..ROYAL201509-201512

FLAXEN,TRIM0#

sub71071-30N51

main71071-30N50-A1iGRS210,211..ROYAL201512-201608

FLAXEN/MELLOW WHITE,TRIM0#

sub71071-30N51

main71071-30N50-A2iGRS210,211..ROYAL201708-201804

FLAXEN/MELLOW WHITE,TRIM0#

sub71071-30N51

main71071-30N50-A3iGRS210,211..ROYAL201608-201708

FLAXEN/MELLOW WHITE,TRIM0#

sub71071-30N51

main71071-30N50-C0iGRS210,211..ROYAL201509-201512

BLACK,TRIM2#

sub71071-30N51

main71071-30N50-C1iGRS210,211..ROYAL201512-201608

BLACK,TRIM2#

sub71071-30N51

main71071-30N50-C2iGRS210,211..ROYAL201708-201804

BLACK,TRIM2#

sub71071-30N51

main71071-30N50-C3iGRS210,211..ROYAL201608-201708

BLACK,TRIM2#

sub71071-30N51

main71071-30N60-A0iAWS210,211..ROYAL201509-201512

FLAXEN,TRIM0#

main71071-30N60-A1iAWS210,211..ROYAL201512-201608

FLAXEN/MELLOW WHITE,TRIM0#

main71071-30N60-A2iAWS210,211..ROYAL201708-201804

FLAXEN/MELLOW WHITE,TRIM0#

main71071-30N60-A3iAWS210,211..ROYAL201608-201708

FLAXEN/MELLOW WHITE,TRIM0#

main71071-30N60-C0iAWS210,211..ROYAL201509-201512

BLACK,TRIM2#

main71071-30N60-C1iAWS210,211..ROYAL201512-201608

BLACK,TRIM2#

main71071-30N60-C2iAWS210,211..ROYAL201708-201804

BLACK,TRIM2#

main71071-30N60-C3iAWS210,211..ROYAL201608-201708

BLACK,TRIM2#

main71071-30G20-A0iAWS210,GRS211..ATHG201312-201402

main71071-30J30-A0iAWS210,GRS210,211..ROY,ROYG201212-201401

main71071-30J30-C0iGWS214201309-201401

main71071-30J31-A2iGWS214201604-201608

main71071-30J31-C2iGWS214201604-201608

main71071-30J41-D1iAWS210,211..ATHS201407-201509

main71071-30N70-A1iAWS210,211..ATHS201506-201509

main71071-30N70-A2iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71071-30N70-A3iARS210,AWS210,211,GRS211,214..ATHS201608-201707

main71071-30N71-A4iARS210,AWS210,211,GRS211,214..ATHS201708-201804

main71071-30N90-E2iAWS215,GWS214201608-201708

main71071-30N90-E3iAWS215,GWS214201708-201804

main71071-30P00-B0iARS210,AWS210,211..ATHS201608-201707

main71071-30P01-C2iARS210,AWS210,211..ATHS201708-201804

sub71071-30P02

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-30E82-A0supersedes 71073-30J60-A1iAWS215201407-201509

FLAXEN,TRIM0#

sub71073-30E83

main71073-30J00-A1iGRS210,211..ROYAL201212-201309

FLAXEN,TRIM0#

main71073-30J00-E1iGRS210,211..ROYAL201212-201309

DK.BROWN,TRIM4#

main71073-30J01-A1iGRS210,211..ROYAL201309-201406

FLAXEN,TRIM0#

main71073-30J01-E1iGRS210,211..ROYAL201309-201406

DK.BROWN,TRIM4#

main71073-30J02-A1iGRS210,211..ROYAL201407-201509

FLAXEN,TRIM0#

main71073-30J02-E1iGRS210,211..ROYAL201407-201509

DK.BROWN,TRIM4#

main71073-30J10-A1iAWS210..ROYAL201301-201309

FLAXEN,TRIM0#

main71073-30J10-E1iAWS210..ROYAL201301-201309

DK.BROWN,TRIM4#

main71073-30J11-A1iAWS210..ROYAL201309-201406

FLAXEN,TRIM0#

main71073-30J11-E1iAWS210..ROYAL201309-201406

DK.BROWN,TRIM4#

main71073-30J12-A1iAWS210,211..ROYAL201407-201509

FLAXEN,TRIM0#

sub71073-30J13

main71073-30J12-E1iAWS210,211..ROYAL201407-201509

DK.BROWN,TRIM4#

sub71073-30J13

main71073-30J20-A1iGRS210,211..ROY,ROYG201212-201309

FLAXEN,TRIM0#

main71073-30J20-E1iGRS210,211..ROY,ROYG201212-201309

DK.BROWN,TRIM4#

main71073-30J21-A1iGRS210,211..ROY,ROYG201309-201406

FLAXEN,TRIM0#

main71073-30J21-E1iGRS210,211..ROY,ROYG201309-201406

DK.BROWN,TRIM4#

main71073-30J22-A1iGRS210,211..ROY,ROYG201407-201509

FLAXEN,TRIM0#

sub71073-30J23

main71073-30J22-E1iGRS210,211..ROY,ROYG201407-201509

DK.BROWN,TRIM4#

sub71073-30J23

main71073-30J30-A1iAWS210..ROY,ROYG201301-201309

FLAXEN,TRIM0#

main71073-30J30-E1iAWS210..ROY,ROYG201301-201309

DK.BROWN,TRIM4#

main71073-30J31-A1iAWS210..ROY,ROYG201309-201406

FLAXEN,TRIM0#

main71073-30J31-E1iAWS210..ROY,ROYG201309-201406

DK.BROWN,TRIM4#

main71073-30J32-A1iAWS210,211..ROY,ROYG201407-201509

FLAXEN,TRIM0#

sub71073-30J33

main71073-30J32-C0iAWS210,211..ROY201407-201509

BLACK,TRIM2#

sub71073-30J33

main71073-30J32-E1iAWS210,211..ROY,ROYG201407-201509

DK.BROWN,TRIM4#

sub71073-30J33

main71073-30J40-C1iGRS21#..ATH,ATHS201212-201310

BLACK/BLACK,TRIM2#

main71073-30J40-D2iGRS21#..ATH,ATHS201212-201310

TERRA ROSSA/BLACK,TRIM3#

main71073-30J41-C1iGRS21#..ATH,ATHS201311-201407

BLACK/BLACK,TRIM2#

sub71073-30J42

main71073-30J41-C2iGRS21#..ATH,ATHS201407-201509

BLACK/BLACK,TRIM2#

sub71073-30J42

main71073-30J41-C4iARS210,GRS211,214..ATH,ATHS201509-201608

BLACK/AKANE,TRIM2#

sub71073-30J42

main71073-30J41-C5iARS210,GRS211,214..ATH,ATHS201608-201804

BLACK/AKANE,TRIM2#

sub71073-30J42

main71073-30J41-D2iGRS21#..ATH,ATHS201311-201407

TERRA ROSSA/BLACK,TRIM3#

sub71073-30J42

main71073-30J41-D3iGRS21#..ATH,ATHS201407-201509

TERRA ROSSA/BLACK,TRIM3#

sub71073-30J42

main71073-30J41-D5iARS210,GRS211,214..ATH,ATHS201509-201608

TERRA ROSSA/AKANE,TRIM3#

sub71073-30J42

main71073-30J41-D6iARS210,GRS211,214..ATH,ATHS201608-201804

TERRA ROSSA/AKANE,TRIM3#

sub71073-30J42

main71073-30J41-J1iARS210..ATH,ATHS201509-201608

PRUSSIA/AKANE,TRIM8#

sub71073-30J42

main71073-30J41-J2iARS210..ATH,ATHS201608-201804

PRUSSIA/AKANE,TRIM8#

sub71073-30J42

main71073-30J50-C1iAWS210..ATH,ATHS201301-201310

BLACK/BLACK,TRIM2#

main71073-30J50-D2iAWS210..ATH,ATHS201301-201310

TERRA ROSSA/BLACK,TRIM3#

main71073-30J51-C1iAWS210..ATH,ATHS201311-201407

BLACK/BLACK,TRIM2#

sub71073-30J52

main71073-30J51-C2iAWS210,211..ATH,ATHS201407-201509

BLACK/BLACK,TRIM2#

sub71073-30J52

main71073-30J51-C4iAWS210,211..ATH,ATHS201509-201608

BLACK/AKANE,TRIM2#

sub71073-30J52

main71073-30J51-C5iAWS210,211..ATH,ATHS201608-201804

BLACK/AKANE,TRIM2#

sub71073-30J52

main71073-30J51-D2iAWS210..ATH,ATHS201311-201407

TERRA ROSSA/BLACK,TRIM30

sub71073-30J52

main71073-30J51-D3iAWS210,211..ATH,ATHS201407-201509

TERRA ROSSA/BLACK,TRIM3#

sub71073-30J52

main71073-30J51-D5iAWS210,211..ATH,ATHS201509-201608

TERRA ROSSA/AKANE,TRIM3#

sub71073-30J52

main71073-30J51-D6iAWS210,211..ATH,ATHS201608-201804

TERRA ROSSA/AKANE,TRIM3#

sub71073-30J52

main71073-30J60-C0iAWS215201509-201512

BLACK,TRIM2#

main71073-30J60-C1iAWS215201512-201608

BLACK/CHOCOLATE BROWN,TRIM2#

main71073-30J60-C4iAWS215201608-201708

BLACK,TRIM2#

main71073-30J60-C5iAWS215201708-201804

BLACK,TRIM2#

main71073-30J70-C2iAWS210,GRS21#..ATHG201212-201407

BLACK,TRIM2#

main71073-30J70-C3iAWS210,211,GRS21#..ATHG201407-201509

BLACK,TRIM2#

main71073-30J70-C4iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71073-30J70-C5iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71073-30J70-C6iARS210,AWS210,211,GRS211,214..ATHS201608-201707

main71073-30J70-C7iGRS211,214..ATHS201608-201707

main71073-30J70-E0iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71073-30J70-E1iARS210,AWS210,211,GRS211,214..ATHS201608-201707

main71073-30J71-20iARS210,AWS210,211,GRS211,214..ATHS201708-201804

sub71073-30J72

main71073-30J71-21iGRS211,214..ATHS201708-201804

sub71073-30J72

main71073-30J71-E2iARS210,AWS210,211,GRS211,214..ATHS201708-201804

sub71073-30J72

main71073-30M30-A0iGRS210,211..ROYAL201509-201512

FLAXEN,TRIM0#

sub71073-30M31

main71073-30M30-A1iGRS210,211..ROYAL201512-201608

FLAXEN/MELLOW WHITE,TRIM0#

sub71073-30M31

main71073-30M30-A3iGRS210,211..ROYAL201608-201708

FLAXEN/MELLOW WHITE,TRIM0#

sub71073-30M31

main71073-30M30-A4iGRS210,211..ROYAL201708-201804

FLAXEN,TRIM0#

sub71073-30M31

main71073-30M30-C0iGRS210,211..ROYAL201509-201512

BLACK,TRIM2#

sub71073-30M31

main71073-30M30-C1iGRS210,211..ROYAL201512-201608

BLACK,TRIM2#

sub71073-30M31

main71073-30M30-C3iGRS210,211..ROYAL201608-201708

BLACK,TRIM2#

sub71073-30M31

main71073-30M30-C4iGRS210,211..ROYAL201708-201804

BLACK,TRIM2#

sub71073-30M31

main71073-30M40-A0iAWS210,211..ROYAL201509-201512

FLAXEN,TRIM0#

sub71073-30M41

main71073-30M40-A1iAWS210,211..ROYAL201512-201608

FLAXEN/MELLOW WHITE,TRIM0#

sub71073-30M41

main71073-30M40-A3iAWS210,211..ROYAL201608-201708

FLAXEN/MELLOW WHITE,TRIM0#

sub71073-30M41

main71073-30M40-A4iAWS210,211..ROYAL201708-201804

FLAXEN,TRIM0#

sub71073-30M41

main71073-30M40-C0iAWS210,211..ROYAL201509-201512

BLACK,TRIM2#

sub71073-30M41

main71073-30M40-C1iAWS210,211..ROYAL201512-201608

BLACK,TRIM2#

sub71073-30M41

main71073-30M40-C3iAWS210,211..ROYAL201608-201708

BLACK,TRIM2#

sub71073-30M41

main71073-30M40-C4iAWS210,211..ROYAL201708-201804

BLACK,TRIM2#

sub71073-30M41

main71073-30M50-A0iGRS210,211..ROY,ROYG201509-201512

FLAXEN,TRIM0#

main71073-30M50-A1iGRS210,211..ROY,ROYG201512-201608

FLAXEN/MELLOW WHITE,TRIM0#

main71073-30M50-A3iGRS210,211..ROY,ROYG201608-201708

FLAXEN/MELLOW WHITE,TRIM0#

main71073-30M50-A4iGRS210,211..ROY,ROYG201708-201804

FLAXEN,TRIM0#

main71073-30M50-C0iGRS210,211..ROY,ROYG201509-201512

BLACK,TRIM2#

main71073-30M50-C1iGRS210,211..ROY,ROYG201512-201608

BLACK,TRIM2#

main71073-30M50-C3iGRS210,211..ROY,ROYG201608-201708

BLACK,TRIM2#

main71073-30M50-C4iGRS210,211..ROY,ROYG201708-201804

BLACK,TRIM2#

main71073-30M60-A0iAWS210,211..ROY,ROYG201509-201512

FLAXEN,TRIM0#

main71073-30M60-A1iAWS210,211..ROY,ROYG201512-201608

FLAXEN/MELLOW WHITE,TRIM0#

main71073-30M60-A3iAWS210,211..ROY,ROYG201608-201708

FLAXEN/MELLOW WHITE,TRIM0#

main71073-30M60-A4iAWS210,211..ROY,ROYG201708-201804

FLAXEN,TRIM0#

main71073-30M60-C0iAWS210,211..ROY,ROYG201509-201512

BLACK,TRIM2#

main71073-30M60-C1iAWS210,211..ROY,ROYG201512-201608

BLACK,TRIM2#

main71073-30M60-C3iAWS210,211..ROY,ROYG201608-201708

BLACK,TRIM2#

main71073-30M60-C4iAWS210,211..ROY,ROYG201708-201804

BLACK,TRIM2#

main71073-30E70-E2iAWS215,GWS214201608-201708

sub71073-30E71

main71073-30E70-E3iAWS215,GWS214201708-201804

sub71073-30E71

main71073-30F00-A0iAWS210,GRS211..ATHG201312-201402

main71073-30J60iAWS210,211,GRS210,211..ROY,ROYG201707-201708

main71073-30J60-A3supersedes 71073-30M70-A6iGWS214201604-201606

main71073-30J60-A4supersedes 71073-30M70-A2iGWS214201606-201608

main71073-30J60-C2iGWS214201604-201606

main71073-30J60-C3iGWS214201606-201608

main71073-30J70-D1iAWS210,211..ATHS201407-201509

main71073-30M80-A1iAWS210,211..ATHS201506-201509

main71073-30M80-A2iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71073-30M80-A3iARS210,AWS210,211,GRS211,214..ATHS201608-201707

main71073-30M81-A4iARS210,AWS210,211,GRS211,214..ATHS201708-201804

sub71073-30M82

main71073-30N00-B0iARS210,AWS210,211..ATHS201608-201707

sub71073-30N02

main71073-30N01-C2iARS210,AWS210,211..ATHS201708-201804

sub71073-30N03

71499BDAMPER, SEAT CUSHION SPRING

main71499-30080iAWS211,215,GRS211201212-201509

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-S0120iAWS210,211,GRS210,211..ROYAL201212-201509

main71511-S0150supersedes 71511-S0160iAWS215201509-201804

main71511-S0290iARS210,AWS210,211,GRS211..ATH201509-201804

main71511-S0320supersedes 71511-S0310iARS210,AWS210,211,GRS211,214..ATHS201509-201804

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-47010-A4iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201509-201804

FLAXEN,TRIM0#

main71537-47010-C0iARS210,AWS210,211,GRS211..ATH201509-201804

BLACK,TRIM2#,4#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-47010-A4iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201212-201509

FLAXEN,TRIM0#

main71538-47010-C0iAWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG201212-201509

BLACK,TRIM2#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-S0180supersedes 71551-S0170iAWS215201509-201804

main71551-S0200iAWS210,211,GRS210,211..ROYAL201212-201509

main71551-S0330iAWS210,211,GRS21#..ATH,ATHS201212-201509

main71551-S0340iAWS210,211,GRS21#..ATHG201212-201509

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52030×2iAWS21#,GRS21#,GWS214201212-201509

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71051-30320iAWS21#,GRS21#..ATHG,MJ201212-201509

main71051-47060iAWS210,211,GRS21#,GWS214..ATH,ATHS,MJ,ROY,ROYAL,ROYG201212-201509

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71013-30A90iAWS210,211,GRS21#..ATHS201212-201509

main71013-30A91iARS210,AWS210,211,GRS211,214..ATHS201608-201804

main71013-30B00iAWS210,211,GRS210,211..ROY201509-201607

main71013-30B01iAWS210,211,GRS210,211..ROY201608-201804

main71013-30B10iAWS210,211,GRS210,211..ATH,ROYAL201212-201509

main71013-30B20iAWS21#,GRS210,211,GWS214..MJ,ROYG201509-201607

main71013-30B21iAWS21#,GRS210,211,GWS214..MJ,ROYG201608-201804

main71013-30B30iARS210,AWS210,211,GRS211,214..ATHG201509-201607

main71013-30B31iARS210,AWS210,211,GRS211,214..ATHG201608-201804

main71013-30B90iARS210,AWS210,211,GRS210,211..ATH,ROYAL201509-201804

71759BHOOK, FRONT SEATBACK

main71759-47010×4iAWS210,GRS21#201212-201307

main71759-47011×4iARS210,AWS21#,GRS21#,GWS214201509-201804

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-30520-A0iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201212-201509

FLAXEN,TRIM0#

main71811-30520-C0iGRS211,214..ATHS201509-201804

BLACK,TRIM0#,2#,3#,4#,6#,8#

main71811-30530-A0iAWS210,211,GRS210,211..ROYAL201212-201509

FLAXEN,TRIM0#

main71811-30530-C0iAWS210,211,GRS210,211..ATH201212-201509

BLACK,TRIM2#,3#

71811RCLIP, FRONT SEAT CUSHION SHIELD, RH

main78639-30010iAWS210,211,GRS210,211..ATH,ROYAL201212-201509

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010×2supersedes 71848-33010iAWS21#,GRS21#,GWS214201212-201509

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-22150-A1iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201509-201804

FLAXEN,TRIM0#

main71861-22150-C0iAWS210,211,GRS21#..ATHS201212-201509

BLACK,TRIM2#

main71861-47040-A1iAWS210,211,GRS210,211..ROYAL201212-201509

FLAXEN,TRIM0#

main71861-47040-C0iAWS210,211,GRS210,211..ATH201212-201509

BLACK,TRIM2#,3#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iAWS210,211,GRS210,211..ATH,ROYAL201212-201509

main71873-60030iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201509

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040iARS210,AWS210,211,GRS210,211..ATH,ROYAL201509-201804

main71874-60110iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201509-201804

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-47030-A3iAWS210,211,GRS210,211..ROYAL201212-201509

FLAXEN,TRIM0#

main71875-47030-C0iARS210,AWS210,211,GRS211..ATH201509-201804

BLACK,TRIM2#

main71875-60210-A3iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201509-201804

FLAXEN,TRIM0#

main71875-60210-C0iGRS211,214..ATHS201509-201804

BLACK,TRIM2#,4#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-47030-A3iAWS210,211,GRS210,211..ROYAL201212-201509

FLAXEN,TRIM0#

main71876-47030-C0iARS210,AWS210,211,GRS211..ATH201509-201804

BLACK,TRIM2#

main71876-60210-A3iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201212-201509

FLAXEN,TRIM0#

main71876-60210-C0iAWS210,211,GRS21#..ATHS201212-201509

BLACK,TRIM2#,3#

71910AHEADREST ASSY, FRONT SEAT

main71910-30F70-A1×2iAWS210,GRS210,211..ROY,ROYAL,ROYG201212-201309

FLAXEN,TRIM0#

main71910-30F70-E1×2iAWS210,GRS210,211..ROY,ROYAL,ROYG201212-201309

DK.BROWN,TRIM4#

main71910-30F71-A1×2iAWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201309-201406

FLAXEN,TRIM0#

main71910-30F71-E1×2iAWS210,GRS210,211..ROY,ROYAL,ROYG201309-201406

DK.BROWN,TRIM4#

main71910-30F72-A1×2supersedes 71910-30F90-A1iAWS215201407-201509

FLAXEN,TRIM0#

main71910-30F72-C0×2iAWS210,211..ROY201407-201509

BLACK,TRIM2#

main71910-30F72-E1×2iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201407-201509

DK.BROWN,TRIM4#

main71910-30F80-C1×2iAWS210,GRS21#..ATH,ATHS201212-201310

BLACK/BLACK,TRIM2#

main71910-30F80-C2×2iAWS210,GRS21#..ATH,ATHS201212-201310

BLACK/TERRA ROSSA,TRIM3#

main71910-30F81-C1×2iAWS210,GRS21#..ATH,ATHS201311-201407

BLACK/BLACK,TRIM2#

main71910-30F81-C2×2iAWS210,GRS21#..ATH,ATHS201311-201407

TERRA ROSSA/BLACK,TRIM3#

main71910-30F81-C3×2iAWS210,211,GRS21#..ATH,ATHS201407-201509

BLACK/BLACK,TRIM2#

main71910-30F81-C4×2iAWS210,211,GRS21#..ATH,ATHS201407-201509

TERRA ROSSA/BLACK,TRIM3#

main71910-30F81-C5×2iARS210,AWS210,211,GRS211,214..ATH,ATHS201509-201608

BLACK/AKANE,TRIM2#

main71910-30F81-C6×2iARS210,AWS210,211,GRS211,214..ATH,ATHS201509-201608

TERRA ROSSA/AKANE,TRIM3#

main71910-30F81-C7×2iARS210..ATH,ATHS201509-201608

PRUSSIA/AKANE,TRIM8#

main71910-30F81-C8×2iARS210,AWS210,211,GRS211,214..ATH,ATHS201608-201804

BLACK/AKANE,TRIM2#

main71910-30F81-D2×2iARS210,AWS210,211,GRS211,214..ATH,ATHS201608-201804

TERRA ROSSA/AKANE,TRIM3#

main71910-30F81-J0×2iARS210..ATH,ATHS201608-201804

PRUSSIA/AKANE,TRIM8#

main71910-30F90-A1×2iAWS215201509-201708

FLAXEN,TRIM0#

main71910-30F90-C0×2iAWS215201407-201509

BLACK,TRIM2#

main71910-30G00-C2×2iAWS210,GRS21#..ATHG201212-201407

BLACK,TRIM2#

main71910-30G00-C5×2iAWS210,211,GRS21#..ATHG201407-201509

main71910-30G00-C6×2iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71910-30G00-C7×2iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71910-30G00-C8×2iARS210,AWS210,211,GRS211,214..ATHS201608-201708

main71910-30G00-C9×2iGRS211,214..ATHS201608-201708

main71910-30G00-E0×2iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main71910-30G00-E1×2iARS210,AWS210,211,GRS211,214..ATHS201608-201708

main71910-30G50-A0×2iAWS215201509-201608

main71910-30G50-A3×2iAWS215201608-201804

main71910-30G50-C0×2iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201608

BLACK,TRIM2#

main71910-30G50-C3×2iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201608-201804

BLACK,TRIM2#

main71910-30J50-A1×2iAWS215201708-201804

main71910-30J50-C1×2iAWS215201708-201804

BLACK,TRIM2#

main71910-30K00-C2×2iARS210,AWS210,211,GRS211,214..ATHS201708-201804

main71910-30K00-C3×2iGRS211,214..ATHS201708-201804

main71910-30K00-E1×2iARS210,AWS210,211,GRS211,214..ATHS201708-201804

KOGANE/ROYAL BROWN,TRIM4#

main71910-30E10-A0×2iAWS210,GRS211..ATHG201312-201402

main71910-30G00-C4×2iAWS210,211..ATHS201407-201509

main71910-30G60-A1×2iAWS210,211..ATHS201506-201509

main71910-30G60-A2×2iARS210,AWS210,211,GRS211,214..ATHS201509-201708

main71910-30J10-E0×2iAWS215,GWS214201608-201708

main71910-30J20-C0×2iARS210,AWS210,211..ATHS201608-201708

main71910-30J50-E1×2iAWS215,GWS214201708-201804

main71910-30K10-C1×2iARS210,AWS210,211..ATHS201708-201804

main71910-30K20-A1×2iARS210,AWS210,211,GRS211,214..ATHS201708-201804

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A7×2iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201509-201804

main71930-47020-C0×2iAWS211..ATHG,ROY;AWS210,215,GRS21#..ATHG,MJ201212-201509

main71930-47020-C4×2iAWS210,211,GRS211,214..ATH,ATHS201710-201804

main71930-47020-E1×2iAWS210..ROY201407-201509

main71931-47020-A7×2iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201212-201509

main71931-47020-C0×2iGRS211,214..ATH,ATHS;ARS210,AWS210,211..ATH201509-201710

main71931-47020-C4×2iAWS210,211,GRS211,214..ATH,ATHS201710-201804

main71931-47020-E1×2iAWS210..ROY201212-201407

main71930-47020-06×2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

main71931-47020-06×2iARS210,AWS210,211,GRS211,214..ATHS201509-201804

72011CADJUSTER SUB-ASSY, FRONT SEAT, RH

main72010-30181iARS210,GRS210,214..ATHS,ROY201509-201610

main72010-30182iARS210,GRS210,214..ATHS,ROY201611-201804

main72010-30401supersedes 72010-30181iAWS210..ATHS,ROY201301-201509

main72010-30402iAWS210..ATHS,ROY201611-201804

main72010-30421iGRS210..ATHG;AWS210,GRS214,GWS214..ATHG,MJ,ROYG201212-201509

main72010-30422supersedes 72010-30412iARS210,AWS210,GRS214,GWS214..ATHG,MJ,ROYG201611-201804

main72010-30431iARS210,GRS210..ATH,ROYAL201509-201804

main72010-30441iAWS210..ATH,ROYAL201509-201804

main72010-30471supersedes 72010-30452iAWS211..ATHS,ROY201407-201509

main72010-30472iAWS211..ATHS,ROY201611-201804

main72010-30481iGRS211..ATHG;AWS211,215..ATHG,MJ,ROYG201509-201610

main72010-30482supersedes 72010-30462iGRS211..ATHG;AWS211,215..ATHG,MJ,ROYG201611-201804

main72010-30561iGRS211..ATH,ROYAL201212-201509

main72010-30580iAWS211..ATH,ROYAL201509-201804

72211HANDLE, SEAT TRACK ADJUSTING

main72211-47020iARS210,AWS210,211,GRS210,211..ATH,ROYAL201509-201804

72461ARM, VERTICAL SEAT RELEASE

main72461-30050iARS210,AWS210,211,GRS210,211..ATH,ROYAL201509-201804

72462COVER, VERTICAL ADJUSTER RH

main72462-30010-C0iAWS210,GRS210,211..ATH201212-201509

BLACK,TRIM2#,3#

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-30030-A0iAWS210,211,GRS210,211..ROYAL201509-201804

FLAXEN,TRIM0#

main72494-30030-C0iARS210,AWS210,211,GRS211..ATH201509-201804

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-30100-A0iAWS210,211,GRS210,211..ROYAL201212-201509

FLAXEN,TRIM0#

main72525-30100-C0iAWS210,211,GRS210,211..ATH201212-201509

BLACK,TRIM2#,3#

73233DCOVER, LAP BELT OUTER ANCHOR

main73233-30030-C0iAWS210,GRS21#..ATHG201212-201509

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-30140iARS210,AWS21#,GRS21#,GWS214201509-201804

79977AFELT, SEATBACK

main79977-30020×2iAWS21#,GRS21#,GWS214201212-201509

79977BFELT, SEATBACK FRAME

main79977-52150×4iARS210,AWS21#,GRS21#,GWS214201509-201804

8202

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-30040iAWS210,211;GRS21#..ATHG201212-201503

main87501-30041iGRS21#..ATHG;AWS21#,GWS214201504-201509

9011910601

main90119-10601

9016740044

main90167-40044

9017906311

main90179-06311

9098012373

main90980-12373

9326955010

main93269-55010

9417060600

main94170-60600

9418560600

main94185-60600

42 parts on this diagram · 8 diagrams in section
