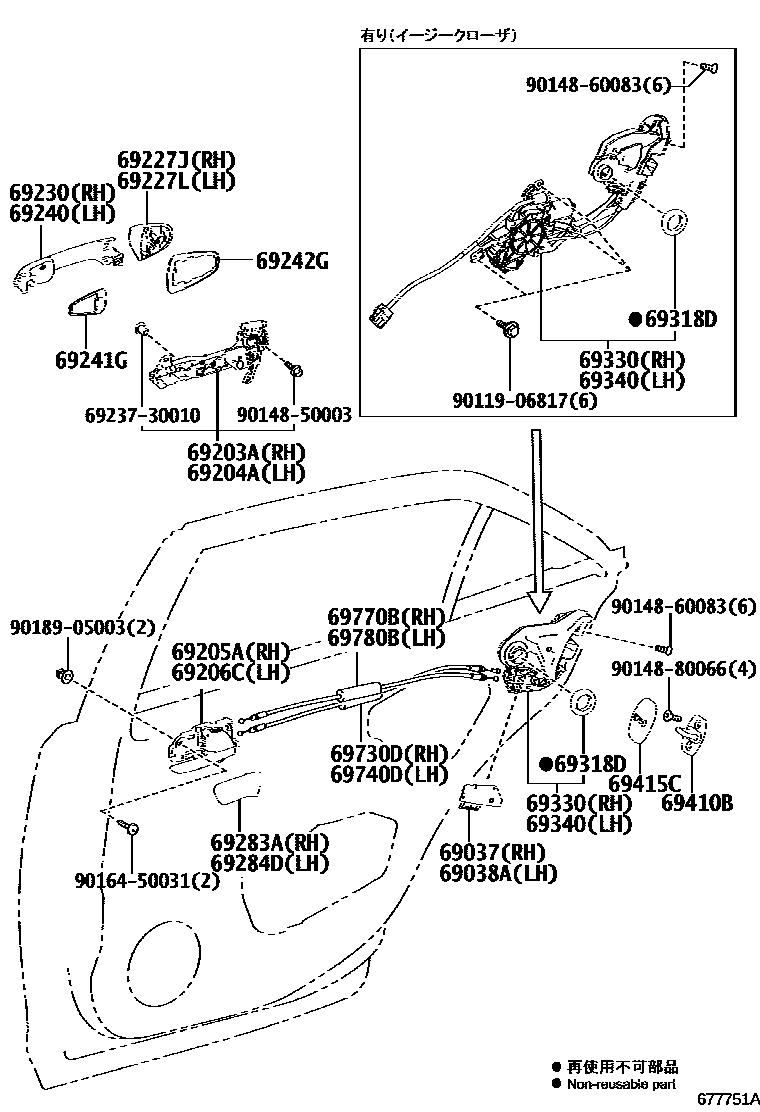

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-30010iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-30010iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-30080iAWS21#,GRS21#,GWS214201212-201804

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-30080iAWS21#,GRS21#,GWS214201212-201804

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-30210-C0iAWS210,211,GRS21#..ATHG201212-201509

BLACK,TRIM2#

sub69205-30210

main69205-30210-C0iAWS210,211,GRS21#..ATHG201212-201509

BLACK,TRIM0#,4#

sub69205-30210

main69205-30210-C0iAWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG201212-201509

BLACK,TRIM2#,3#

sub69205-30210

main69205-30210-C0iAWS210,211..ROY201301-201701

BLACK,TRIM0#,2#,4#

sub69205-30210

main69205-30210-C0iAWS215,GWS214201309-201701

BLACK,TRIM0#,2#

sub69205-30210

main69205-30210-C0iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201701

BLACK,TRIM2#,3#,8#

sub69205-30210

main69205-30210-C0iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201701

BLACK,TRIM0#,2#,3#,4#,8#

sub69205-30210

main69205-30210-C0iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201701

BLACK,TRIM0#,2#,3#,4#,6#,8#

sub69205-30210

main69205-30210-C1iARS210..ATHS201701-201804

BLACK,TRIM0#,2#

sub69205-30210

main69205-30210-C1iARS210..ATHS201701-201804

BLACK,TRIM0#,2#,3#,4#,6#

sub69205-30210

main69205-30210-C1iARS210..ATHS201701-201804

BLACK,TRIM0#,2#,3#,4#,6#,8#

sub69205-30210

main69205-30210-C1iARS210..ATHS201701-201804

BLACK,TRIM0#,2#,4#

sub69205-30210

main69205-30210-C1iARS210..ATHS201701-201804

BLACK,TRIM2#,3#,8#

sub69205-30210

main69205-30210-C1iARS210..ATHS201701-201804

BLACK,TRIM0#,2#,3#,4#

sub69205-30210

main69205-30210-C1iARS210..ATHS201701-201804

BLACK,TRIM2#,3#

sub69205-30210

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-30210-C0iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ201509-201701

BLACK,TRIM0#,2#,3#,4#,6#,8#

sub69206-30210

main69206-30210-C0iAWS210,211,GRS21#..ATH,ATHS201212-201509

BLACK,TRIM2#,3#

sub69206-30210

main69206-30210-C0iAWS210,211,GRS21#..ATH,ATHS201212-201509

BLACK,TRIM2#

sub69206-30210

main69206-30210-C0iAWS210,211,GRS21#..ATH,ATHS201212-201509

BLACK,TRIM0#,4#

sub69206-30210

main69206-30210-C0iAWS210,211..ROY201301-201701

BLACK,TRIM0#,2#,4#

sub69206-30210

main69206-30210-C0iAWS215,GWS214201309-201701

BLACK,TRIM0#,2#

sub69206-30210

main69206-30210-C0iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201701

BLACK,TRIM2#,3#,8#

sub69206-30210

main69206-30210-C0iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201701

BLACK,TRIM0#,2#,3#,4#,8#

sub69206-30210

main69206-30210-C1iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ201701-201804

BLACK,TRIM0#,2#,4#

sub69206-30210

main69206-30210-C1iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201701-201804

BLACK,TRIM0#,2#,3#,4#,6#

sub69206-30210

main69206-30210-C1iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201701-201804

BLACK,TRIM0#,2#,3#,4#,6#,8#

sub69206-30210

main69206-30210-C1iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201701-201804

BLACK,TRIM2#,3#,8#

sub69206-30210

main69206-30210-C1iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201701-201804

BLACK,TRIM0#,2#,3#,4#

sub69206-30210

main69206-30210-C1iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201701-201804

BLACK,TRIM2#,3#

sub69206-30210

main69206-30210-C1iAWS210,211..ATHS201701-201804

BLACK,TRIM0#,2#

sub69206-30210

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69250-30080-A0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

WHITE PEARL CS.,062

main69250-30080-B0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

SILVER ME.,1F7

main69250-30080-B1iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS SILVER,1J6

main69250-30080-C0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

BLACK,202

main69250-30080-C1iAWS211..ATH;AWS210,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS BLACK,219

main69250-30080-D0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

DK. RED M.M.,3Q3

main69250-30080-J0iAWS210,211,GRS210,211..ROYAL201212-201804

DK.BLUE MC.,8S6

main69250-30100iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69250-30080-A0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

WHITE PEARL CS.,062

main69250-30080-B0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

SILVER ME.,1F7

main69250-30080-B1iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS SILVER,1J6

main69250-30080-C0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

BLACK,202

main69250-30080-C1iARS210,AWS210,211,GRS211..ATH201212-201804

PRECIOUS BLACK,219

main69250-30080-D0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

DK. RED M.M.,3Q3

main69250-30080-J0iAWS211..ROYAL;AWS210,GRS210,211..ATH,ROYAL201212-201804

DK.BLUE MC.,8S6

main69250-30100iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-30350-A0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

WHITE PEARL CS.,062

main69210-30350-B0iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

SILVER ME.,1F7

main69210-30350-B1iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

PRECIOUS SILVER,1J6

main69210-30350-C0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

BLACK,202

main69210-30350-C1iARS210,AWS210,211,GRS211,214..ATHG,ATHS201212-201804

PRECIOUS BLACK,219

main69210-30350-D0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

DK. RED M.M.,3Q3

main69210-30350-G2iAWS210,211..ATHS201506-201509

LUMINOUS GREEN M.M.,6W5

main69210-30350-J0iAWS211..ROY,ROYG;AWS210,215,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

DK.BLUE MC.,8S6

main69210-30350-J4iAWS210,211..ATHS201506-201509

COOL SODA ME.,8V7

main69211-30140-A0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

WHITE PEARL CS.,062

main69211-30140-B0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

SILVER ME.,1F7

main69211-30140-B1iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS SILVER,1J6

main69211-30140-C0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

BLACK,202

main69211-30140-C1iAWS211..ATH;AWS210,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS BLACK,219

main69211-30140-D0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

DK. RED M.M.,3Q3

main69211-30140-J0iAWS211..ROYAL;AWS210,GRS210,211..ATH,ROYAL201212-201804

DK.BLUE MC.,8S6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-30350-A0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

WHITE PEARL CS.,062

main69210-30350-B0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

SILVER ME.,1F7

main69210-30350-B1iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

PRECIOUS SILVER,1J6

main69210-30350-C0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

BLACK,202

main69210-30350-C1iAWS211..ATHG,ATHS,ROY;AWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201804

PRECIOUS BLACK,219

main69210-30350-D0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

DK. RED M.M.,3Q3

main69210-30350-G2iAWS210,211..ATHS201506-201509

LUMINOUS GREEN M.M.,6W5

main69210-30350-J0iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201212-201804

DK.BLUE MC.,8S6

main69210-30350-J4iAWS210,211..ATHS201506-201509

COOL SODA ME.,8V7

main69211-30140-A0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

WHITE PEARL CS.,062

main69211-30140-B0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

SILVER ME.,1F7

main69211-30140-B1iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS SILVER,1J6

main69211-30140-C0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

BLACK,202

main69211-30140-C1iAWS211..ATH;AWS210,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS BLACK,219

main69211-30140-D0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

DK. RED M.M.,3Q3

main69211-30140-J0iAWS211..ROYAL;AWS210,GRS210,211..ATH,ROYAL201212-201804

DK.BLUE MC.,8S6

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-30120iAWS21#,GRS21#,GWS214201212-201804

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-30100iAWS21#,GRS21#,GWS214201212-201804

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30060-C1iAWS21#,GRS21#,GWS214201212-201612

BLACK

sub69283-30060

main69283-30060-C2iARS210,AWS21#,GRS21#,GWS214201612-201804

BLACK

sub69283-30060

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30060-C1iAWS21#,GRS21#,GWS214201212-201612

BLACK

sub69284-30060

main69284-30060-C2iARS210,AWS21#,GRS21#,GWS214201612-201804

BLACK

sub69284-30060

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iAWS21#,GRS21#,GWS214201212-201804

69330LOCK ASSY, REAR DOOR, RH

main69050-30530iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69050-30540iGRS214..ATHG;AWS210,211,GRS210,211..ROYG201212-201804

main69050-30550iAWS215,GWS214201309-201804

69340LOCK ASSY, REAR DOOR, LH

main69060-30580iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69060-30590iGRS214..ATHG;AWS210,211,GRS210,211..ROYG201212-201804

main69060-30600iAWS215,GWS214201309-201804

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-30070iARS210,AWS21#,GRS21#,GWS214201212-201804

sub69410-33030

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-33010iAWS21#,GRS21#,GWS214201212-201408

main69415-60020iAWS21#,GRS21#,GWS214201409-201804

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-30190iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69730-30200iGRS214..ATHG;AWS210,211,GRS210,211..ROYG201212-201804

main69730-30210iAWS215,GWS214201309-201804

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-30190iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69730-30200iGRS214..ATHG;AWS210,211,GRS210,211..ROYG201212-201804

main69730-30210iAWS215,GWS214201309-201804

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-30330iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201508

sub69770-30360

main69770-30340iGRS214..ATHG;AWS210,211,GRS210,211..ROYG201212-201804

main69770-30350iAWS215,GWS214201309-201804

main69770-30360iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201509-201804

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-30330iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201508

sub69770-30360

main69770-30340iGRS214..ATHG;AWS210,211,GRS210,211..ROYG201212-201804

main69770-30350iAWS215,GWS214201309-201804

main69770-30360iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201509-201804

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

9011906817

main90119-06817

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

30 parts on this diagram · 1 diagram in section
