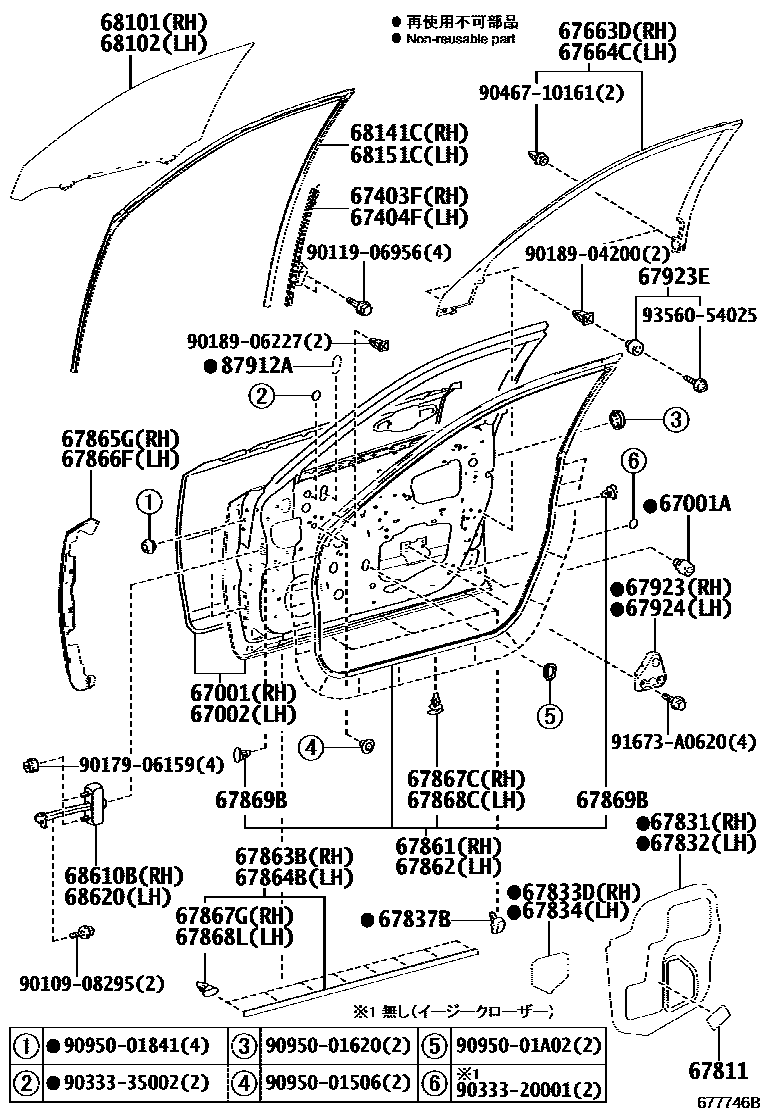

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-30880iAWS21#,GRS21#,GWS214201212-201412

sub67001-30881

main67001-30881iAWS21#,GRS21#,GWS214201501-201804

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iAWS21#,GRS21#,GWS214201212-201804

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-30A60iAWS21#,GRS21#,GWS214201212-201412

sub67002-30A61

main67002-30A61iAWS21#,GRS21#,GWS214201501-201804

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-30210iAWS21#,GRS21#,GWS214201212-201804

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-30210iAWS21#,GRS21#,GWS214201212-201804

67663DGARNISH, DOOR FRAME, RH

main67663-30090iAWS21#,GRS21#,GWS214201212-201804

67664CGARNISH, DOOR FRAME, LH

main67664-30090iAWS21#,GRS21#,GWS214201212-201804

67811PAD, FRONT DOOR SILENCER

main67811-12180iARS210,AWS21#,GRS21#,GWS214201212-201804

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-30450iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main67831-30460iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-30300iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main67832-30310iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-30110iAWS21#,GRS21#,GWS214201212-201804

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-30110iAWS21#,GRS21#,GWS214201212-201804

67837BSEAL, FRONT DOOR DUST PROOF

main67837-30060iAWS21#,GRS21#,GWS214201212-201804

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-30320iAWS21#,GRS21#,GWS214201212-201804

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-30320iAWS21#,GRS21#,GWS214201212-201804

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-30170iARS210,AWS21#,GRS21#,GWS214201212-201804

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-30160iAWS21#,GRS21#,GWS214201212-201804

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-30070iAWS21#,GRS21#,GWS214201212-201804

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-30070iAWS21#,GRS21#,GWS214201212-201804

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAWS21#,GRS21#,GWS214201212-201804

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-30080iAWS21#,GRS21#,GWS214201212-201804

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAWS21#,GRS21#,GWS214201212-201804

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-30110iAWS21#,GRS21#,GWS214201212-201804

67869BCLIP, FRONT DOOR WEATHERSTRIP

main90467-04034iAWS21#,GRS21#,GWS214201212-201804

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-30270iAWS21#,GRS21#,GWS214201212-201804

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030iAWS21#,GRS21#,GWS214201212-201804

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-30140iAWS21#,GRS21#,GWS214201212-201804

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-30850iAWS210,211,GRS210,211..ATH,ROYAL201212-201509

main68101-30850iARS210,AWS210,211,GRS210,211..ATH,ROYAL201509-201803

main68101-30860iAWS210,211,GRS210,211..ATH,ROYAL201212-201509

main68101-30860iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201509

main68101-30860iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201509-201804

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-30850iAWS210,211,GRS210,211..ATH,ROYAL201212-201509

main68102-30850iARS210,AWS210,211,GRS210,211..ATH,ROYAL201509-201803

main68102-30860iAWS210,211,GRS210,211..ATH,ROYAL201212-201509

main68102-30860iAWS210,211,GRS210,211..ATH,ROYAL201212-201509

main68102-30860iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201509-201804

68141CRUN, FRONT DOOR GLASS, RH

main68141-30380iAWS21#,GRS21#,GWS214201212-201804

68151CRUN, FRONT DOOR GLASS, LH

main68151-30220iARS210,AWS21#,GRS21#,GWS214201212-201804

68610BCHECK ASSY, FRONT DOOR, RH

main68610-30220iAWS21#,GRS21#,GWS214201212-201804

68620CHECK ASSY, FRONT DOOR, LH

main68610-30220iAWS21#,GRS21#,GWS214201212-201804

87912APROTECTOR, OUTER MIRROR

main87912-30050iAWS21#,GRS21#,GWS214201212-201804

9010908295

main90109-08295

9011906956

main90119-06956

9017906159

main90179-06159

9018904200

main90189-04200

9018906227

main90189-06227

9033320001

main90333-20001

9033335002

main90333-35002

9046710161

main90467-10161

9095001506

main90950-01506

9095001620

main90950-01620

9095001841

main90950-01841

9095001A02

main90950-01A02

91673A0620

main91673-A0620

9356054025

main93560-54025

48 parts on this diagram · 2 diagrams in section
