Toyota CROWN/HYBRID — ROOF HEADLINING & SILENCER PAD

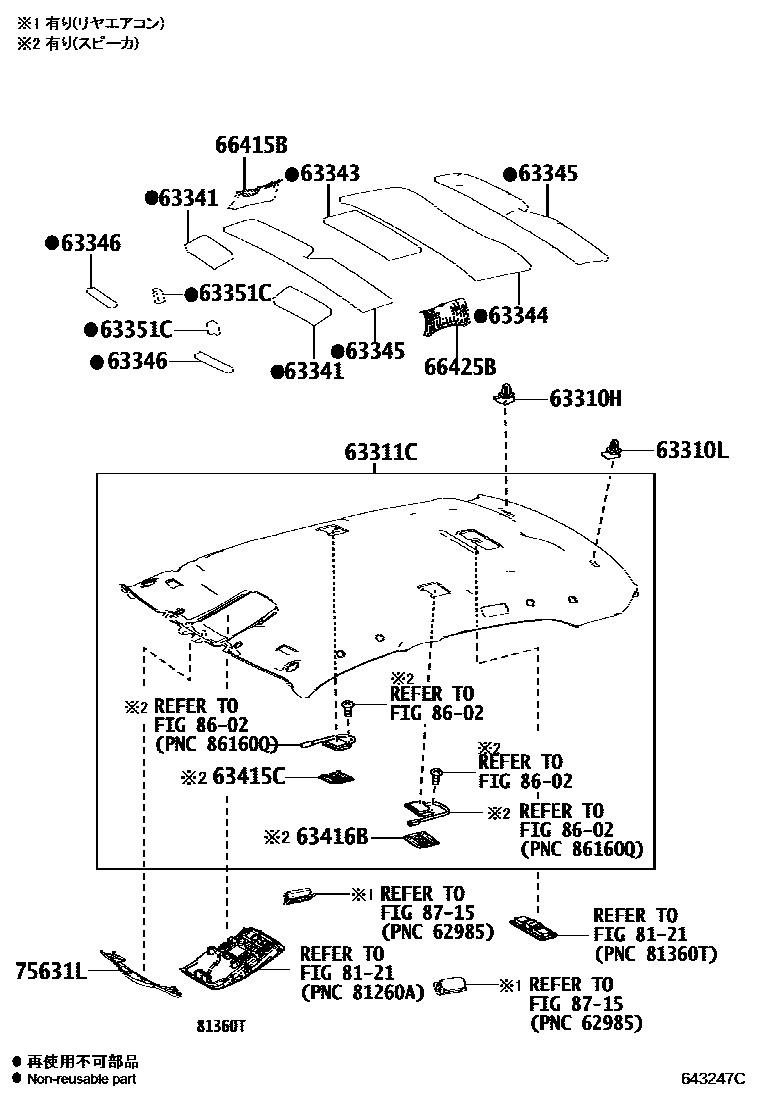

Parts diagram

63310HCLIP(FOR ROOF HEADLINING)

63310LCAP(FOR ROOF HEADLINING)

63311CHEADLINING, ROOF

63341PAD, ROOF SILENCER, NO.1

63343PAD, ROOF SILENCER, NO.3

63344PAD, ROOF SILENCER, NO.4

63345PAD, ROOF SILENCER, NO.5

63346PAD, ROOF SILENCER, NO.6

63351CPAD, ROOF HEADLINING

63415CGRILLE, ROOF SPEAKER, RH

63416BGRILLE, ROOF SPEAKER, LH

66415BSPACER, SIDE RAIL, REAR NO.2 RH

66425BSPACER, SIDE RAIL, REAR NO.2 LH

75631LGARNISH, ROOF TOP, FRONT

8121INTERIOR LAMP

→ Go to FIG 81-21

8602SPEAKER

→ Go to FIG 86-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

17 parts on this diagram · 2 diagrams in section

ROOF HEADLINING & SILENCER PAD for Toyota CROWN/HYBRID

This section contains 19 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota CROWN/HYBRID. Key components include: TRIM SUB-ASSY, SUNSHADE, CLIP(FOR ROOF HEADLINING), CAP(FOR ROOF HEADLINING), HEADLINING, ROOF, PAD, ROOF SILENCER, NO.1.
