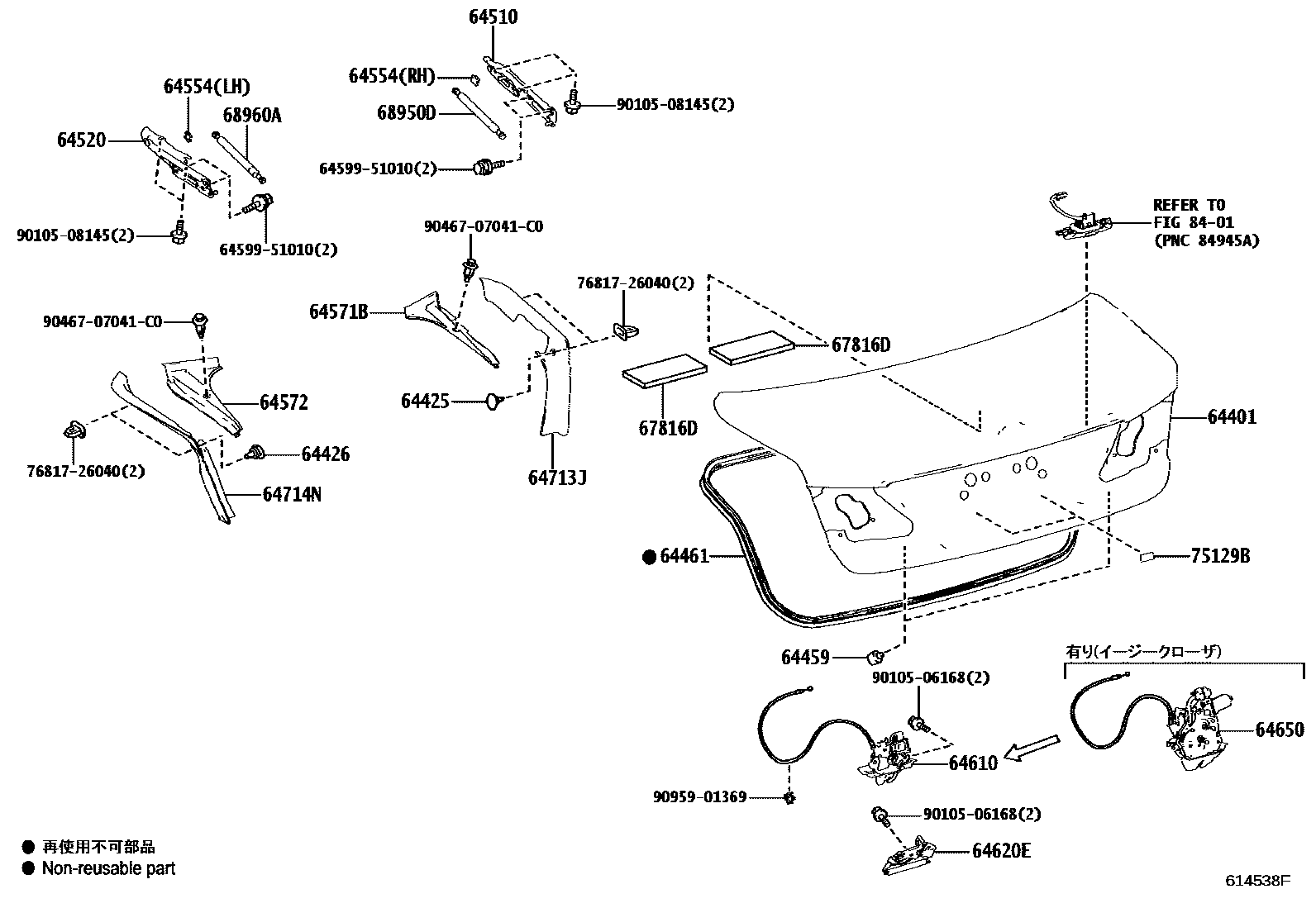

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30D30iAWS21#,GRS21#,GWS214201212-201509

main64401-30D70iARS210,AWS21#,GRS21#,GWS214201509-201804

64425PLUG, LUGGAGE COMPARTMENT DOOR, RH

main64425-30060iAWS21#,GRS21#,GWS214201212-201509

64426PLUG, LUGGAGE COMPARTMENT DOOR, LH

main64425-30060iAWS21#,GRS21#,GWS214201212-201509

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×2iAWS21#,GRS21#,GWS214201212-201509

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30370iAWS21#,GRS21#,GWS214201212-201509

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30480iAWS21#,GRS21#,GWS214201212-201509

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30250iAWS21#,GRS21#,GWS214201212-201509

64554STOPPER, LUGGAGE DOOR BALANCER

main64554-30041iAWS21#,GRS21#,GWS214201212-201509

main64554-30051iAWS21#,GRS21#,GWS214201212-201509

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-30180iAWS21#,GRS21#,GWS214201212-201509

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-30140iAWS21#,GRS21#,GWS214201212-201509

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30220iAWS210,GRS210,211..ATHG201212-201407

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30140iAWS21#,GRS21#,GWS214201212-201509

64650CLOSER ASSY, LUGGAGE DOOR

main64650-30080iAWS211,GRS214..ATHG,ROY,ROYG;AWS210,215,GRS210,211,GWS214..MJ,ROY,ROYG201212-201509

main64650-30090iARS210,AWS210,211,GRS211,214..ATHS201608-201703

main64650-30091iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201704-201804

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64713-30110iARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS201509-201804

main64713-30120iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201212-201509

main64713-30130iAWS210,211,GRS21#..ATH,ATHG,ATHS201212-201509

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64714-30540iARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS201509-201804

main64714-30550iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201509-201804

main64714-30580iAWS210,211,GRS21#..ATH,ATHG,ATHS201212-201509

67816DSHEET, BACK DOOR PANEL SILENCER

main67816-30010×2iAWS21#,GRS21#,GWS214201212-201509

68950DSTAY ASSY, LUGGAGE DOOR, RH

main64530-0W260iARS210,AWS21#,GRS21#,GWS214201710-201804

main64530-30150iARS210,AWS21#,GRS21#,GWS214201509-201709

68960ASTAY ASSY, LUGGAGE DOOR, LH

main64530-0W260iARS210,AWS21#,GRS21#,GWS214201710-201804

main64540-30110iARS210,AWS21#,GRS21#,GWS214201509-201709

75129BCUSHION, REAR LICENCE PLATE

main75129-30010×2iAWS21#,GRS21#,GWS214201212-201509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6459951010BOLT, LUGGAGE DOOR HINGE

main64599-51010

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9010506168

main90105-06168

9010508145

main90105-08145

9046707041C0

main90467-07041C0

9095901369

main90959-01369

26 parts on this diagram · 2 diagrams in section
