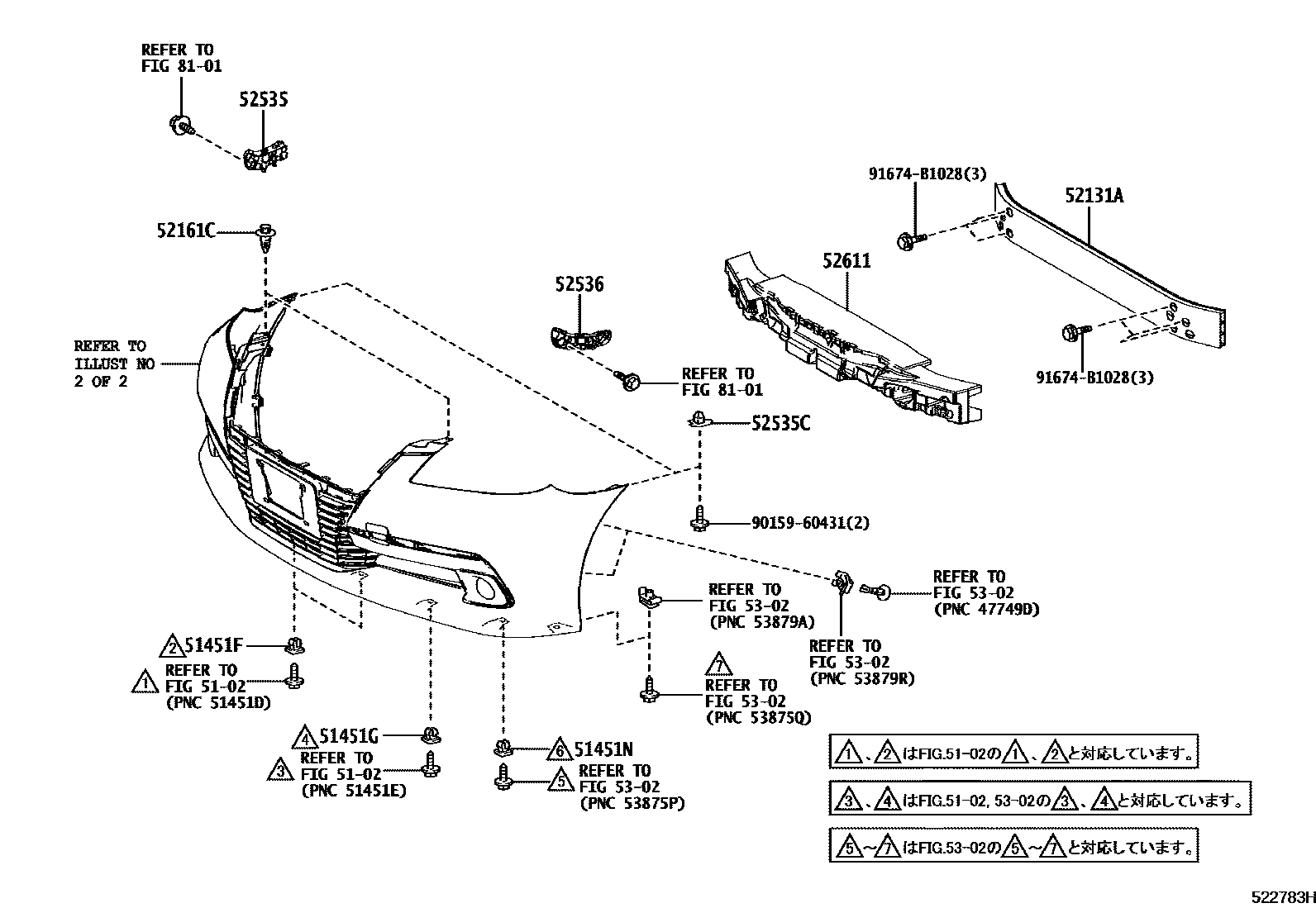

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451FGROMMET, NO.1

main90189-06237iARS210,AWS21#,GRS21#,GWS214201212-201804

51451GGROMMET, NO.2

main90189-06237iARS210,AWS21#,GRS21#,GWS214201212-201804

51451NGROMMET, NO.3

main90189-06237iAWS21#,GRS21#,GWS214201212-201804

52131AREINFORCEMENT, FRONT BUMPER

main52131-30320iGRS21#201212-201804

main52131-30330iAWS210,211201301-201502

main52131-30331iAWS210,211201503-201804

main52131-30350iAWS215,GWS214201309-201804

52161CPIECE, FRONT BUMPER

main52161-16010iAWS21#,GRS21#,GWS214201212-201804

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30240iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201212-201804

main52535-30260iAWS210,211,GRS21#..ATH,ATHG,ATHS201212-201504

main52535-30261iAWS210,211,GRS21#..ATH,ATHG,ATHS201505-201804

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iAWS21#,GRS21#,GWS214201212-201804

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30230iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201212-201804

main52536-30250iAWS210,211,GRS21#..ATH,ATHG,ATHS201212-201504

main52536-30251iAWS210,211,GRS21#..ATH,ATHG,ATHS201505-201804

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30430iGRS210,211..ROY,ROYAL,ROYG201212-201409

main52611-30431iGRS210,211..ROY,ROYAL,ROYG201410-201509

main52611-30440iGRS21#..ATH,ATHG,ATHS201212-201509

main52611-30450iAWS210,211..ROY,ROYAL,ROYG201301-201409

main52611-30451iAWS210,211..ROY,ROYAL,ROYG201410-201509

main52611-30460iAWS210,211..ATH,ATHG,ATHS201301-201509

main52611-30470iAWS215,GWS214201309-201603

main52611-30471iAWS215,GWS214201604-201804

main52611-30510iGRS210,211..ROY,ROYAL,ROYG201509-201804

main52611-30520iAWS210,211..ROY,ROYAL,ROYG201509-201804

main52611-30530iGRS211,214..ATH,ATHG,ATHS201509-201804

main52611-30540iARS210,AWS210,211..ATH,ATHG,ATHS201509-201804

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

8101HEADLAMP

→ Go to FIG 81-01

9015960431

main90159-60431

91674B1028

main91674-B1028

14 parts on this diagram · 20 diagrams in section
