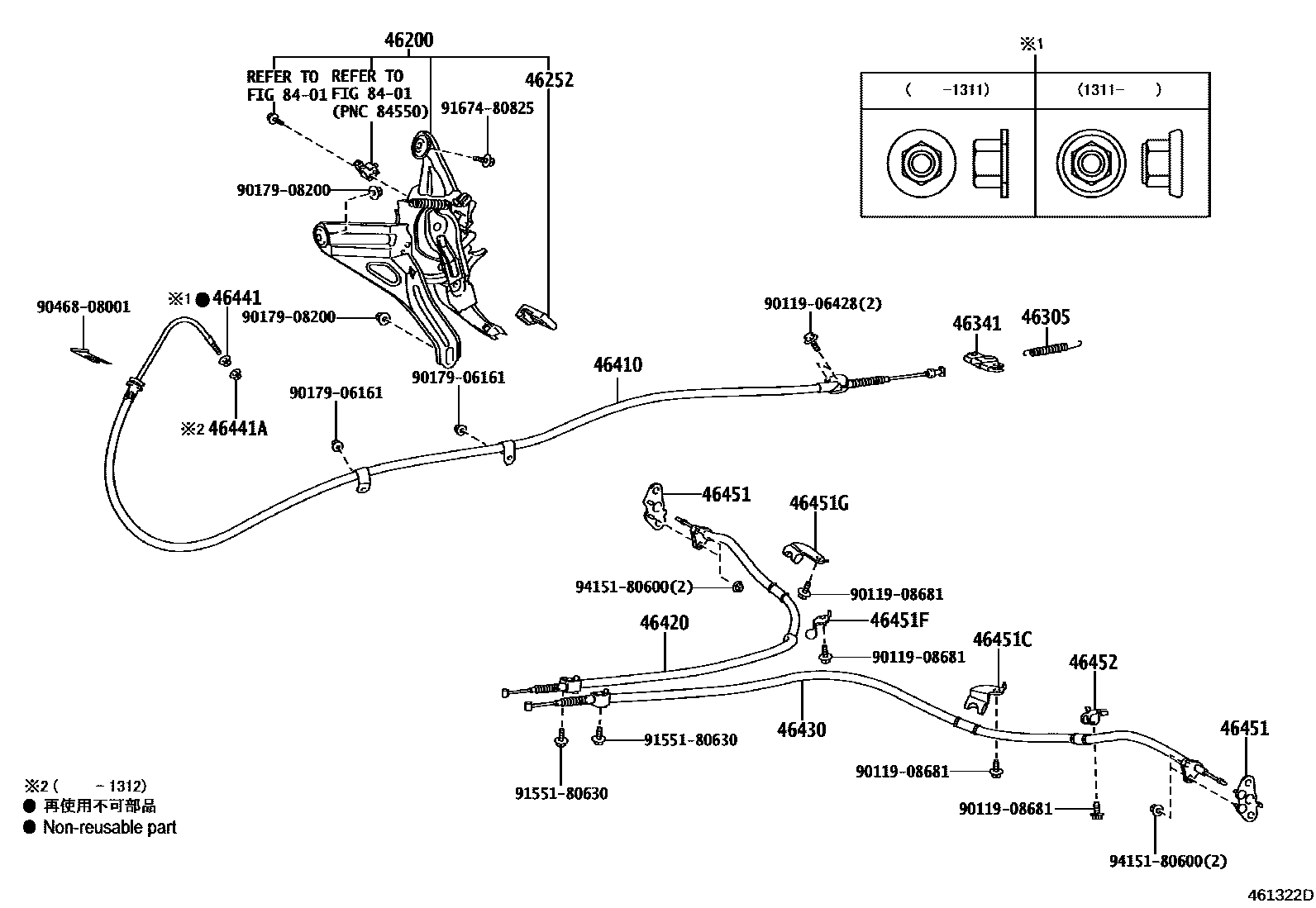

PARKING BRAKE & CABLE
46252PAD, PARKING PEDAL
46305SPRING, PARKING BRAKE RETURN W/DAMPER
46341EQUALIZER, PARKING BRAKE
46420CABLE ASSY, PARKING BRAKE, NO.2
46430CABLE ASSY, PARKING BRAKE, NO.3
46441NUT, WIRE ADJUSTING, NO.1
46441ANUT, WIRE ADJUSTING, NO.2
46451BRACKET, CABLE SUPPORT
46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451FBRACKET, CABLE SUPPORT
46451GBRACKET, CABLE SUPPORT
46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
8401
9011906428
main90119-06428
9011908681
main90119-08681
9017906161
main90179-06161
9017908200
main90179-08200
9046808001
main90468-08001
9155180630
main91551-80630
9167480825
main91674-80825
9415180600
main94151-80600
23 parts on this diagram · 2 diagrams in section
