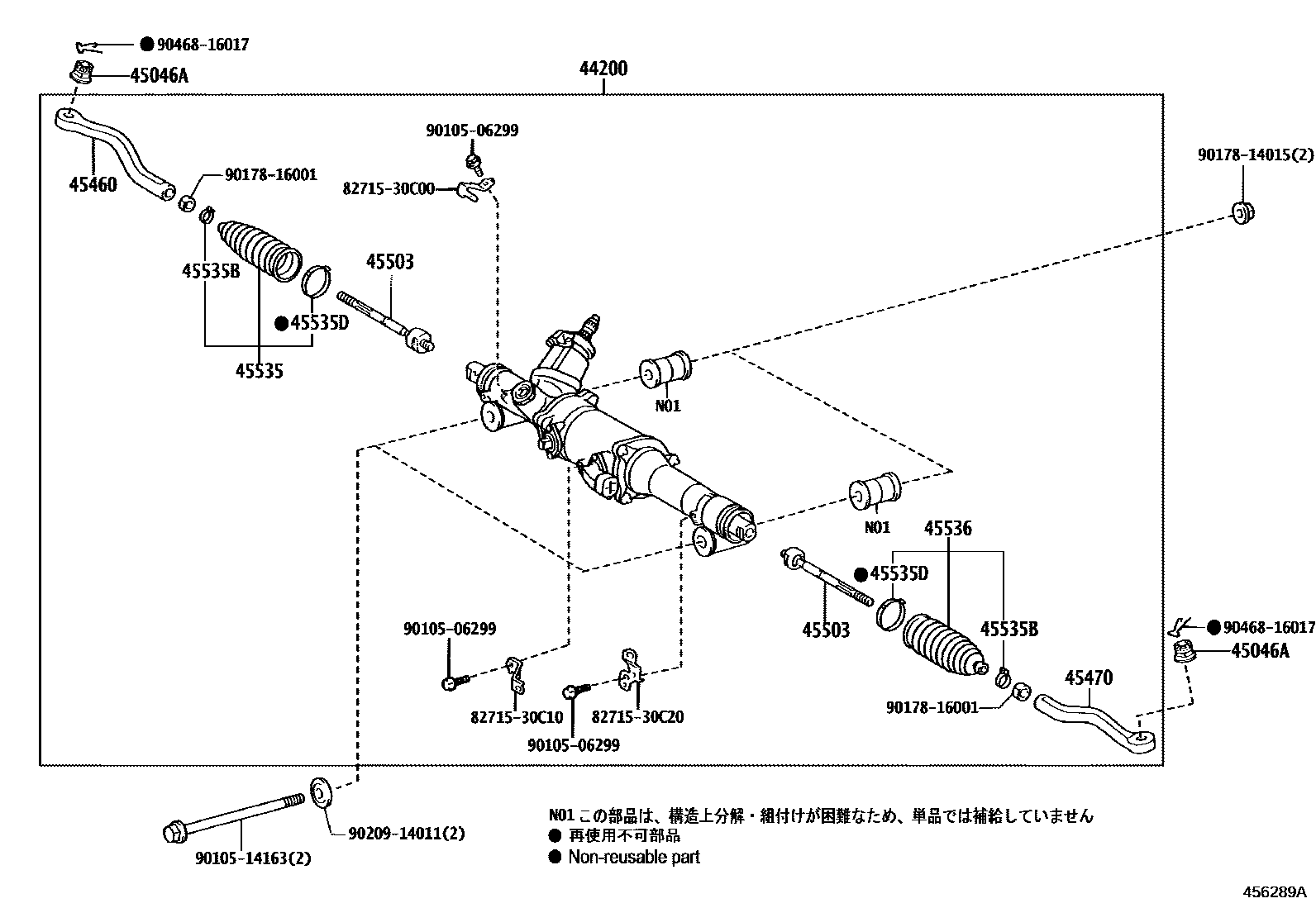

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-30A00iAWS210,GRS210,GWS214..MJ,ROY,ROYAL,ROYG201212-201509

main44200-30A10iARS210,AWS210,GRS214..ATH,ATHG,ATHS201509-201804

main44200-30A20iAWS211,215,GRS211201509-201804

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iARS210,AWS210,GRS210,214,GWS214201509-201804

main90178-12017×2iAWS211,215,GRS211201509-201804

45460ROD ASSY, TIE, RH

main45460-39715iAWS211,215,GRS211201212-201509

main45463-30150iAWS210,GRS210,214,GWS214201212-201509

45470ROD ASSY, TIE, LH

main45464-30100iAWS210,GRS210,214,GWS214201212-201509

main45470-39255iAWS211,215,GRS211201509-201804

45503END SUB-ASSY, STEERING RACK

main45503-30150×2iARS210,AWS210,GRS210,214,GWS214201509-201804

main45503-30160×2iAWS211,215,GRS211201509-201804

45535BOOT, STEERING RACK, NO.1

main45535-39045iAWS210,GRS210,214,GWS214201212-201312

main45535-59045iGRS211201212-201312

main45535-59055iAWS210,GRS210,214,GWS214201401-201509

main45535-59065iAWS211,215,GRS211201509-201804

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iAWS211,215,GRS211201509-201804

main90467-19021×2iAWS210,GRS210,214,GWS214201212-201509

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-50010iAWS21#,GRS21#,GWS214201212-201509

45536BOOT, STEERING RACK, NO.2

main45535-39045iAWS210,GRS210,214,GWS214201212-201312

main45535-59045iGRS211201212-201312

main45535-59055iAWS210,GRS210,214,GWS214201401-201509

main45535-59065iAWS211,215,GRS211201401-201509

8271530C00BRACKET,WIRING HARNESS CLAMP

main82715-30C00

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C20BRACKET,WIRING HARNESS CLAMP

main82715-30C20

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017816001

main90178-16001

9020914011

main90209-14011

9046816017

main90468-16017

18 parts on this diagram · 2 diagrams in section
