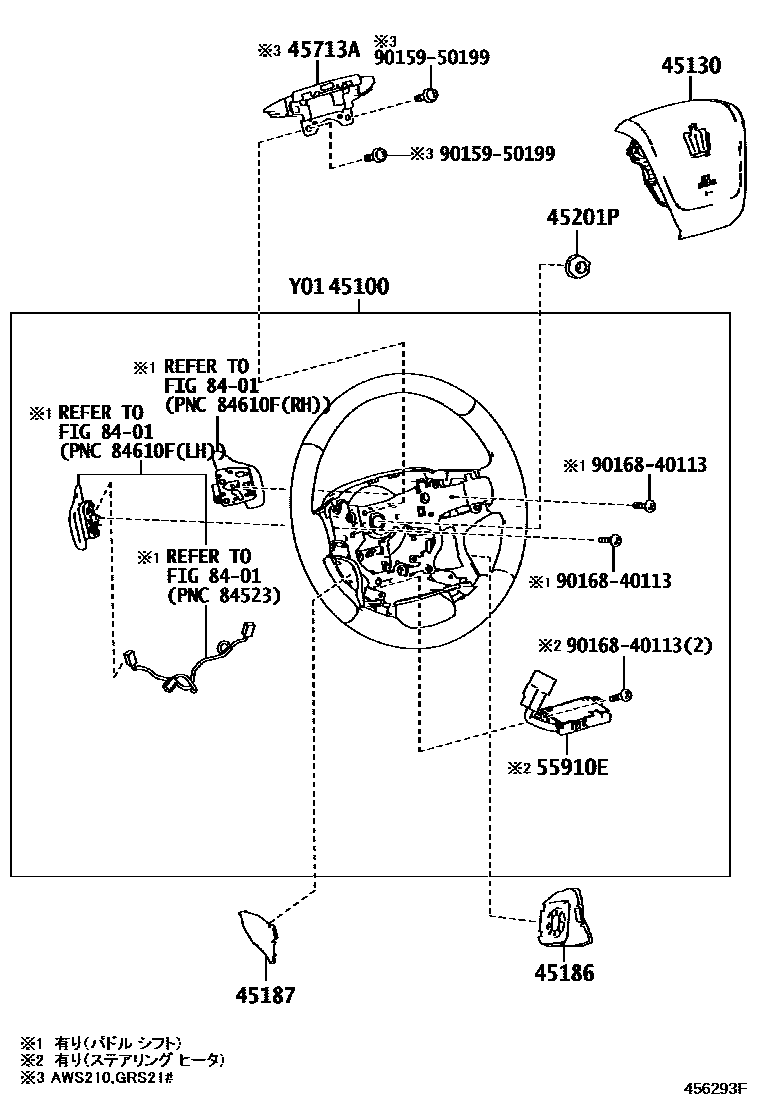

STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-30D10-C0iAWS210,211..ATH,ATHS; AWS210,211..ATHG; AWS210,211..ROY; AWS210,211..ROYAL,ROYG201301-201501
main45100-30D12-C0iAWS210,211..ATH,ATHS; AWS210,211..ATHG; AWS210,211..ROY; AWS210,211..ROYAL,ROYG201501-201509
main45100-30D13-C0iAWS210,211..ATH; AWS210,211..ATHG; AWS210,211..ATHS; AWS210,211..ROY,ROYAL,ROYG201608-201804
45130BUTTON ASSY, HORN
main45130-30710-C0iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ; ARS210,AWS210,211,GRS211..ATH; ARS210,AWS210,211..ATHS; AWS210,211,GRS210,211..ROY,ROYAL,ROYG; GRS211,214..ATHS201509-201804
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#,4#,6#,8#; BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,3#,8#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-30180-C0iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ; ARS210,AWS210,211,GRS211..ATH; ARS210,AWS210,211..ATHS; AWS210,211,GRS210,211..ROY,ROYAL,ROYG; GRS211,214..ATHS201509-201804
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#,4#,6#,8#; BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,3#,8#
45187COVER, STEERING WHEEL, LOWER NO.3
main45187-30100-C0iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ; ARS210,AWS210,211,GRS211..ATH; ARS210,AWS210,211..ATHS; AWS210,211,GRS210,211..ROY,ROYAL,ROYG; GRS211,214..ATHS201509-201804
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#,4#,6#,8#; BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,3#,8#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
55910ECONTROL ASSY, STEERING WHEEL HEATER
8401SWITCH & RELAY & COMPUTER
9015950199
main90159-50199
9016840113
main90168-40113
10 parts on this diagram · 1 diagram in section
