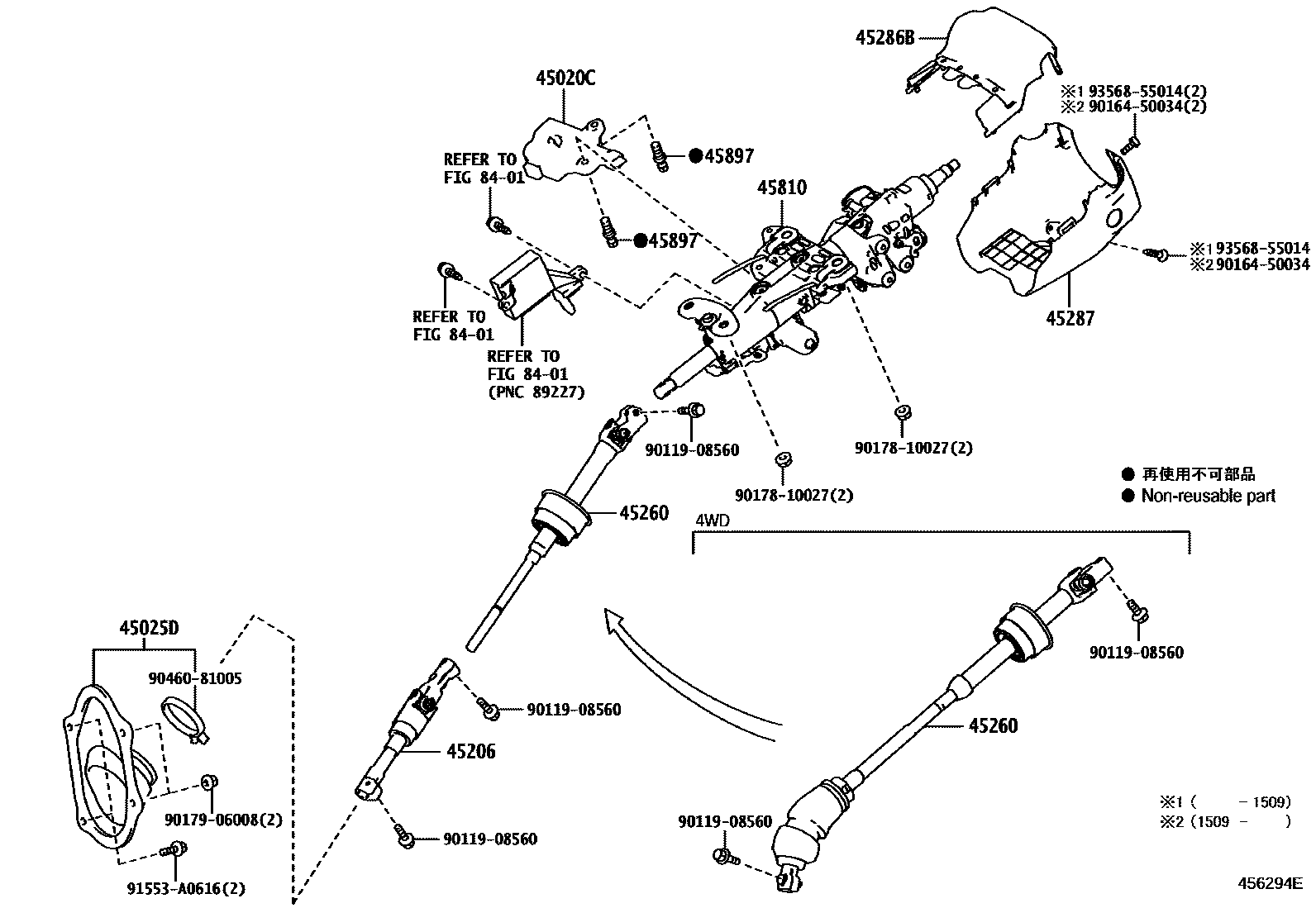

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
main45020-30B10supersedes 45020-30B20iGRS210,211..ATHG,ROYG;AWS21#,GRS214,GWS214..ATHG,ATHS,MJ,ROY,ROYG; GRS210,211..ATHS,ROY201212-201509
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
main45286-30A30-C0supersedes 45286-30A50-C0iAWS210,211,GRS21#..ATHG; AWS210,211,GRS210,211..ROYG; AWS210,211,GRS214..ATHS; GRS210,211..ATHS; GRS210,211..ROY201212-201509
main45286-30A50-C0iAWS210,211..ATH;GRS210,211..ATH,ATHS; AWS210,211..ROYAL;GRS210,211..ROY,ROYAL201212-201509
BLACK,TRIM0#,4#; BLACK,TRIM2#,3#
45287COVER, STEERING COLUMN, LWR
main45287-30A40-C0iAWS210,211..ATH;GRS210,211..ATH,ATHS; AWS210,211..ROYAL;GRS210,211..ROY,ROYAL201212-201509
BLACK,TRIM0#,4#; BLACK,TRIM2#,3#
main45287-30A50-C0supersedes 45287-30A40-C0iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ; AWS210,211..ATHS; GRS210,211..ROYG;AWS210,211..ROY,ROYG; GRS214..ATHS201509-201804
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#,4#,6#,8#; BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM0#,2#,4#
45810GEAR ASSY, TILT STEERING, W/MOTOR
main45810-30250iGRS210,211..ATHG,ROYG;AWS21#,GRS214,GWS214..ATHG,ATHS,MJ,ROY,ROYG; GRS210,211..ATHS,ROY201212-201509
45897BOLT, STEERING LOCK SET
main45897-12020iAWS210,211..ATH,ROYAL;GRS210,211..ATH,ATHS,ROY,ROYAL; GRS210,211..ATHG,ROYG;AWS21#,GRS214,GWS214..ATHG,ATHS,MJ,ROY,ROYG; GRS210,211..ATHS,ROY201212-201509
8401SWITCH & RELAY & COMPUTER
9011908560
main90119-08560
9016450034
main90164-50034
9017810027
main90178-10027
9017906008
main90179-06008
9046081005
main90460-81005
91553A0616
main91553-A0616
9356855014
main93568-55014
16 parts on this diagram · 3 diagrams in section
