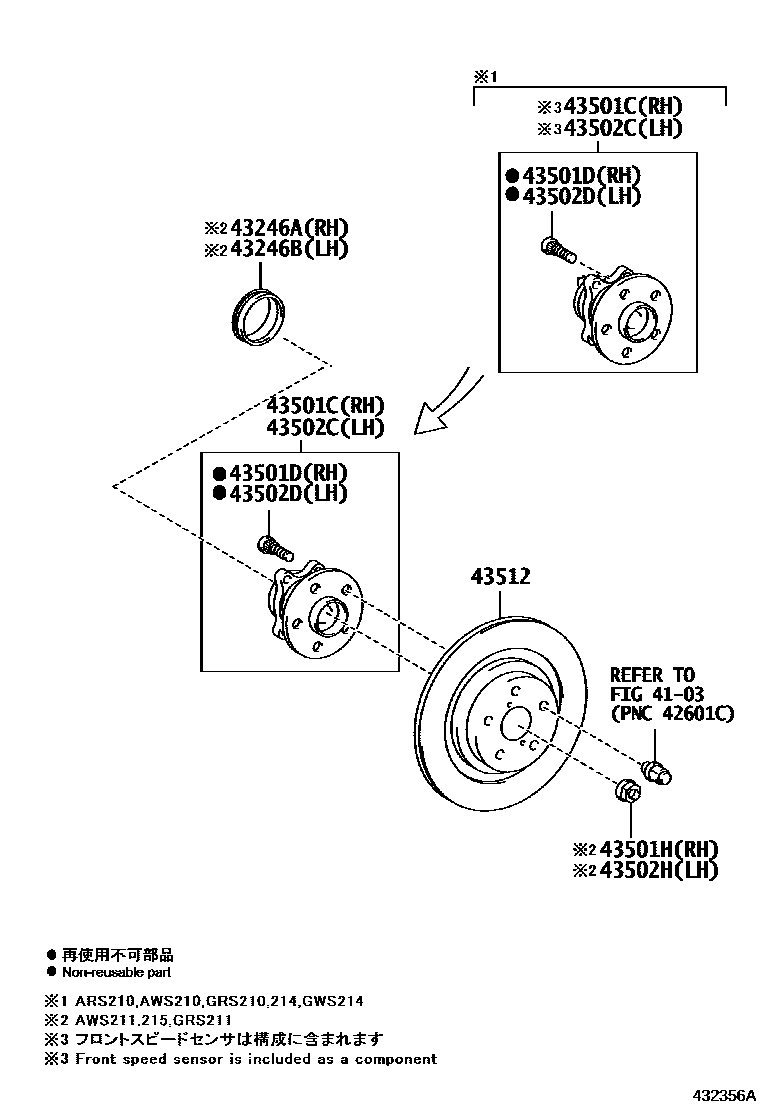

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-30010iAWS211,215,GRS211201212-201804

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-30010iAWS211,215,GRS211201212-201804

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30030iAWS211,215,GRS211201212-201507

main43550-30031iAWS211,215,GRS211201508-201804

main43550-30070iAWS210,GRS210,214,GWS214201212-201504

main43550-30071iARS210,AWS210,GRS210,214,GWS214201505-201804

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAWS211,215,GRS211201505-201804

main90942-02070iAWS210,GRS210,214,GWS214201212-201507

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAWS211,215,GRS211201212-201804

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-30070iAWS210,GRS210,214,GWS214201212-201504

main43550-30071iAWS210,GRS210,214,GWS214201505-201804

main43560-30030iAWS211,215,GRS211201212-201507

main43560-30031iAWS211,215,GRS211201508-201804

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAWS211,215,GRS211201505-201804

main90942-02070iAWS211,215,GRS211201212-201507

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAWS211,215,GRS211201212-201804

43512DISC, FRONT

main43512-30310iAWS21#,GRS210,211201212-201804

main43512-30350iGRS214,GWS214201212-201804

main43516-30040iGRS214,GWS214201212-201804

10 parts on this diagram · 1 diagram in section
