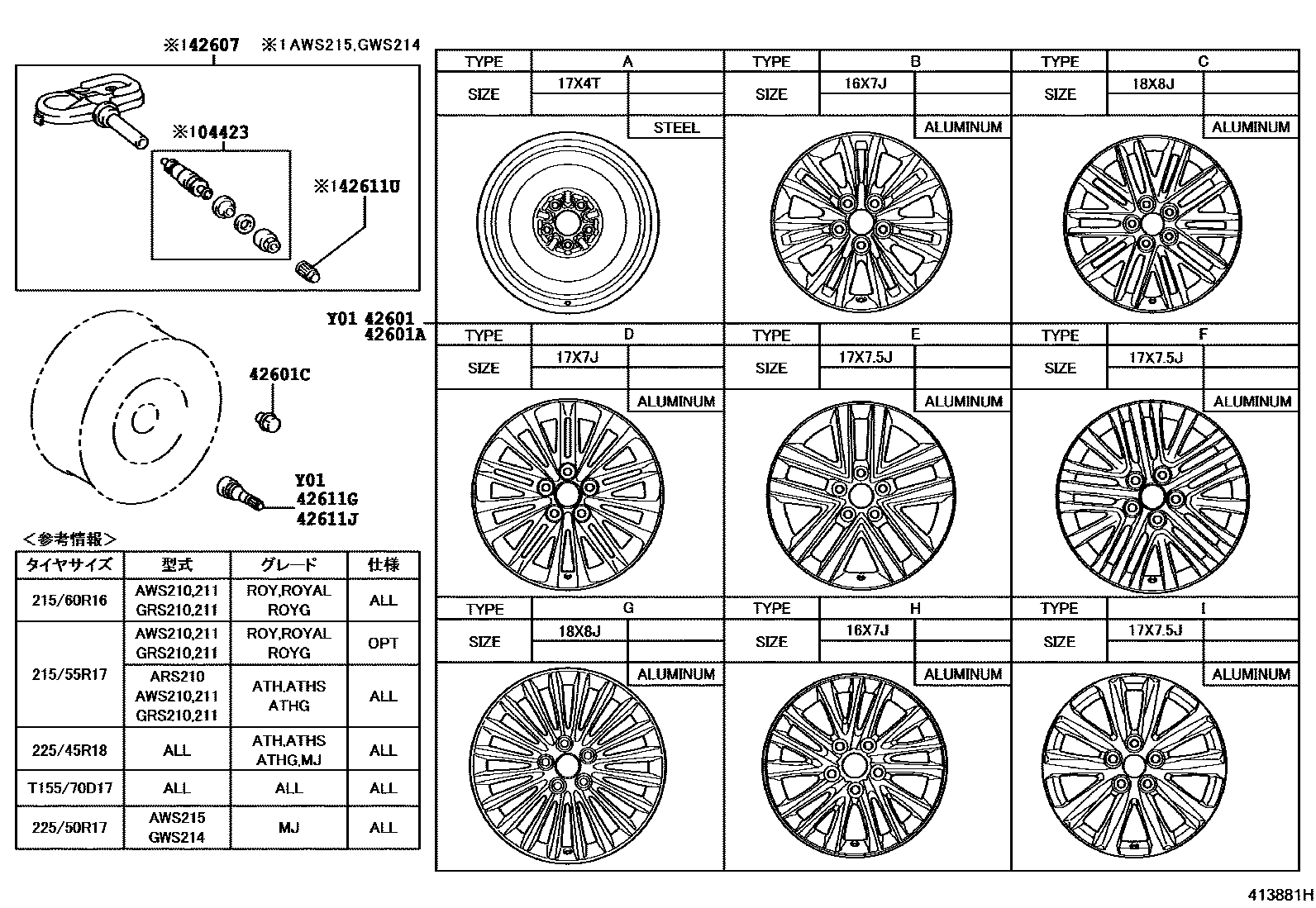

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iAWS215,GWS214201509-201804

42601WHEEL, DISC

main42611-30F50×4supersedes 42611-30C10iGRS214201509-201804

main42611-30C40×4supersedes 4261A-30290iAWS215,GWS214201509-201804

main42611-30D50×4supersedes 42611-30E50iAWS210,211..ATHS201708-201804

main4261A-30280×4supersedes 42611-30E40iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201804

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60iARS210,AWS215,GRS210,214,GWS214;AWS210,211,GRS211..ROY,ROYAL,ROYG201509-201608

main42611-53320iARS210,AWS215,GRS210,214,GWS214;AWS210,211,GRS211..ROY,ROYAL,ROYG201608-201804

sub42611-53321

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iARS210,AWS21#,GRS21#,GWS214201509-201804

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-59005×4iAWS215,GWS214201509-201804

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iARS210,AWS210,211,GRS21#201509-201804

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iARS210,AWS21#,GRS21#,GWS214201509-201804

42611UCAP, TIRE VALVE

main90942-05039×4iAWS215,GWS214201309-201509

8 parts on this diagram · 3 diagrams in section
