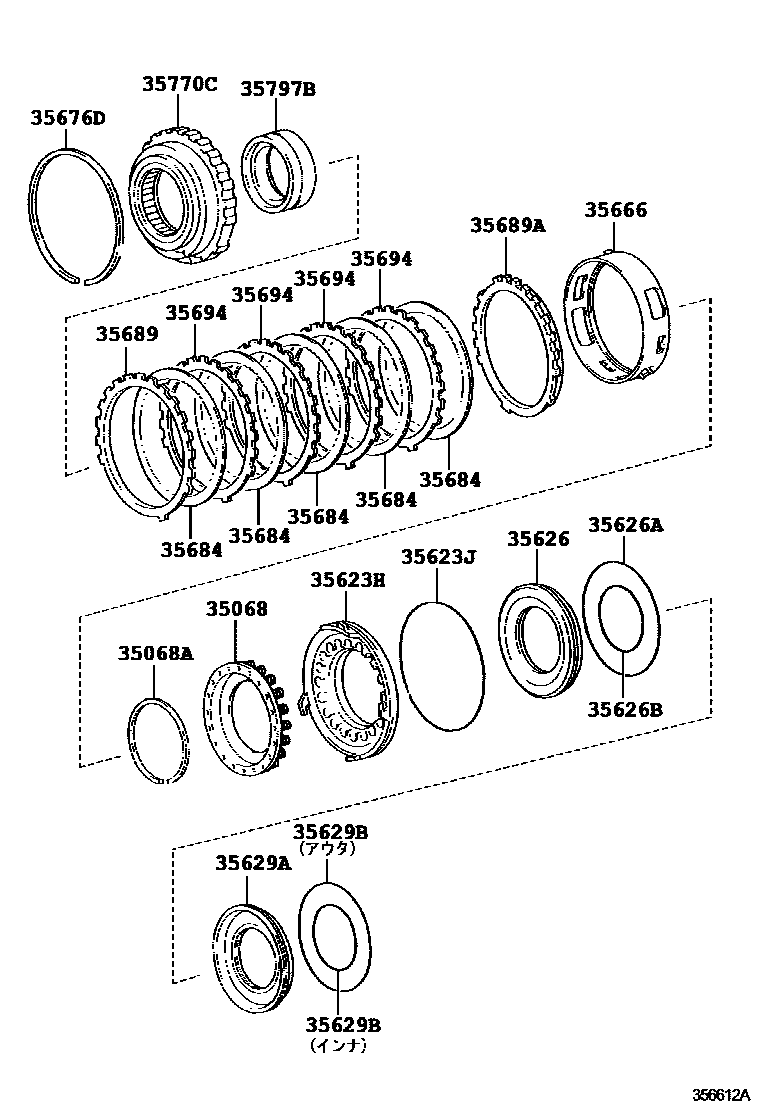

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35623HPISTON, 1ST & REVERSE BRAKE
35623JRING, O (FOR 1ST & REVERSE BRAKE)
35626ARING (FOR BRAKE REACTION SLEEVE OUTER)
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
35629BRING, O (FOR BRAKE PISTON NO.4)
35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)
35684DISC, BRAKE, NO.4
35689FLANGE, BRAKE, NO.4
35689AFLANGE, BRAKE, NO.4
35770CCLUTCH ASSY, 1WAY NO.3
35797BRACE, 1 WAY CLUTCH, INNER
17 parts on this diagram · 2 diagrams in section
