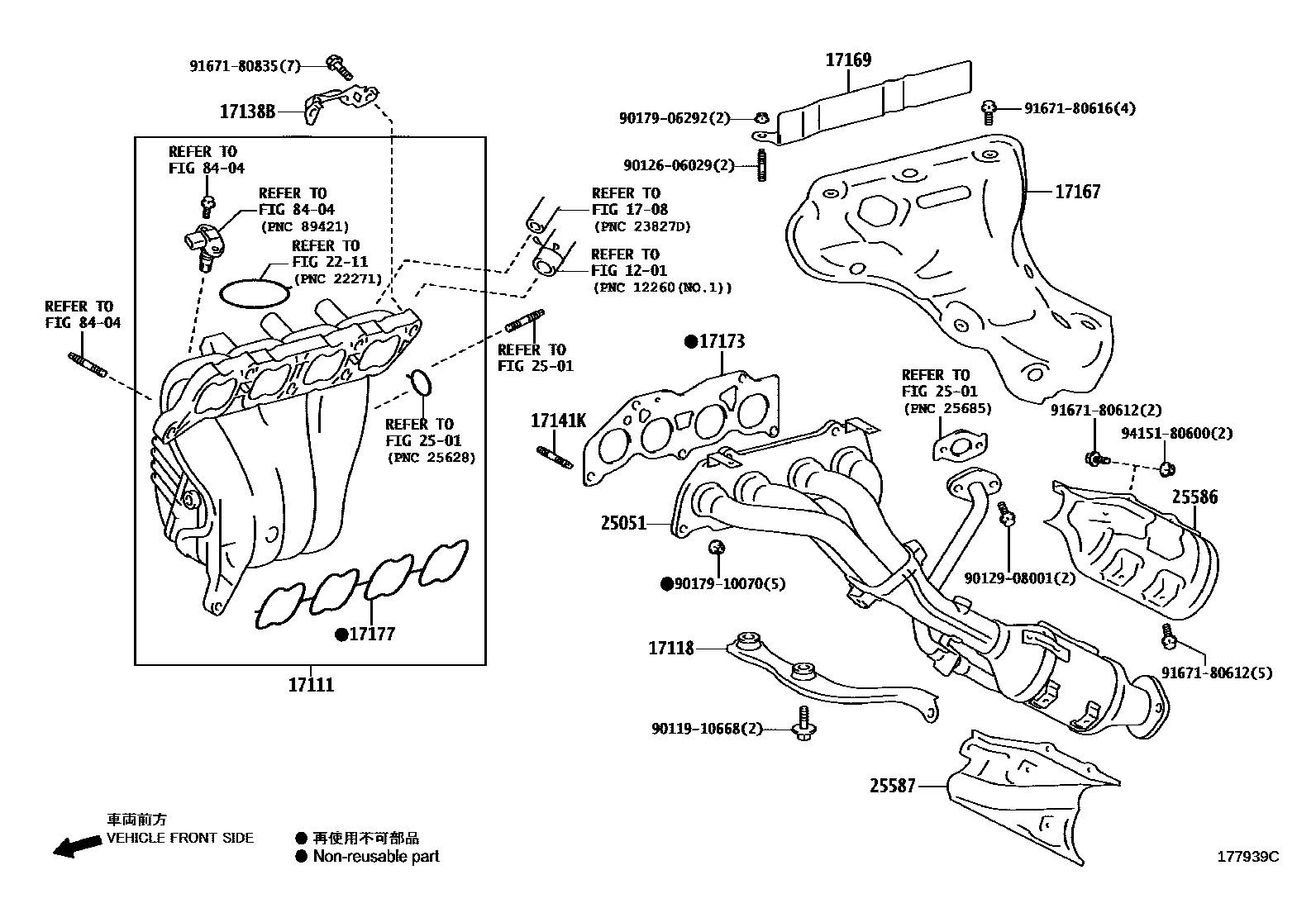

MANIFOLD
1201
1708
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17138BSTAY, INTAKE MANIFOLD
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
2501
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25587INSULATOR, MANIFOLD CONVERTER, NO.2
8404
9011910668
main90119-10668
9012606029
main90126-06029
9012908001
main90129-08001
9017906292
main90179-06292
9017910070
main90179-10070
9167180612
main91671-80612
9167180616
main91671-80616
9167180835
main91671-80835
9415180600
main94151-80600
25 parts on this diagram · 8 diagrams in section
