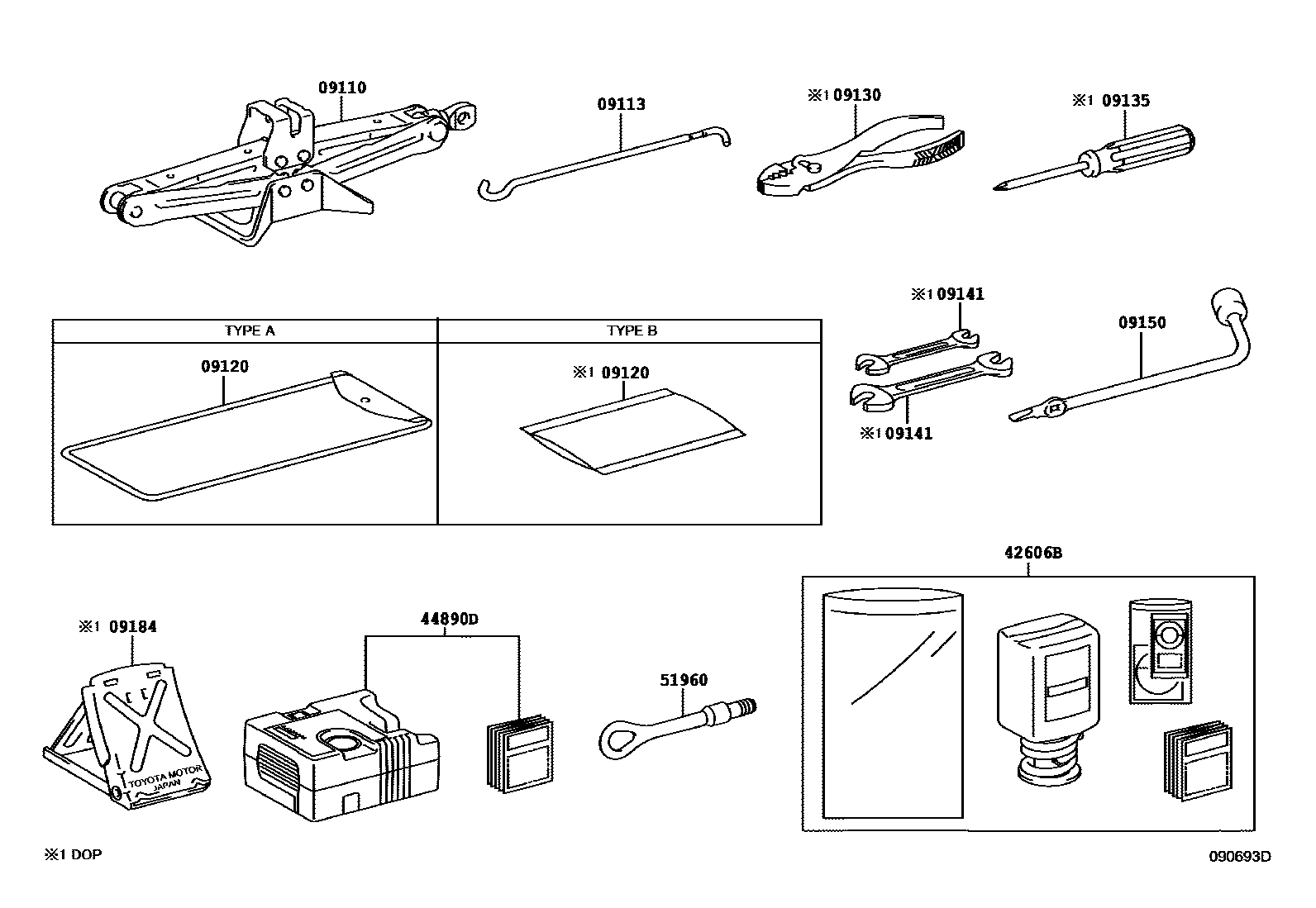

STANDARD TOOL

09110JACK ASSY

main09111-30190iAWS21#,GRS21#,GWS214201212-201509

09113HANDLE, JACK

main09113-42030iAWS21#,GRS21#,GWS214201212-201509

09120BAG, TOOL

main09120-28040supersedes 09120-37030iAWS21#,GRS21#,GWS214201212-201509

09130PLIERS

main99913-11500iARS210,AWS21#,GRS21#,GWS214201509-201804

09135DRIVER, SCREW

main99915-10700iARS210,AWS21#,GRS21#,GWS214201509-201804

09141SPANNER

main99914-10810iARS210,AWS21#,GRS21#,GWS214201509-201804

main99914-11214iAWS21#,GRS21#,GWS214201212-201509

09150WRENCH, HUB NUT BOX

main09150-30020iAWS21#,GRS21#,GWS214201212-201509

09184STOPPER, WHEEL

main09184-00010iARS210,AWS21#,GRS21#,GWS214201509-201804

42606BREPAIR KIT, TUBELESS TIRE

main42606-50040iAWS21#,GRS21#,GWS214201212-201509

44890DCOMPRESSOR ASSY, AIR

main44890-30010iAWS21#,GRS21#,GWS214201212-201509

51960HOOK ASSY, FRONT

main51961-30040iAWS21#,GRS21#,GWS214201212-201509

11 parts on this diagram · 1 diagram in section
