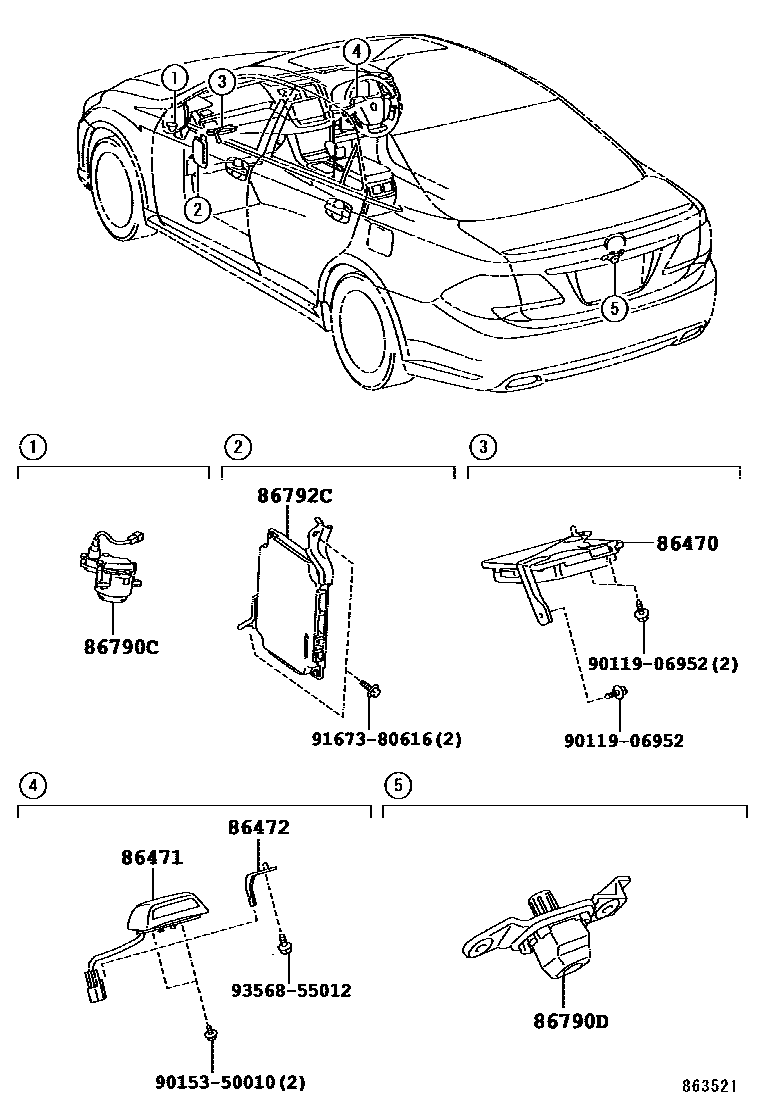

CAMERA & REAR MONITOR DISPLAY

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30020iGRS202,204,GWS204..ATH,HBD,ROYG200802-201002

86471CAMERA, DRIVER MONITOR

main86471-30020iGRS202,204,GWS204..ATH,HBD,ROYG200802-201002

86472BRACKET, DRIVER MONITOR

main86472-50010iGRS202,204,GWS204..ATH,HBD,ROYG200802-201002

86790CCAMERA ASSY, TELEVISION, SIDE

main86790-30100iGRS203;GRS202,204,GWS204..ATH,HBD,ROYG200802-201002

86790DCAMERA ASSY, TELEVISION, RR

main86790-30060iGRS202,203,204,GWS204200802-200906

main86790-30140iGRS202,203,204,GWS204200907-201002

86792CCOMPUTER, PARKING ASSIST

main86792-30180iGRS203;GRS202,204,GWS204..ATH,HBD,ROYG200802-201002

main86792-30190iGRS203;GRS202,204,GWS204..ATH,HBD,ROYG200802-201002

main86792-30290iGRS200,201..CBU201010-201212

main86792-30300iGRS203..CBU;GRS202,204,GWS204..ATH,HBD,ROYG201002-201212

9011906952

main90119-06952

9015350010

main90153-50010

9167380616

main91673-80616

9356855012

main93568-55012

10 parts on this diagram · 1 diagram in section
