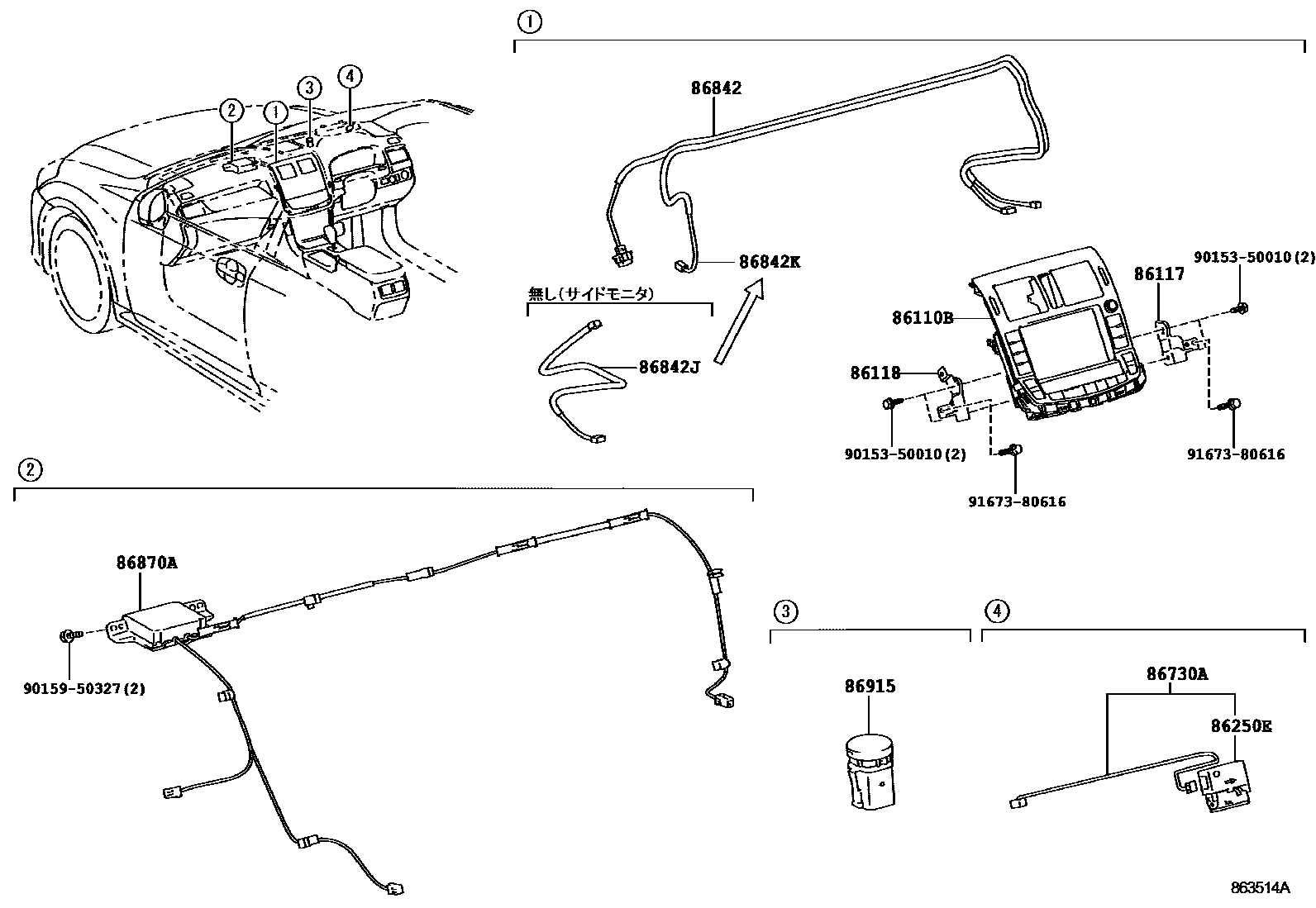

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86110BMULTI-DISPLAY ASSY

main86111-30720supersedes 86111-30730iGRS202,203,204,GWS204200802-201002

main86111-30730iGRS200,201; GRS200..ROY200802-200904

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-30070iGRS20#,GWS204200802-201002

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-30030iGRS20#,GWS204200802-201002

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52020iGRS200..ROY; GRS202,203,204,GWS204200802-201002

86730AMICROPHONE ASSY, TELEPHONE

main86730-30160iGRS200..ROY; GRS202,203,204,GWS204200802-201002

86842WIRE, NAVIGATION, NO.1

main86842-30200iGRS202,203,204,GWS204200802-201002

86842JWIRE, NAVIGATION, NO.2

main86842-30220iGRS202,203,204,GWS204200802-201002

86842KWIRE, NAVIGATION, NO.3

main86842-30250iGRS200,201..ATH; GRS200..ROY; GRS201..ROY200904-201002

86870AANTENNA ASSY, GPS & VICS

main86870-30130supersedes 86870-30120iGRS202,GWS204..HBD,ROYG200802-201002

main86870-30120iGRS200..ROY200904-201002

main86870-30150supersedes 86870-30130iGRS200,201..ATH; GRS200,201..ROY..CBU; GRS202,203,204,GWS204..CBU201011-201212

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iGRS202,203,204..ATH,ROY200802-200904

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

13 parts on this diagram · 2 diagrams in section
