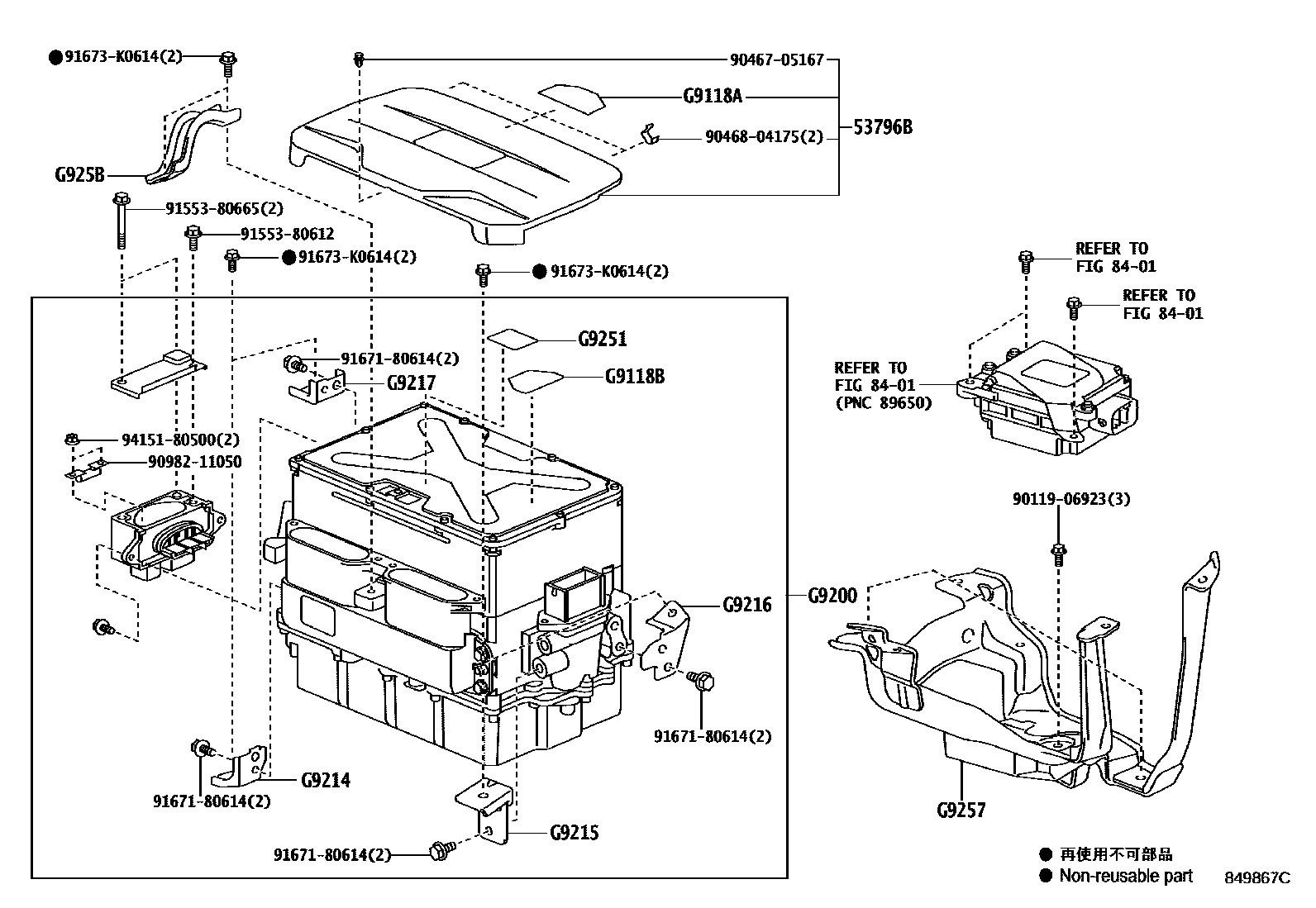

HEV INVERTER

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main51470-30010iGWS204200805-200907

main51470-30011iGWS204201002-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911830030iGWS204200805-201002

G9118BLABEL, POWER CONTROL UNIT CAUTION

mainG911830020iGWS204201002-201212

G9200INVERTER ASSY, W/CONVERTER

mainG920030070iGWS204200805-201002

mainG920030071iGWS204201209-201212

G9214BRACKET, INVERTER, NO.1

mainG921430010iGWS204200805-201002

G9215BRACKET, INVERTER, NO.2

mainG921530010iGWS204200805-201002

G9216BRACKET, INVERTER, NO.3

mainG921630010iGWS204200805-201002

G9217BRACKET, INVERTER, NO.4

mainG921730010iGWS204200805-201002

G9251SEAT, INVERTER NAME

mainG925147010iGWS204200805-201002

G9257BRACKET, INVERTER, NO.5

mainG925730010iGWS204200805-201002

G925BBRACKET, INVERTER, NO.6

mainG925B30010iGWS204200805-201002

9011906923

main90119-06923

9046705167

main90467-05167

9046804175

main90468-04175

9098211050

main90982-11050

9155380612

main91553-80612

9155380665

main91553-80665

9167180614

main91671-80614

91673K0614

main91673-K0614

9415180500

main94151-80500

21 parts on this diagram · 1 diagram in section
