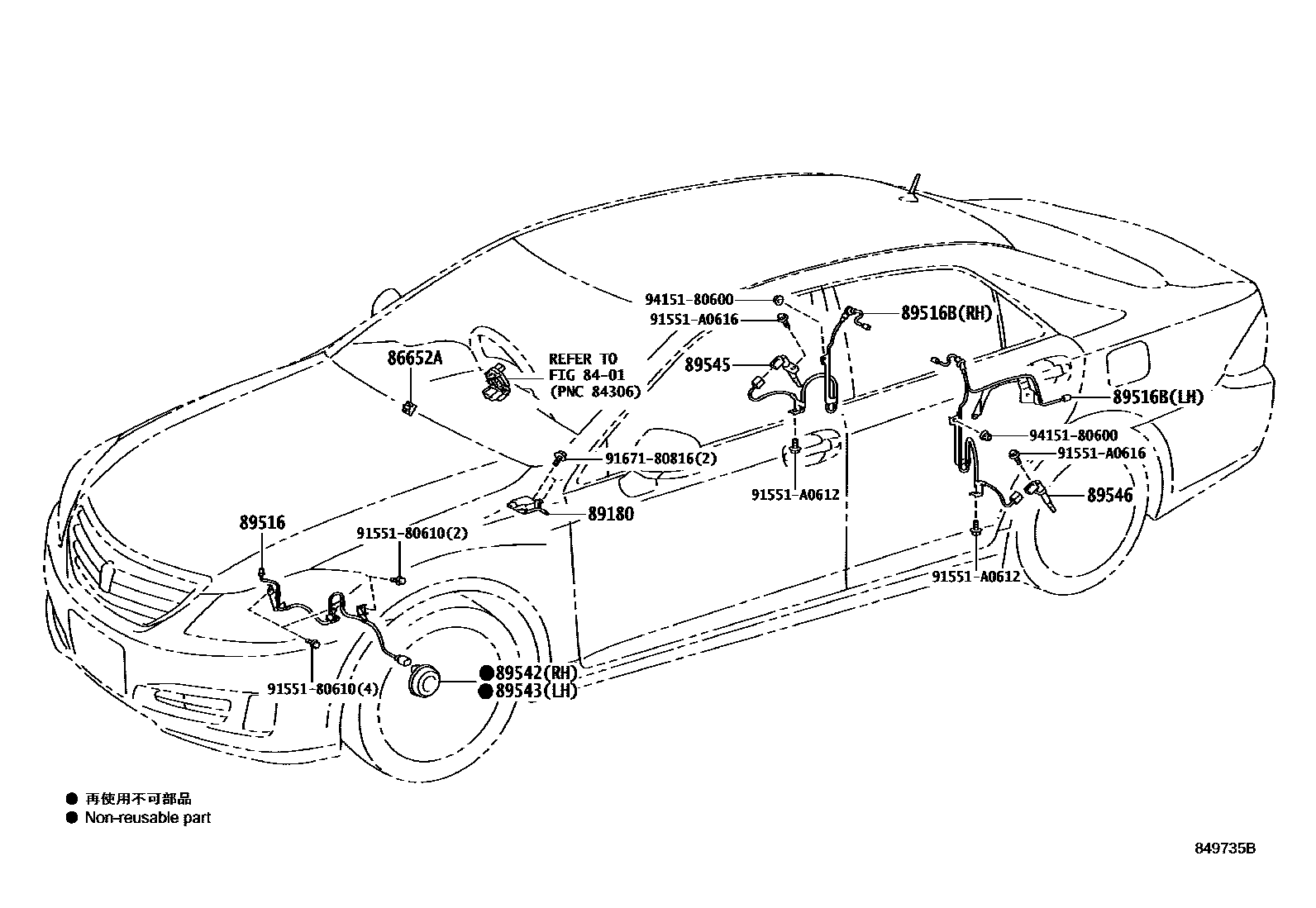

ABS & VSC

0001 1 0002 1 0003 1 0004 1 0005 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iGRS20#,GWS204200802-201002

89180SENSOR ASSY, YAWRATE

main89180-30090iGRS20#,GWS204..CBU201002-201212

89516WIRE, SKID CONTROL SENSOR

main89516-30020iGRS200,202,204,GWS204..CBU200802-201002

main89516-30030iGRS200,202,204,GWS204..CBU201002-201212

main89516-30040iGRS201,203..CBU200802-201002

main89516-30050iGRS201,203..CBU200802-201002

main89516-30150iGRS200,202,204,GWS204..CBU201205-201212

main89516-30190iGRS201,203..CBU201205-201212

89516BWIRE, SKID CONTROL SENSOR

main89516-22020iGRS20#,GWS204..CBU201002-201212

main89516-22040iGRS20#,GWS204200802-201002

89542SENSOR, SPEED, FRONT RH

main89542-30260iGRS200,202,204,GWS204200802-201002

main89542-30270iGRS201,203200802-201002

89543SENSOR, SPEED, FRONT LH

main89543-30260iGRS200,202,204,GWS204200802-201002

main89543-30270iGRS201,203200802-201002

89545SENSOR, SPEED, REAR RH

main89545-30070iGRS20#,GWS204200802-201002

89546SENSOR, SPEED, REAR LH

main89546-30070iGRS20#,GWS204200802-201002

9155180610

main91551-80610

91551A0612

main91551-A0612

91551A0616

main91551-A0616

9167180816

main91671-80816

9415180600

main94151-80600

14 parts on this diagram · 5 diagrams in section
