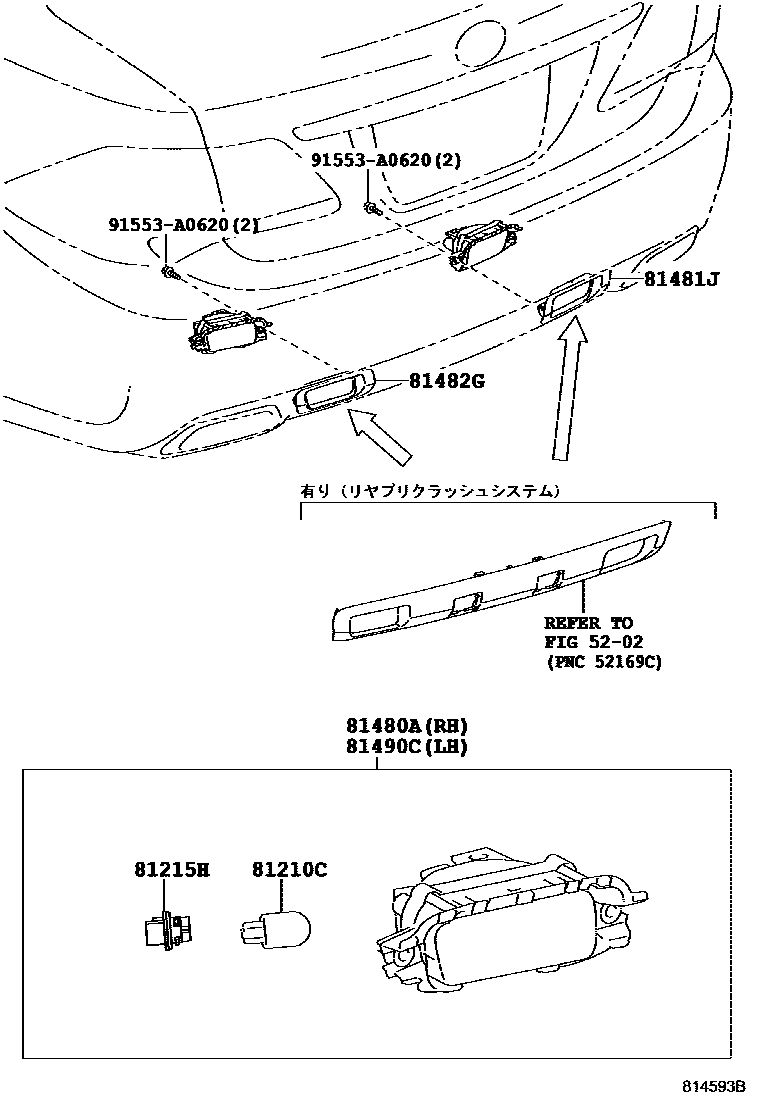

REAR FOG LAMP

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

81210CBULB, REAR FOG LAMP

main90981-13043×2iGRS20#,GWS204..CBU; GRS202,204,GWS204..ATH,HBD,ROYG200802-200904

81215HSOCKET, REAR FOG LAMP

main81459-30010×2iGRS20#,GWS204..CBU; GRS202,204,GWS204..ATH,HBD,ROYG200802-200904

81480ALAMP ASSY, REAR FOG, RH

main81480-30010iGRS20#,GWS204; GRS202,204,GWS204..ATH,HBD,ROYG200802-200904

81481JCOVER, REAR FOG LAMP, RH

main81481-30070-A1iGRS20#,GWS204..CBU201002-201212

main81481-30070-A2iGRS200,201,202,203..ROY200904-201002

main81481-30070-B0iGRS20#,GWS204200904-201002

main81481-30070-B1iGRS20#,GWS204..CBU201002-201212

main81481-30070-B2iGRS200,201,204..ATH200904-201002

main81481-30070-C0iGRS20#,GWS204200802-200904

main81481-30070-D0iGRS20#..CBU201002-201212

main81481-30070-F0iGRS20#..CBU201002-201212

main81481-30070-G0iGRS20#200802-200904

main81481-30070-J0iGRS20#,GWS204200904-201002

main81481-30070-J1iGWS204200904-201002

81482GCOVER, REAR FOG LAMP, LH

main81482-30090-A1iGRS20#,GWS204200802-200904

main81482-30090-A2iGRS200,201,202,203..ROY200904-201002

main81482-30090-B0iGRS20#,GWS204200904-201002

main81482-30090-B1iGRS20#,GWS204..CBU201002-201212

main81482-30090-B2iGRS200,201,204..ATH200904-201002

main81482-30090-C0iGRS20#,GWS204200904-201002

main81482-30090-D0iGRS20#,GWS204200802-200904

main81482-30090-F0iGRS20#..CBU201002-201212

main81482-30090-G0iGRS20#200802-200904

main81482-30090-J0iGRS20#,GWS204200802-200904

main81482-30090-J1iGWS204200805-200904

81490CLAMP ASSY, REAR FOG, LH

main81490-30010iGRS20#,GWS204; GRS202,204,GWS204..ATH,HBD,ROYG200802-200904

91553A0620

main91553-A0620

8 parts on this diagram · 1 diagram in section
