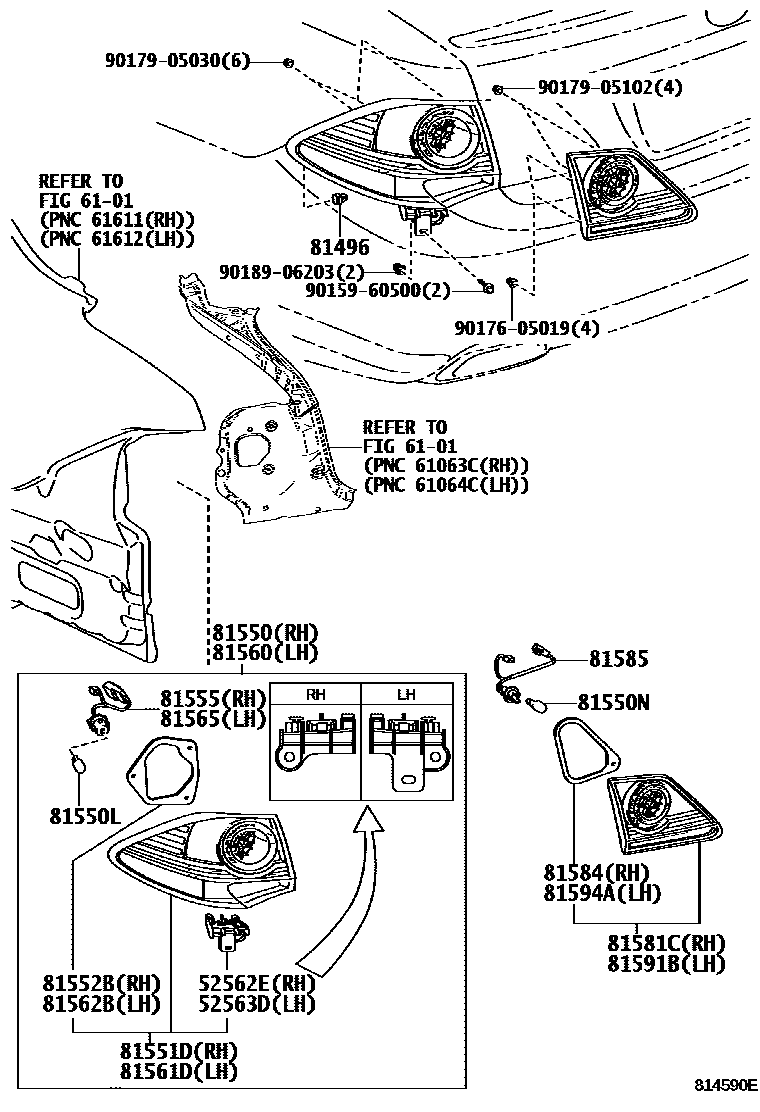

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-30140iGRS20#,GWS204200802-201001

main52562-30141iGRS20#,GWS204201001-201002

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-30090iGRS20#,GWS204200802-201001

main52563-30091iGRS20#,GWS204201001-201002

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iGRS20#,GWS204..CBU200802-201002

81550LAMP ASSY, REAR COMBINATION, RH

main81550-30B50iGRS200,201,202,203..ROY,ROYG200802-201002

main81550-30B70iGRS200,201,204..ATH200802-200903

main81550-30B71iGRS200,201,204..ATH200903-201002

main81550-30B90iGWS204200805-200806

main81550-30B91iGWS204200806-201002

main81550-30C50iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201212

main81550-30C60iGRS200,201,204..ATH201002-201212

main81550-30C70iGWS204201002-201212

main81550-30D00iGRS200,201..ATH201203-201204

main81550-30D01iGRS200,201..ATH201204-201212

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iGRS20#,GWS204200802-201002

81550NBULB, BACK UP LAMP

main90981-11059×2iGRS20#,GWS204..CBU200802-201002

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-30B50iGRS200,201,202,203..ROY,ROYG200802-201002

main81551-30B70iGRS200,201,204..ATH200802-200903

main81551-30B71iGRS200,201,204..ATH200903-201002

main81551-30B90iGWS204200805-200806

main81551-30B91iGWS204200806-201002

main81551-30C50iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201212

main81551-30C60iGRS200,201,204..ATH201002-201212

main81551-30C70iGWS204201002-201212

main81551-30D00iGRS200,201..ATH201203-201204

main81551-30D01iGRS200,201..ATH201204-201212

81552BPACKING, REAR COMBINATION LAMP BODY, RH

main81552-30B50iGRS200,201,202,203..ROY,ROYG200802-201002

main81552-30B70iGRS200,201,204,GWS204..ATH,HBD200802-201002

main81552-30C50iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

main81554-30C60iGRS200,201,204..ATH201002-201212

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30B50iGRS200,201,202,203..ROY,ROYG200802-201002

main81555-30C50iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

main81555-30C60iGRS200,201,204,GWS204..ATH,HBD200802-201002

81560LAMP ASSY, REAR COMBINATION, LH

main81560-30B60iGRS200,201,202,203..ROY,ROYG200802-201002

main81560-30B80iGRS200,201,204..ATH200802-200903

main81560-30B81iGRS200,201,204..ATH200903-201002

main81560-30C00iGWS204200805-200806

main81560-30C01iGWS204200806-201002

main81560-30C20iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201212

main81560-30C30iGRS200,201,204..ATH201002-201212

main81560-30C40iGWS204201002-201212

main81560-30D00iGRS200,201..ATH201203-201204

main81560-30D01iGRS200,201..ATH201204-201212

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-30B60iGRS200,201,202,203..ROY,ROYG200802-201002

main81561-30B80iGRS200,201,204..ATH200802-200903

main81561-30B81iGRS200,201,204..ATH200903-201002

main81561-30C00iGWS204200805-200806

main81561-30C01iGWS204200806-201002

main81561-30C20iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201212

main81561-30C30iGRS200,201,204..ATH201002-201212

main81561-30C40iGWS204201002-201212

main81561-30D00iGRS200,201..ATH201203-201204

main81561-30D01iGRS200,201..ATH201204-201212

81562BPACKING, REAR COMBINATION LAMP BODY, LH

main81552-30B50iGRS200,201,202,203..ROY,ROYG200802-201002

main81552-30B70iGRS200,201,204,GWS204..ATH,HBD200802-201002

main81552-30C50iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

main81554-30C60iGRS200,201,204..ATH201002-201212

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-30B60iGRS200,201,202,203..ROY,ROYG200802-201002

main81565-30C20iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

main81565-30C30iGRS200,201,204..ATH201002-201212

81581CLENS AND BODY, REAR LAMP, RH

main81581-30370iGRS200,201,202,203..ROY,ROYG200802-201002

main81581-30390iGRS200,201,204..ATH200802-200903

main81581-30391iGRS200,201,204..ATH200903-201002

main81581-30410iGWS204200805-201002

main81581-30460iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201012

main81581-30461iGRS200,201,202,203..(ROY,ROYG)..CBU201012-201204

main81581-30462iGRS200,201,202,203..(ROY,ROYG)..CBU201204-201212

main81581-30470iGRS200,201,204..ATH201002-201012

main81581-30471iGRS200,201,204..ATH201012-201204

main81581-30472iGRS200,201,204..ATH201204-201212

main81581-30480iGWS204201002-201012

main81581-30481iGWS204201012-201204

main81581-30482iGWS204201204-201212

main81581-30511iGRS200,201..ATH201203-201204

main81581-30512iGRS200,201..ATH201204-201212

81584PACKING, REAR LAMP RH

main81584-30370iGRS200,201,202,203..ROY,ROYG200802-201002

main81584-30390iGRS200,201,204,GWS204..ATH,HBD200802-201002

main81584-30460iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201012

main81584-30461iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201012-201212

main81584-30470iGRS200,201,204..ATH201002-201012

main81584-30471iGRS200,201,204..ATH201012-201212

81585SOCKET & WIRE, REAR LAMP

main81585-30370×2iGRS200,201,202,203..ROY,ROYG200802-201002

main81585-30390×2iGRS200,201,204,GWS204..ATH,HBD200802-201002

main81585-30460×2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

81591BLENS AND BODY, REAR LAMP, LH

main81591-30310iGRS200,201,202,203..ROY,ROYG200802-201002

main81591-30330iGRS200,201,204..ATH200802-200903

main81591-30331iGRS200,201,204..ATH200903-201002

main81591-30350iGWS204200805-201002

main81591-30400iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201012

main81591-30401iGRS200,201,202,203..(ROY,ROYG)..CBU201012-201204

main81591-30402iGRS200,201,202,203..(ROY,ROYG)..CBU201204-201212

main81591-30411iGRS200,201,204..ATH201002-201012

main81591-30412iGRS200,201,204..ATH201012-201204

main81591-30413iGRS200,201,204..ATH201204-201212

main81591-30420iGWS204201002-201012

main81591-30421iGWS204201012-201204

main81591-30422iGWS204201204-201212

main81591-30511iGRS200,201..ATH201203-201204

main81591-30512iGRS200,201..ATH201204-201212

81594AGASKET, REAR LAMP LH

main81584-30370iGRS200,201,202,203..ROY,ROYG200802-201002

main81584-30390iGRS200,201,204..ATH200802-200805

main81594-30330iGRS200,201,204,GWS204..ATH,HBD200805-201002

main81594-30400iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201012

main81594-30401iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201012-201212

main81594-30410iGRS200,201,204..ATH201002-201012

main81594-30411iGRS200,201,204..ATH201012-201212

9015960500

main90159-60500

9017605019

main90176-05019

9017905030

main90179-05030

9017905102

main90179-05102

9018906203

main90189-06203

24 parts on this diagram · 4 diagrams in section
