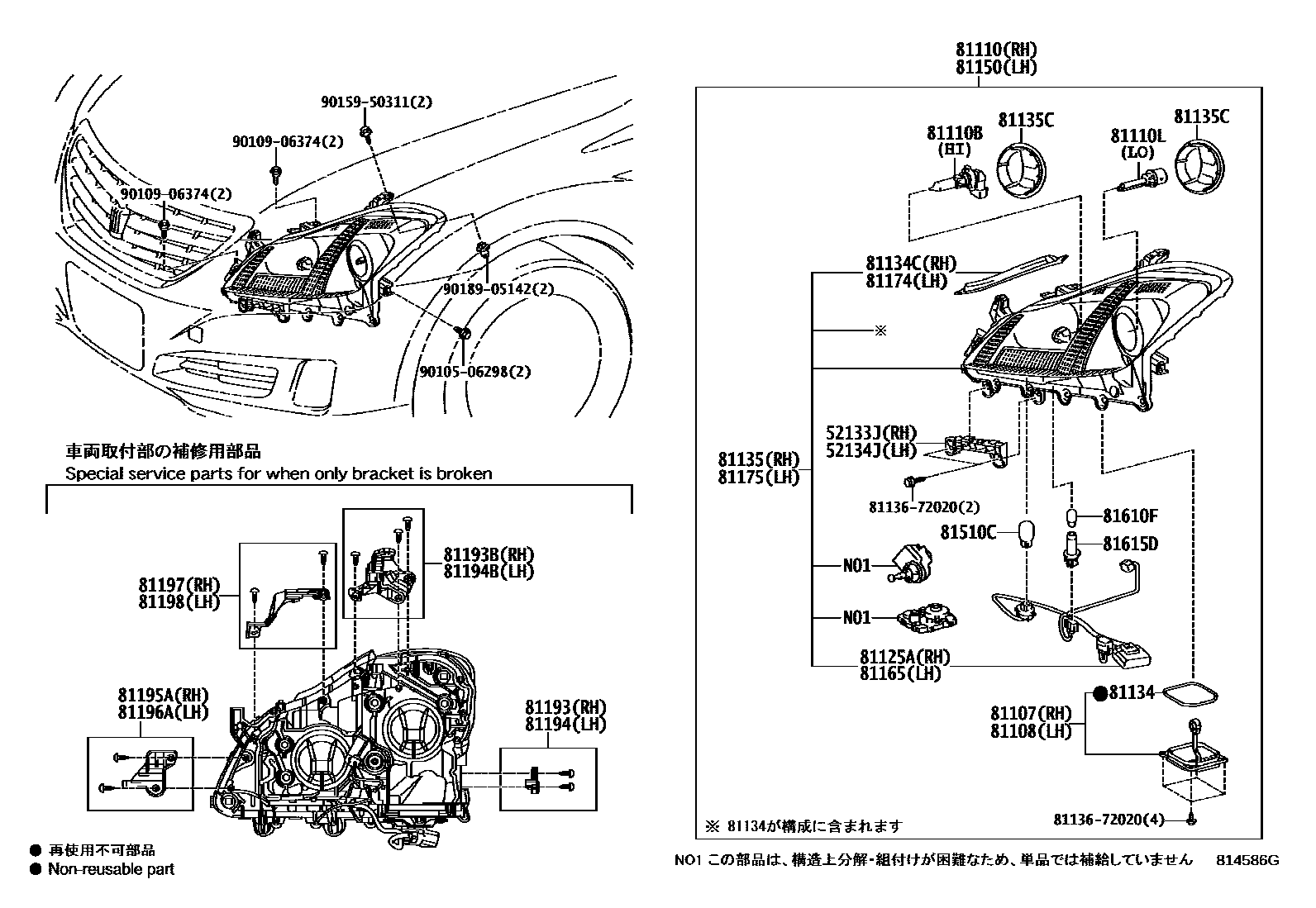

HEADLAMP

0001 1 0002 1 0003 1 0004 1 0005 1������������-��(*DMO & *RPCS)0006 1������������-��(*DMO & *RPCS)

52133JREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-30140iGRS20#,GWS204..CBU201002-201212

52134JREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-30120iGRS20#,GWS204..CBU200802-201002

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-22A10iGRS20#,GWS204..CBU200802-201002

main81107-33761iGRS20#,GWS204..CBU201008-201212

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-22A10iGRS20#,GWS204..CBU200802-201002

main81107-33761iGRS20#,GWS204..CBU201008-201212

81110HEADLAMP ASSY, RH

main81110-30C50iGRS200,201,202,203..(ROY,ROYG)..CBU200802-200902

main81110-30C51iGRS200,201,202,203..(ROY,ROYG)..CBU200903-201001

main81110-30C52iGRS200,201,202,203..(ROY,ROYG)..CBU201010-201212

main81110-30C60iGRS200,201,204..ATH200802-200902

main81110-30C61iGRS200,201,204..ATH201002-201009

main81110-30C62iGRS200,201,204..ATH201010-201212

main81110-30C80supersedes 81110-30C70iGWS204200805-200812

main81110-30C81supersedes 81110-30C71iGWS204200812-200902

main81110-30C82supersedes 81110-30E91iGWS204200903-201001

main81110-30F00supersedes 81110-30E91iGWS204201002-201009

main81110-30F01supersedes 81110-30E91iGWS204201010-201212

main81110-30J80iGRS200,201,202,203..ROY..CBU201111-201204

main81110-30J90iGRS200,201..ATH201111-201204

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iGRS20#,GWS204..CBU200802-200903

main90981-13046×2iGRS20#,GWS204..CBU201002-201212

main90981-13081×2iGWS204200805-200903

81110LBULB, DISCHARGE HEADLAMP

main90981-20026×2iGRS20#..CBU200802-200810

main90981-20027×2iGRS20#,GWS204..CBU200811-201002

81125ACORD, HEADLAMP, RH

main81125-30C50iGRS20#..CBU200802-201002

main81125-30C80supersedes 81125-30C70iGWS204200805-201002

81134GASKET, HEADLAMP

main90075-68007iGRS20#,GWS204..CBU200802-201002

81134CGASKET, HEADLAMP BODY, RH

main81134-30C50iGRS20#,GWS204..CBU200802-201002

81135UNIT ASSY, HEADLAMP, RH

main81145-30C50iGRS200,201,202,203..(ROY,ROYG)..CBU200802-200903

main81145-30C51iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201010

main81145-30C52iGRS200,201,202,203..(ROY,ROYG)..CBU201010-201212

main81145-30C60iGRS200,201,204..ATH200802-200903

main81145-30C61iGRS200,201,204..ATH201002-201010

main81145-30C62iGRS200,201,204..ATH201010-201212

main81145-30C80supersedes 81145-30C70iGWS204200805-200812

main81145-30C81supersedes 81145-30C71iGWS204200812-200903

main81145-30C82supersedes 81145-30C72iGWS204200903-201002

main81145-30F00supersedes 81145-30E90iGWS204201002-201010

main81145-30F01supersedes 81145-30E91iGWS204201010-201212

main81145-30J80iGRS200,201,202,203..ROY..CBU201111-201204

main81145-30J90iGRS200,201..ATH201203-201212

81135CCOVER, HEADLAMP BACK, NO.1

main81135-30A60×4iGRS20#,GWS204..CBU201002-201212

81150HEADLAMP ASSY, LH

main81150-30C50iGRS200,201,202,203..(ROY,ROYG)..CBU200802-200902

main81150-30C51iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201009

main81150-30C52iGRS200,201,202,203..(ROY,ROYG)..CBU201010-201212

main81150-30C60iGRS200,201,204..ATH200802-200902

main81150-30C61iGRS200,201,204..ATH201002-201009

main81150-30C62iGRS200,201,204..ATH201010-201212

main81150-30C80supersedes 81150-30C70iGWS204200805-200812

main81150-30C81supersedes 81150-30C71iGWS204200812-200902

main81150-30C82supersedes 81150-30F01iGWS204200903-201001

main81150-30F10supersedes 81150-30F01iGWS204201002-201009

main81150-30F11supersedes 81150-30F01iGWS204201010-201212

main81150-30J80iGRS200,201,202,203..ROY..CBU201111-201204

main81150-30J90iGRS200,201..ATH201203-201212

81165CORD, HEADLAMP, LH

main81165-30C50iGRS20#..CBU200802-201002

main81165-30C80supersedes 81165-30C70iGWS204200805-201002

81174GASKET, HEADLAMP BODY, LH

main81174-30C50iGRS20#,GWS204..CBU200802-201002

81175UNIT ASSY, HEADLAMP, LH

main81185-30C50iGRS200,201,202,203..(ROY,ROYG)..CBU200802-200903

main81185-30C51iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201010

main81185-30C52iGRS200,201,202,203..(ROY,ROYG)..CBU201010-201212

main81185-30C60iGRS200,201,204..ATH200802-200903

main81185-30C61iGRS200,201,204..ATH201002-201010

main81185-30C62iGRS200,201,204..ATH201010-201212

main81185-30C80supersedes 81185-30C70iGWS204200805-200812

main81185-30C81supersedes 81185-30C71iGWS204200812-200903

main81185-30C82supersedes 81185-30C72iGWS204200903-201002

main81185-30F10supersedes 81185-30F00iGWS204201002-201010

main81185-30F11supersedes 81185-30F01iGWS204201010-201212

main81185-30J80iGRS200,201,202,203..ROY..CBU201012-201204

main81185-30J90iGRS200,201..ATH201203-201212

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-30030iGRS20#,GWS204200802-201002

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-30040iGRS20#,GWS204200802-201002

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-30040iGRS20#,GWS204200802-201002

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-30050iGRS20#,GWS204200802-201002

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-30030iGRS20#,GWS204200802-201002

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-30030iGRS20#,GWS204200802-201002

81197BRACKET, HEADLAMP, LOWER RH

main81197-30030iGRS20#,GWS204200802-201002

81198BRACKET, HEADLAMP, LWR LH

main81198-30030iGRS20#,GWS204200802-201002

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iGRS20#,GWS204..CBU200802-201002

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iGRS20#,GWS204..CBU200802-201002

81615DSOCKET, CLEARANCE LAMP

main81138-22680×2iGRS20#200802-201002

8113672020PROTECTOR, HEADLAMP, NO.1 RH

main81136-72020

9010506298

main90105-06298

9010906374

main90109-06374

9015950311

main90159-50311

9018905142

main90189-05142

32 parts on this diagram · 6 diagrams in section
