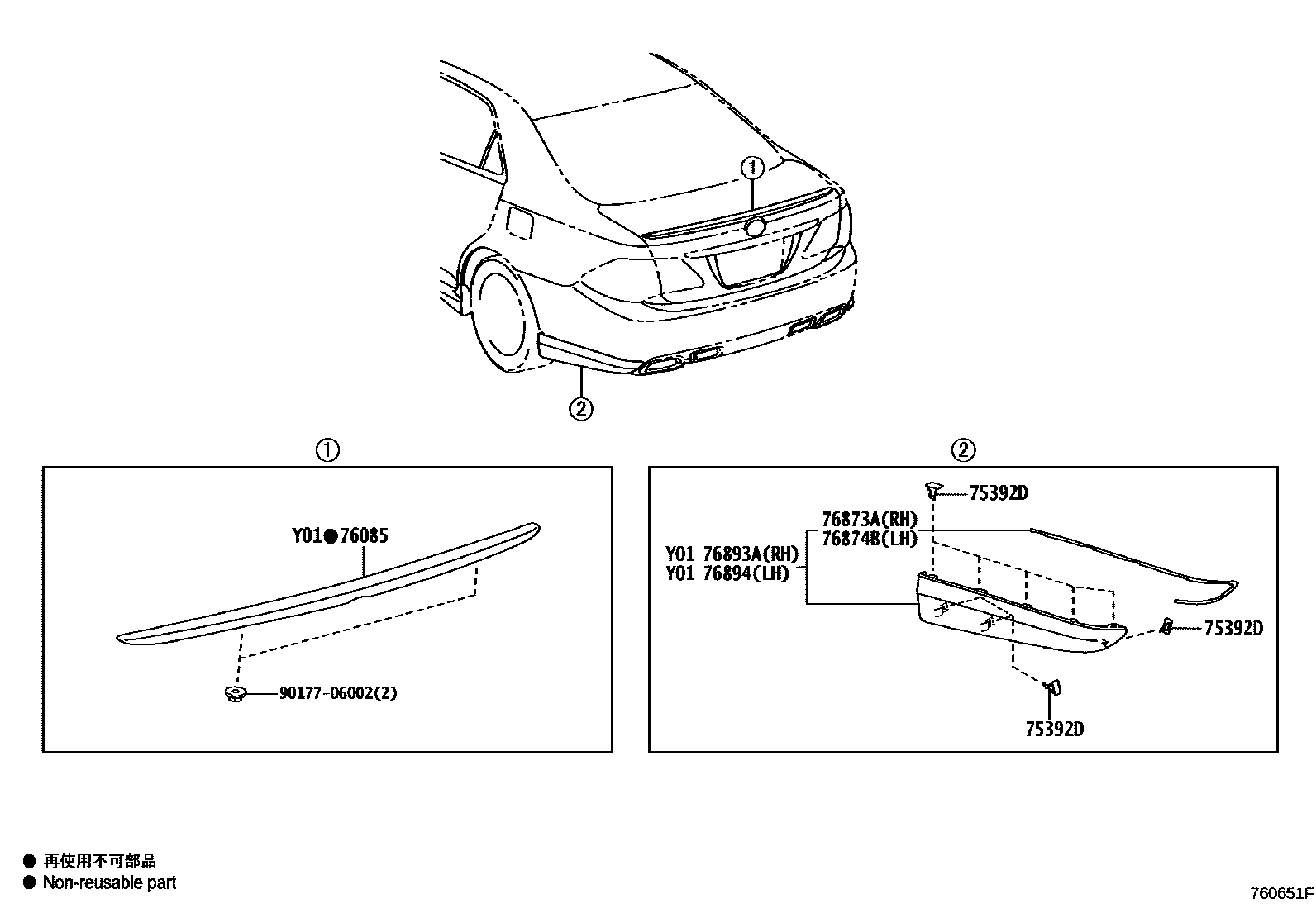

MUDGUARD & SPOILER

75392DRETAINER, OUTSIDE MOULDING

main75392-35200iGRS200,201,204..ATH200802-201212

76085SPOILER SUB-ASSY, REAR

main76085-30060-A0iGRS200,201,204,GWS204..ATH,HBD200802-201002

WHITE PEARL CS.,062

main76085-30060-B0iGRS200,201,204,GWS204..ATH,HBD200802-201002

SILVER ME.,1F7

main76085-30060-B1iGRS200,201,204,GWS204..ATH,HBD200802-201002

PREMIUM SILVER PEARL,1F3

main76085-30060-B2iGRS200,201,204..ATH200904-201002

GRAY ME.,1F9

main76085-30060-C0iGRS200,201,204,GWS204..ATH,HBD200802-201002

BLACK,202

main76085-30060-D0iGRS200,201,204..ATH200802-201002

BLACKISH RED MC.,3R0

main76085-30060-G0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK.GREEN MC.,6V4

main76085-30060-J0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK.BLUE MC.,8S6

main76085-30060-J1iGWS204200805-201002

main76085-30060-J1iGWS204200805-201002

main76085-30060-J1iGWS204200805-201002

LIGHT BLUE MICA METALLIC,8U8

main76085-30060-J1iGWS204200805-201002

main76085-30080-A0iGRS200,201,204..ATH201002-201212

WHITE PEARL CS.,062

main76085-30080-B0iGRS200,201,204..ATH201002-201212

PREMIUM SILVER PEARL,1F3

main76085-30080-B1iGRS200,201,204..ATH201002-201212

SILVER ME.,1F7

main76085-30080-C0iGRS200,201,204..ATH201002-201212

BLACK,202

main76085-30080-D0iGRS200,201,204..ATH201002-201212

BLACKISH RED MC.,3R0

main76085-30080-F0iGRS200,201,204..ATH201002-201212

SILKY GOLD M.M.,5A4

main76085-30080-J0iGRS200,201,204..ATH201002-201212

DK.BLUE MC.,8S6

76873APROTECTOR, REAR SPOILER, RH

main76873-30030-A0iGRS200,201,204,GWS204..ATH,HBD200802-201212

WHITE,062

main76873-30030-B0iGRS200,201,204,GWS204..ATH,HBD200802-201212

BLUISH GRAY ME.,1F7

main76873-30030-B1iGRS200,201,204,GWS204..ATH,HBD200802-201212

SILVER ME.,1F3

main76873-30030-B2iGWS204200805-201002

DARK GRAY,202 ,8S6

main76873-30030-B2iGRS200,201,204..ATH201002-201212

DARK GRAY,202 ,3R0 ,8S6

main76873-30030-B2iGRS200,201,204..ATH200802-201002

DARK GRAY,1F9 ,202 ,3R0 ,6V4 ,8S6

main76873-30030-F0iGRS200,201,204..ATH201002-201212

CHAMPAGNE ME.,5A4

main76873-30030-J0iGWS204200805-201002

LT.BLUE,8U8

76874BPROTECTOR, REAR SPOILER, LH

main76874-30030-A0iGRS200,201,204..ATH200802-201212

WHITE,062

main76874-30030-B0iGRS200,201,204,GWS204..ATH,HBD200802-201212

BLUISH GRAY ME.,1F7

main76874-30030-B1iGRS200,201,204,GWS204..ATH,HBD200802-201212

SILVER ME.,1F3

main76874-30030-B2iGWS204200805-201002

DARK GRAY,202 ,8S6

main76874-30030-B2iGRS200,201,204..ATH200802-201002

DARK GRAY,1F9 ,202 ,3R0 ,6V4 ,8S6

main76874-30030-B2iGRS200,201,204..ATH201002-201212

DARK GRAY,202 ,3R0 ,8S6

main76874-30030-F0iGRS200,201,204..ATH201002-201212

CHAMPAGNE ME.,5A4

main76874-30030-J0iGWS204200805-201002

LT.BLUE,8U8

76893ACOVER, REAR SPOILER, RH

main76893-30040-A0iGRS200,201,204..ATH200802-201212

WHITE PEARL CS.,062

main76893-30040-B0iGRS200,201,204,GWS204..ATH,HBD200802-201212

SILVER ME.,1F7

main76893-30040-B1iGRS200,201,204..ATH200802-201212

PREMIUM SILVER PEARL,1F3

main76893-30040-B2iGRS200,201,204..ATH200904-201002

GRAY ME.,1F9

main76893-30040-C0iGRS200,201,204,GWS204..ATH,HBD200802-201212

BLACK,202

main76893-30040-D0iGRS200,201,204..ATH200802-201212

BLACKISH RED MC.,3R0

main76893-30040-F0iGRS200,201,204..ATH201002-201212

SILKY GOLD M.M.,5A4

main76893-30040-G0iGRS200,201,204..ATH200802-201002

DK.GREEN MC.,6V4

main76893-30040-J0iGRS200,201,204..ATH200802-201212

DK.BLUE MC.,8S6

main76893-30040-J1iGWS204200805-201002

LIGHT BLUE MICA METALLIC,8U8

76894COVER, REAR SPOILER, LH

main76894-30040-A0iGRS200,201,204..ATH200802-201212

WHITE PEARL CS.,062

main76894-30040-B0iGRS200,201,204,GWS204..ATH,HBD200802-201212

SILVER ME.,1F7

main76894-30040-B1iGRS200,201,204,GWS204..ATH,HBD200802-201212

PREMIUM SILVER PEARL,1F3

main76894-30040-B2iGRS200,201,204..ATH200904-201002

GRAY ME.,1F9

main76894-30040-C0iGRS200,201,204..ATH200802-201212

BLACK,202

main76894-30040-D0iGRS200,201,204..ATH200802-201212

BLACKISH RED MC.,3R0

main76894-30040-F0iGRS200,201,204..ATH201002-201212

SILKY GOLD M.M.,5A4

main76894-30040-G0iGRS200,201,204..ATH200802-201002

DK.GREEN MC.,6V4

main76894-30040-J0iGRS200,201,204..ATH200802-201212

DK.BLUE MC.,8S6

main76894-30040-J1iGWS204200805-201002

LIGHT BLUE MICA METALLIC,8U8

9017706002

main90177-06002

7 parts on this diagram · 1 diagram in section
