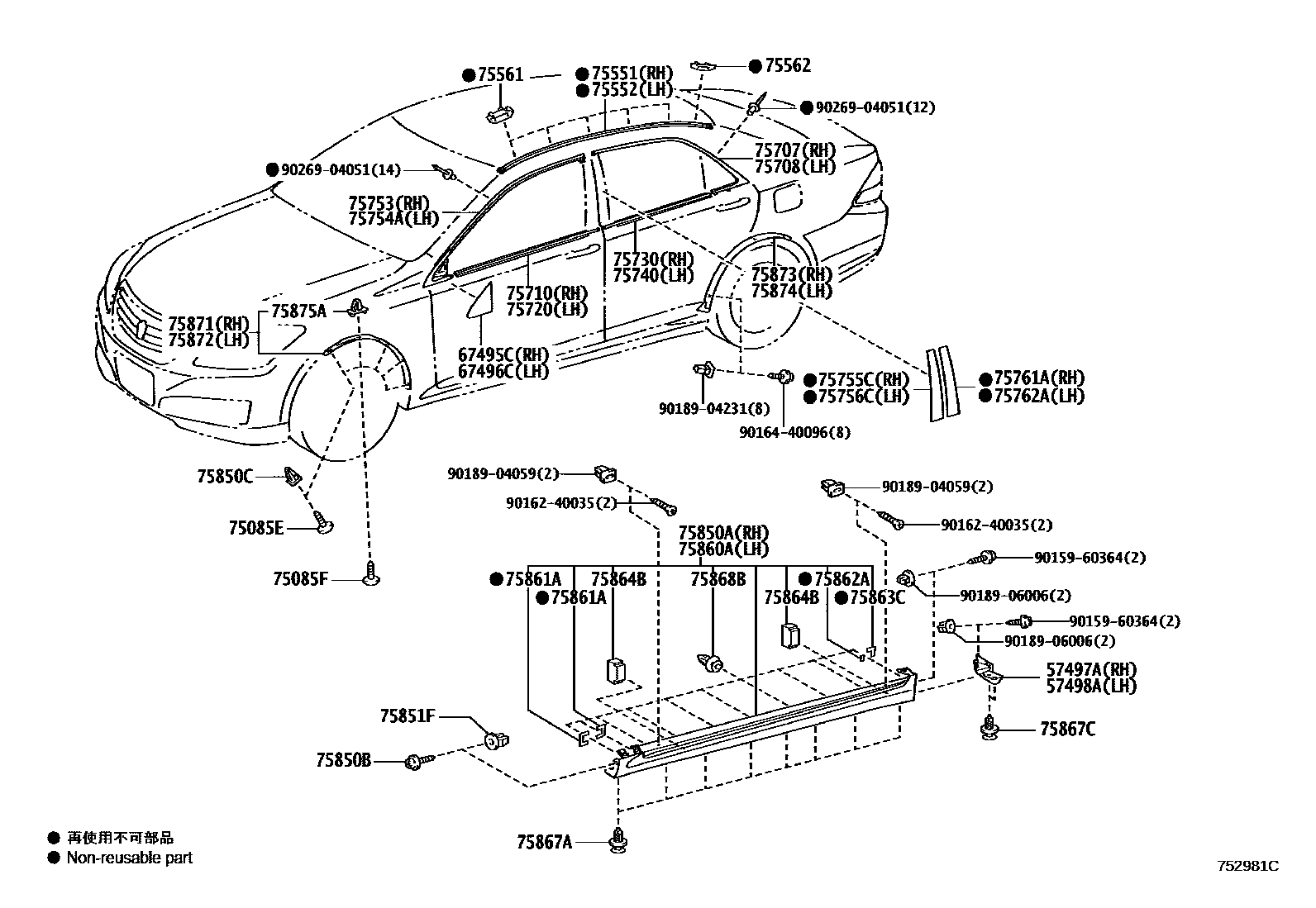

SIDE MOULDING

57497ASHIELD, REAR FLOOR HOUSING

main57497-30030iGRS20#,GWS204..CBU200802-201002

57498ASHIELD, REAR FLOOR HOUSING, NO.2

main57498-30030iGRS20#,GWS204..CBU200802-201002

67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-30100iGRS20#,GWS204200802-201002

67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-30090iGRS20#,GWS204200802-201002

75085ESCREW, NO.1

main90164-40096×8iGRS20#,GWS204..CBU200802-201002

75085FSCREW, NO.2

main90164-40096×2iGRS20#,GWS204..CBU200802-201002

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-30450-A1iGRS20#,GWS204..CBU201002-201212

WHITE PEARL CS.,062

main75551-30450-A2iGRS200,201,202,203..ROY..CBU200904-201002

VANILLA WHITE,067

main75551-30450-B0iGRS20#,GWS204..CBU201002-201212

SILVER ME.,1F7

main75551-30450-B1iGRS20#,GWS204200802-201002

PREMIUM SILVER PEARL,1F3

main75551-30450-B2iGRS200,201,204..ATH200904-201002

GRAY ME.,1F9

main75551-30450-C0iGRS20#,GWS204200802-201002

BLACK,202

main75551-30450-D0iGRS20#200802-201002

BLACKISH RED MC.,3R0

main75551-30450-F0iGRS20#..CBU201002-201212

SILKY GOLD M.M.,5A4

main75551-30450-G0iGRS20#,GWS204200802-201002

DK.GREEN MC.,6V4

main75551-30450-J0iGRS20#,GWS204200802-201002

DK.BLUE MC.,8S6

main75551-30450-J1iGWS204201002-201212

LIGHT BLUE MICA METALLIC,8U8

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-30450-A1iGRS20#,GWS204..CBU201002-201212

WHITE PEARL CS.,062

main75552-30450-A2iGRS200,201,202,203..ROY..CBU200904-201002

VANILLA WHITE,067

main75552-30450-B0iGRS20#,GWS204..CBU201002-201212

SILVER ME.,1F7

main75552-30450-B1iGRS20#,GWS204..CBU201002-201212

PREMIUM SILVER PEARL,1F3

main75552-30450-B2iGRS200,201,204..ATH200904-201002

GRAY ME.,1F9

main75552-30450-C0iGRS20#,GWS204200802-201002

BLACK,202

main75552-30450-D0iGRS20#..CBU201002-201212

BLACKISH RED MC.,3R0

main75552-30450-F0iGRS20#..CBU201002-201212

SILKY GOLD M.M.,5A4

main75552-30450-G0iGRS20#,GWS204200802-201002

DK.GREEN MC.,6V4

main75552-30450-J0iGRS20#,GWS204200802-201002

DK.BLUE MC.,8S6

main75552-30450-J1iGWS204200805-201002

LIGHT BLUE MICA METALLIC,8U8

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-30110×10iGRS20#,GWS204200802-201002

main75561-30220×10iGRS20#,GWS204..CBU201002-201212

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-30110×2iGRS20#,GWS204200802-201002

main75562-30140×2iGRS20#,GWS204..CBU201002-201212

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-30060iGRS20#,GWS204..CBU201002-201212

main75707-30110iGRS20#,GWS204200802-200909

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-30070iGRS20#,GWS204200909-201002

main75708-30120iGRS20#,GWS204200802-200909

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-30490iGRS20#,GWS204200802-201002

main75710-30530iGRS20#,GWS204..CBU201112-201212

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-30490iGRS20#,GWS204200802-201002

main75720-30530iGRS20#,GWS204..CBU201112-201212

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-30370iGRS20#,GWS204200802-201002

main75730-30420iGRS20#,GWS204..CBU201112-201212

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-30420iGRS20#,GWS204200802-201002

main75740-30470iGRS20#,GWS204..CBU201112-201212

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75071-30090iGRS20#,GWS204..CBU201002-201212

main75071-30100iGRS20#,GWS204200802-200909

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75072-30090iGRS20#,GWS204200909-201002

main75072-30100iGRS20#,GWS204200802-200909

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-30140iGRS20#,GWS204200802-201002

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-30130iGRS20#,GWS204..CBU201002-201212

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-30130iGRS20#,GWS204..CBU201002-201212

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-30130iGRS20#,GWS204..CBU200802-201002

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-30290-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201109

WHITE PEARL CS.,062

main75850-30290-A2iGRS200,201,202,203..ROY..CBU200904-201002

VANILLA WHITE,067

main75850-30290-B0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

SILVER ME.,1F7

main75850-30290-B1iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

PREMIUM SILVER PEARL,1F3

main75850-30290-C0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201109

BLACK,202

main75850-30290-D0iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201109

BLACKISH RED MC.,3R0

main75850-30290-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201109

SILKY GOLD M.M.,5A4

main75850-30290-G0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

DK.GREEN MC.,6V4

main75850-30290-J0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201109

DK.BLUE MC.,8S6

main75850-30291-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

WHITE PEARL CS.,062

main75850-30291-B0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

SILVER ME.,1F7

main75850-30291-B1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

PREMIUM SILVER PEARL,1F3

main75850-30291-C0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

BLACK,202

main75850-30291-D0iGRS200,201,202,203..(ROY,ROYG)..CBU201110-201212

BLACKISH RED MC.,3R0

main75850-30291-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201110-201212

SILKY GOLD M.M.,5A4

main75850-30291-J0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

DK.BLUE MC.,8S6

main75850-30340-A0iGRS200,201,204..ATH201002-201109

WHITE PEARL CS.,062

main75850-30340-B0iGRS200,201,204,GWS204..ATH,HBD200802-201002

SILVER ME.,1F7

main75850-30340-B1iGRS200,201,204,GWS204..ATH,HBD200802-201002

PREMIUM SILVER PEARL,1F3

main75850-30340-B2iGRS200,201,204..ATH200904-201002

GRAY ME.,1F9

main75850-30340-C0iGRS200,201,204,GWS204..ATH,HBD200802-201002

BLACK,202

main75850-30340-D0iGRS200,201,204..ATH200802-201002

BLACKISH RED MC.,3R0

main75850-30340-F0iGRS200,201,204..ATH201002-201109

SILKY GOLD M.M.,5A4

main75850-30340-G0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK.GREEN MC.,6V4

main75850-30340-J0iGRS200,201,204..ATH201002-201109

DK.BLUE MC.,8S6

main75850-30341-A0iGRS200,201,204..ATH201110-201212

WHITE PEARL CS.,062

main75850-30341-B0iGRS200,201,204..ATH201110-201212

SILVER ME.,1F7

main75850-30341-B1iGRS200,201,204..ATH201110-201212

PREMIUM SILVER PEARL,1F3

main75850-30341-C0iGRS200,201,204..ATH201110-201212

BLACK,202

main75850-30341-D0iGRS200,201,204..ATH201110-201212

BLACKISH RED MC.,3R0

main75850-30341-F0iGRS200,201,204..ATH201110-201212

SILKY GOLD M.M.,5A4

main75850-30341-J0iGRS200,201,204..ATH201110-201212

DK.BLUE MC.,8S6

main75850-30290-J1supersedes 75850-30340-J1iGWS204200907-201002

75850BSCREW, NO.3

main90159-60364×2iGRS20#,GWS204..CBU201002-201212

75850CGROMMET, NO.1

main90189-04207×8iGRS20#,GWS204..CBU200802-201002

75851FGROMMET(FOR BODY ROCKER PANEL MOULDING)

main90189-06006×2iGRS20#,GWS204..CBU200802-201002

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-30280-A1iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

WHITE PEARL CS.,062

main75860-30280-A2iGRS200,201,202,203..ROY..CBU200904-201002

VANILLA WHITE,067

main75860-30280-B0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

SILVER ME.,1F7

main75860-30280-B1iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

PREMIUM SILVER PEARL,1F3

main75860-30280-C0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

BLACK,202

main75860-30280-D0iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201109

BLACKISH RED MC.,3R0

main75860-30280-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201109

SILKY GOLD M.M.,5A4

main75860-30280-G0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

DK.GREEN MC.,6V4

main75860-30280-J0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201109

DK.BLUE MC.,8S6

main75860-30281-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

WHITE PEARL CS.,062

main75860-30281-B0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

SILVER ME.,1F7

main75860-30281-B1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

PREMIUM SILVER PEARL,1F3

main75860-30281-C0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

BLACK,202

main75860-30281-D0iGRS200,201,202,203..(ROY,ROYG)..CBU201110-201212

BLACKISH RED MC.,3R0

main75860-30281-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201110-201212

SILKY GOLD M.M.,5A4

main75860-30281-J0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201110-201212

DK.BLUE MC.,8S6

main75860-30330-A0iGRS200,201,204..ATH201002-201109

WHITE PEARL CS.,062

main75860-30330-B0iGRS200,201,204,GWS204..ATH,HBD200802-201002

SILVER ME.,1F7

main75860-30330-B1iGRS200,201,204..ATH201002-201109

PREMIUM SILVER PEARL,1F3

main75860-30330-B2iGRS200,201,204..ATH200904-201002

GRAY ME.,1F9

main75860-30330-C0iGRS200,201,204..ATH201002-201109

BLACK,202

main75860-30330-D0iGRS200,201,204..ATH200802-201002

BLACKISH RED MC.,3R0

main75860-30330-F0iGRS200,201,204..ATH201002-201109

SILKY GOLD M.M.,5A4

main75860-30330-G0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK.GREEN MC.,6V4

main75860-30330-J0iGRS200,201,204..ATH201002-201109

DK.BLUE MC.,8S6

main75860-30331-A0iGRS200,201,204..ATH201110-201212

WHITE PEARL CS.,062

main75860-30331-B0iGRS200,201,204..ATH201110-201212

SILVER ME.,1F7

main75860-30331-B1iGRS200,201,204..ATH201110-201212

PREMIUM SILVER PEARL,1F3

main75860-30331-C0iGRS200,201,204..ATH201110-201212

BLACK,202

main75860-30331-D0iGRS200,201,204..ATH201110-201212

BLACKISH RED MC.,3R0

main75860-30331-F0iGRS200,201,204..ATH201110-201212

SILKY GOLD M.M.,5A4

main75860-30331-J0iGRS200,201,204..ATH201110-201212

DK.BLUE MC.,8S6

main75860-30280-J1supersedes 75860-30330-J1iGWS204200907-201002

75861APROTECTOR, ROCKER PANEL MOULDING, NO.1

main75866-30050×4iGRS20#,GWS204..CBU200802-201002

75862APROTECTOR, ROCKER PANEL MOULDING, NO.2

main75866-30060×2iGRS20#,GWS204..CBU200802-201002

75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3

main75866-30070×2iGRS20#,GWS204..CBU200802-201002

75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4

main75861-30110×4iGRS20#,GWS204..CBU200802-201002

75867ACLIP, ROCKER PANEL MOULDING

main75867-30120×16iGRS20#,GWS204..CBU200802-201002

main75867-33050×16iGRS20#,GWS204..CBU201110-201212

75867CCLIP, ROCKER PANEL MOULDING

main75867-30140×4iGRS20#,GWS204..CBU200802-201002

75868BCLIP, ROCKER PANEL MOULDING, NO.2

main75867-33030×20iGRS20#,GWS204..CBU200802-201002

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-30380iGRS20#,GWS204..CBU200802-201002

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-30380iGRS20#,GWS204..CBU200802-201002

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-30380iGRS20#,GWS204..CBU200802-201002

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-30380iGRS20#,GWS204..CBU200802-201002

75875ACLIP, FRONT FENDER WHEEL OPENING MOULDING

main75875-50010×2iGRS20#,GWS204..CBU200802-201002

9015960364

main90159-60364

9016240035

main90162-40035

9016440096

main90164-40096

9018904059

main90189-04059

9018904231

main90189-04231

9018906006

main90189-06006

9026904051

main90269-04051

46 parts on this diagram · 1 diagram in section
